Knick Stratos Multi E401N - Page 171

Stratos Multi E401N
171

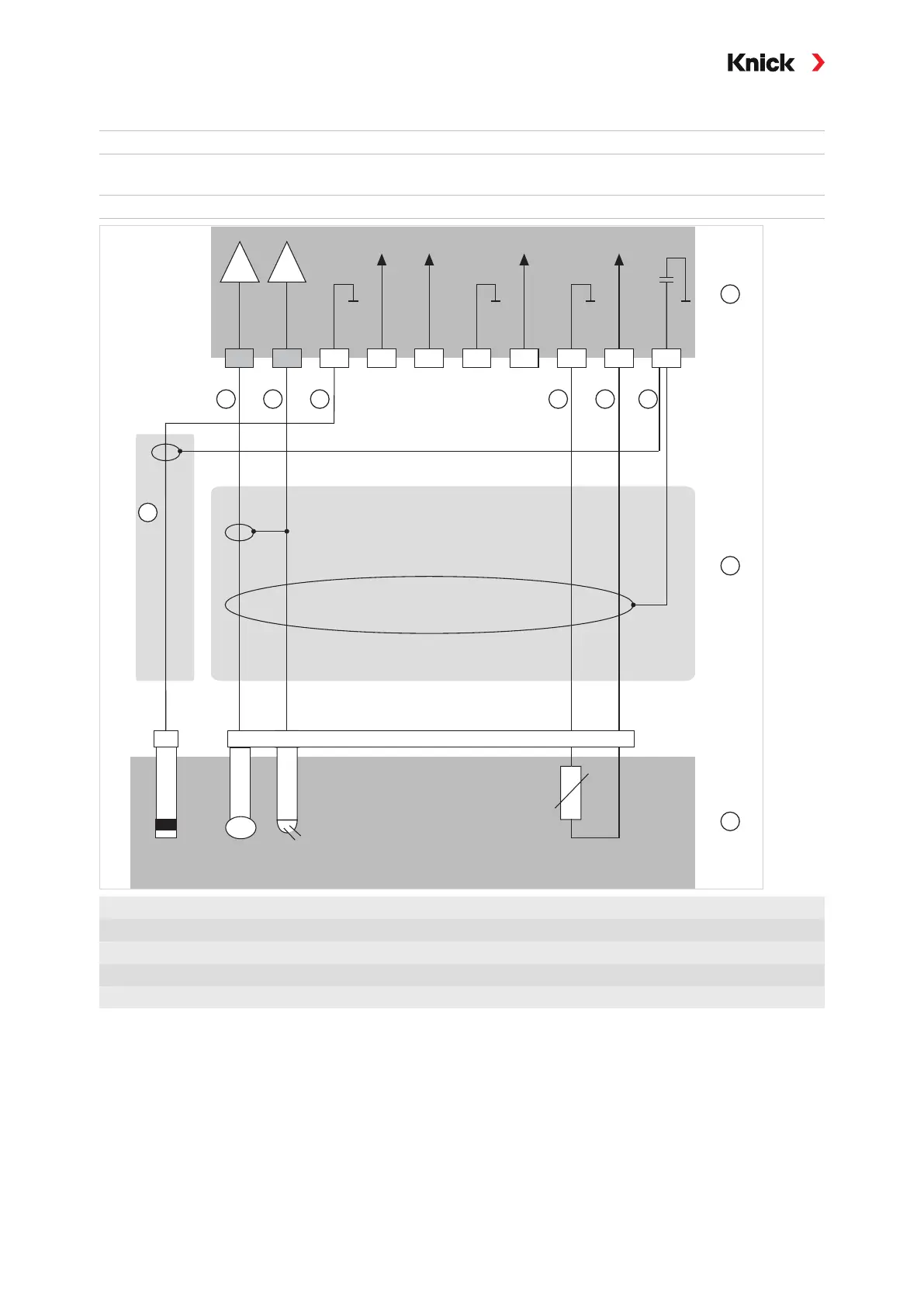

Example 4, pH Analog
Measuring task: pH/ORP, temp., glass impedance, reference impedance
Sensors (example): pH sensor e.g., SE555X/1-NVPN,
cable CA/VP6ST-003A
Temperature probe: Integrated
B C D E F G HA I K
meas. el ref. el. SG +3 V –3 V ISM (GND) ISM (Data) RTD (GND) RTD shield
5 64
8
9
2 3
7
1
10
1
Equipotential bonding electrode ZU0073
6
White
2
Core, clear
7
Shield, yellow/green
3
Shield, red
8
pH Module
4
Core
9
Cables
5
Green
10
Sensors
