AKD2G-S Installation, Safety 1 | 8 Electrical Installation

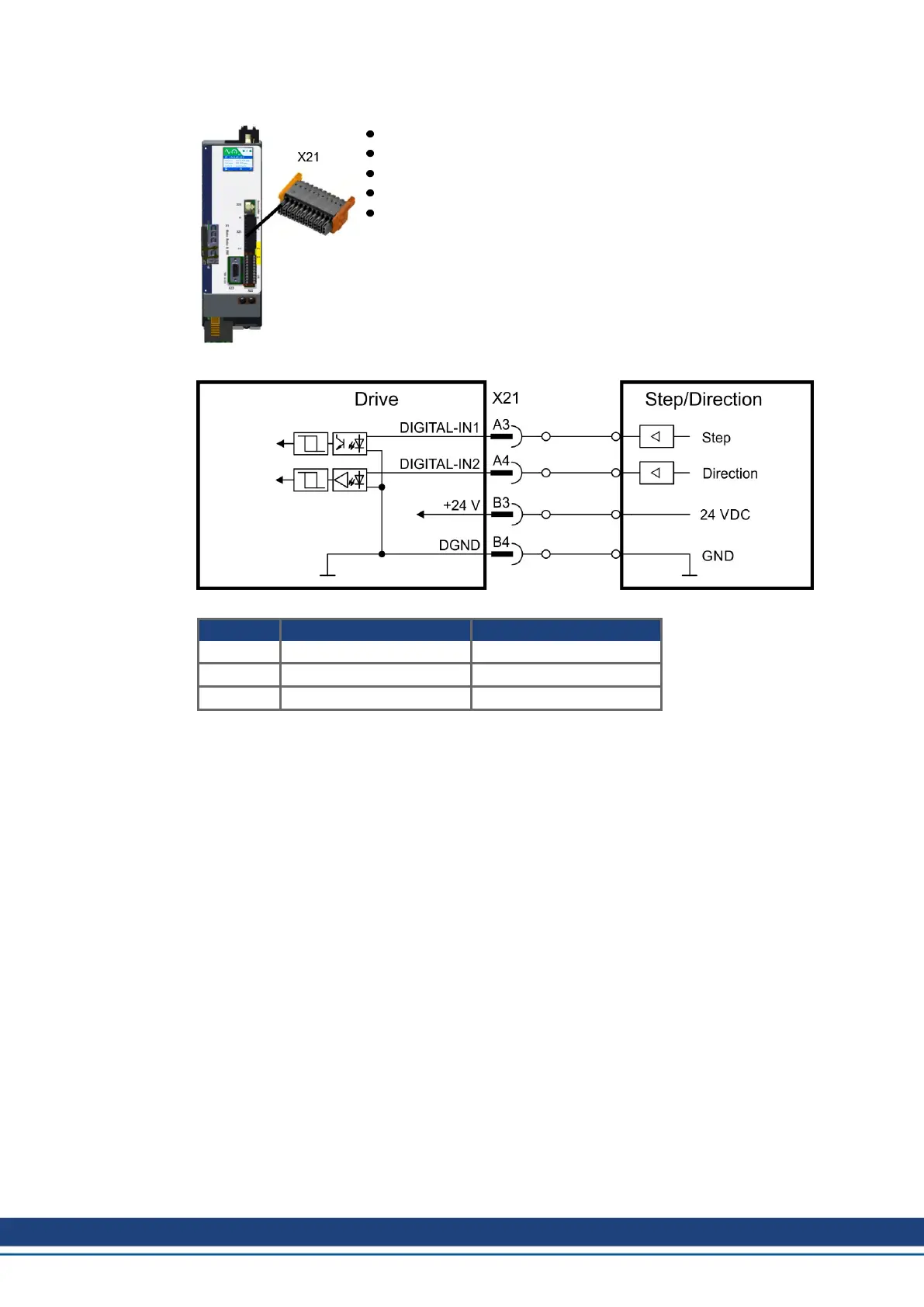

8.9.5.2 Feedback Connector X21

2 x 11 pins (left connector A, right connector B), pitch 3.5 mm

Fast input, isolated, sink, type EN 61131-2 type 1

Input for commutation or position feedback.

Input for Electronic Gearing, (➜ # 90)

Mating connector data see (➜ # 51).

Wiring example

X21 Pin Step/Direction CW/CCW

A3 Step CW

A4 Direction CCW

B4 Common (DGND) Common (DGND)

86 Kollmorgen | kdn.kollmorgen.com | Beta, December 2018
