AKD2G-S Installation, Safety 1 | 8 Electrical Installation
8.4.3 Shielding connection to the drive
You can connect cable shielding directly to the drive by using grounding plates, shield con-
nection clamps, and a motor connector with strain relief and grounding plate.

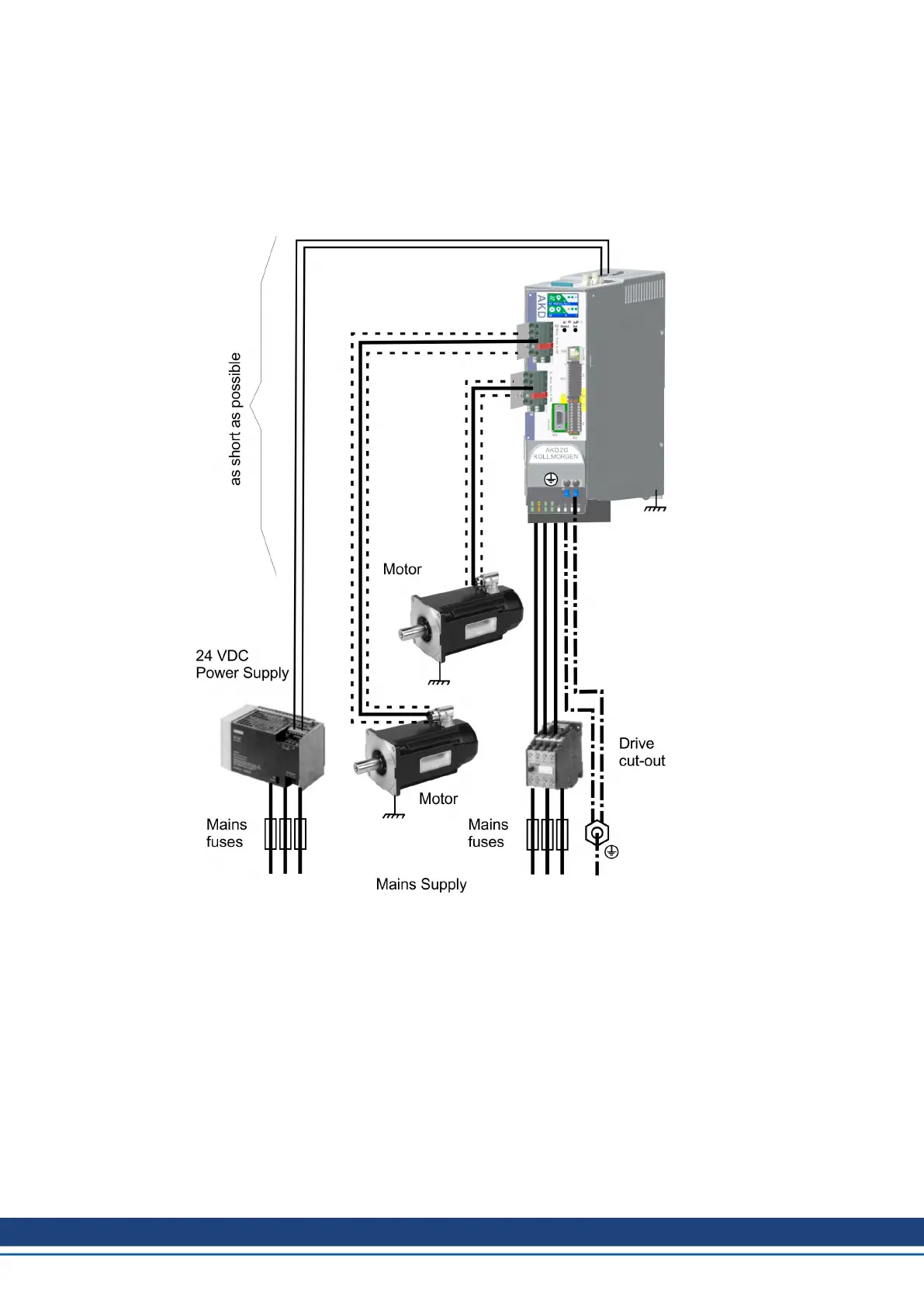

8.4.3.1 Shielding Concept
Example with AKD2G-Sxx--7Vxx, dual-axis.
