AKD2G-S Installation, Safety 1 | 8 Electrical Installation
8.4.2 Shielding with external shielding busbar
For best practice use of shielded cables Kollmorgen recommends a star point shield con-
nection, for example, with a shielding busbar.
8.4.2.1 Shielding Concept

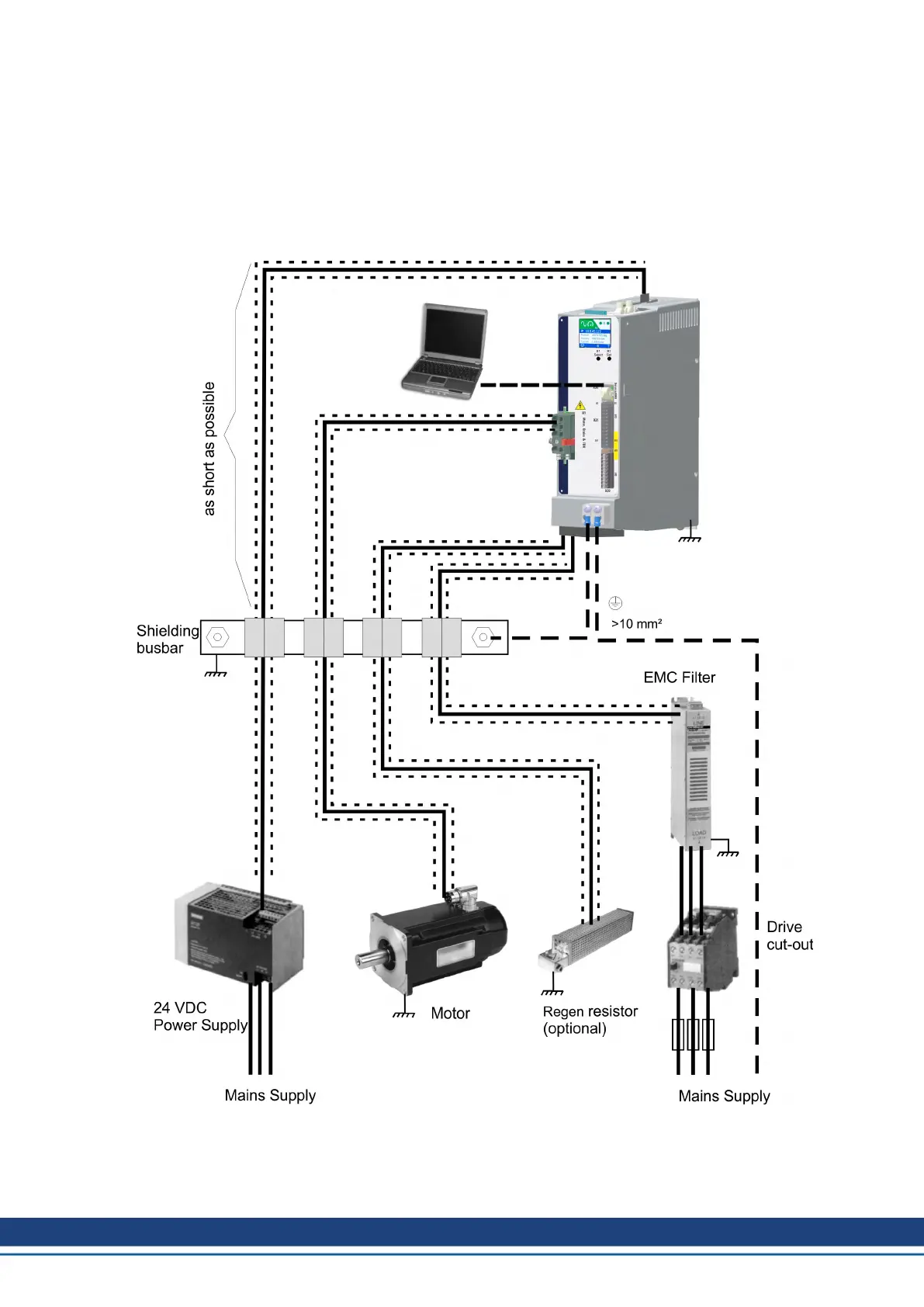

Example with AKD2G-Sxx--6Vxx, EMC filter and external regen resistor.
