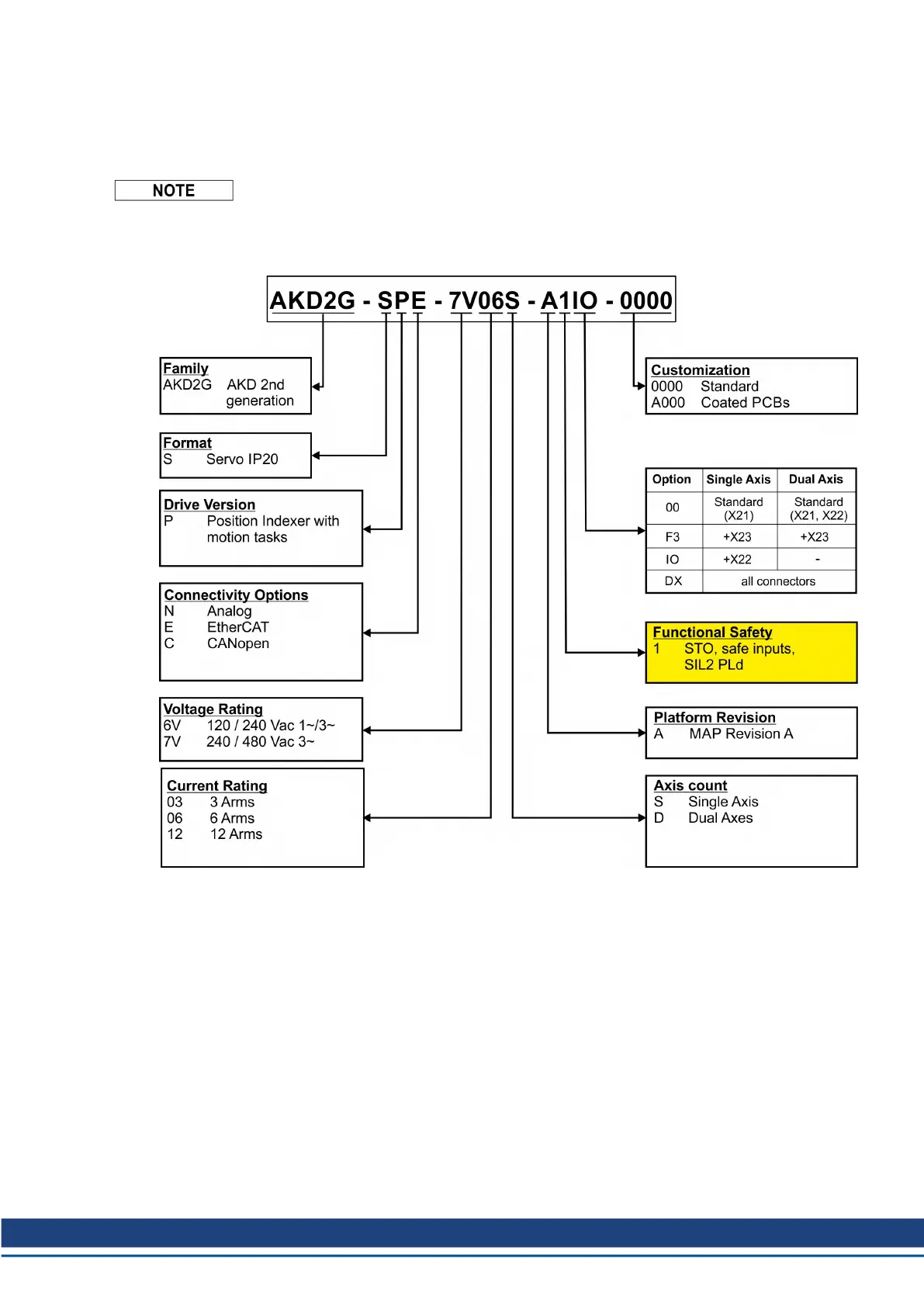

5.3 Part Number Scheme
Use the part number scheme for product identification only, not for the order process,
because not all combinations of features are possible.
Mating connectors are not included in the package of a standard drive.
Mating connectors are included when the drive is ordered with accessories (append “-A” to
the model number).
Example AKD2G-SPE-7V06S-A1IO-0000
AKD2G IP20 housing, position indexer, EtherCAT, 240 V to 480 V mains supply, 6 A rated
current, single axis, Hardware Revision A, dual channel STO SIL2 PLd, with additional I/O
connector X22, uncoated, no mating connectors.
Example AKD2G-SPE-6V03D-A1DX-A000-A
AKD2G IP20 housing, position indexer, EtherCAT, 120 V to 240 V mains supply, 2 x 3 A
rated current, dual axis, Hardware Revision A, dual channel STO SIL2 PLd, with all possible
connector (basis + X23), PCBs coated, with mating connectors.
AKD2G-S Installation, Safety 1 | 5 Package
Kollmorgen | kdn.kollmorgen.com | Beta, December 2018 29
