8.9.5.1 Feedback Connector X1, X2
4 pin, pitch 7.62 mm plus 2x2 pin pitch 3.81 mm
Input for commutation feedback: SFD3, DSL, SFA

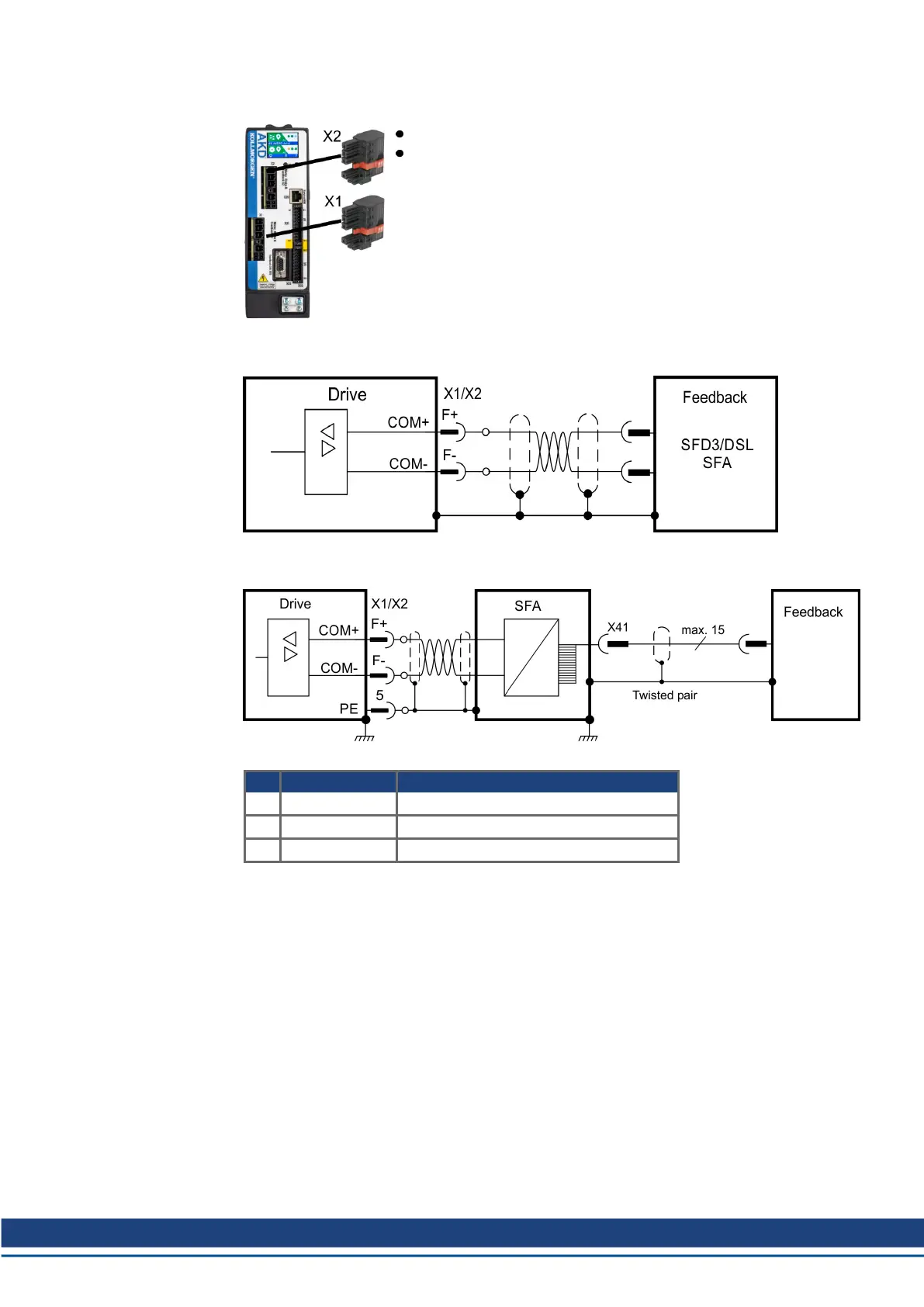

Wiring example SFD3 or HIPERFACE DSL
Wiring example conventional Feedback types with SFA
Pin Signal Description
F+ COM+ SFD3 +, HIPERFACE DSL +, SFA +
F- COM- SFD3 -, HIPERFACE DSL -, SFA -
5 PE Cable shield (PE)
AKD2G-S Installation, Safety 1 | 8 Electrical Installation
