8.6.1.2 Wiring examples mains power supply

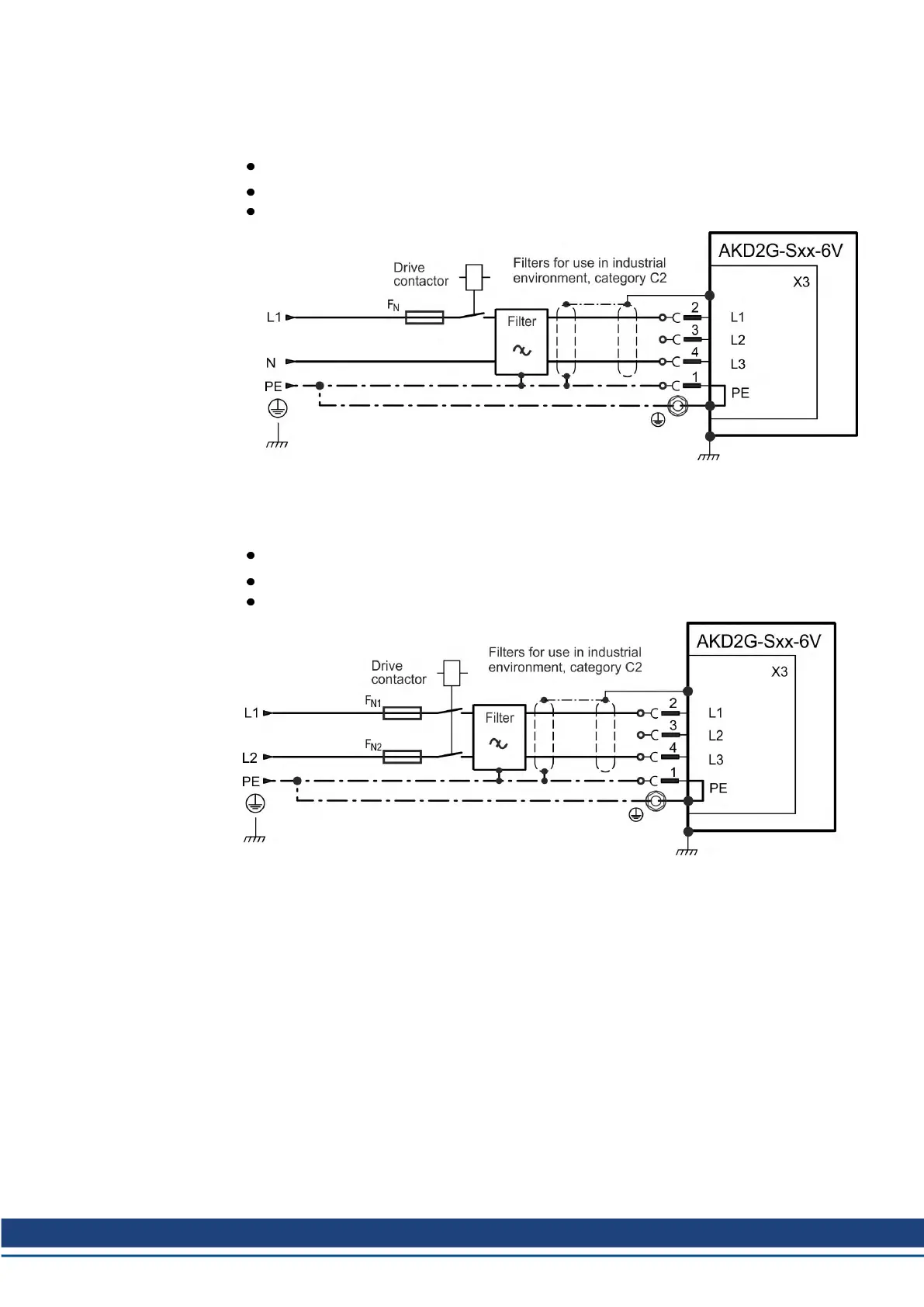

One phase AC mains (AKD2G-Sxx-6V)
Directly to one phase supply network (120 V
-10%
to 240 V
+10%
) with neutral line
Deactivate phase loss detection.
Filtering to be provided by the user.
Two phases AC mains (AKD2G-Sxx-6V)
Directly to two-phase supply network (120 V
-10%
to 240 V
+10%
) without neutral line
Deactivate phase loss detection.
Filtering to be provided by the user.
