bizhub C350 Field Service Ver.2.0 April 2004 Other
2-79
II Maintenance

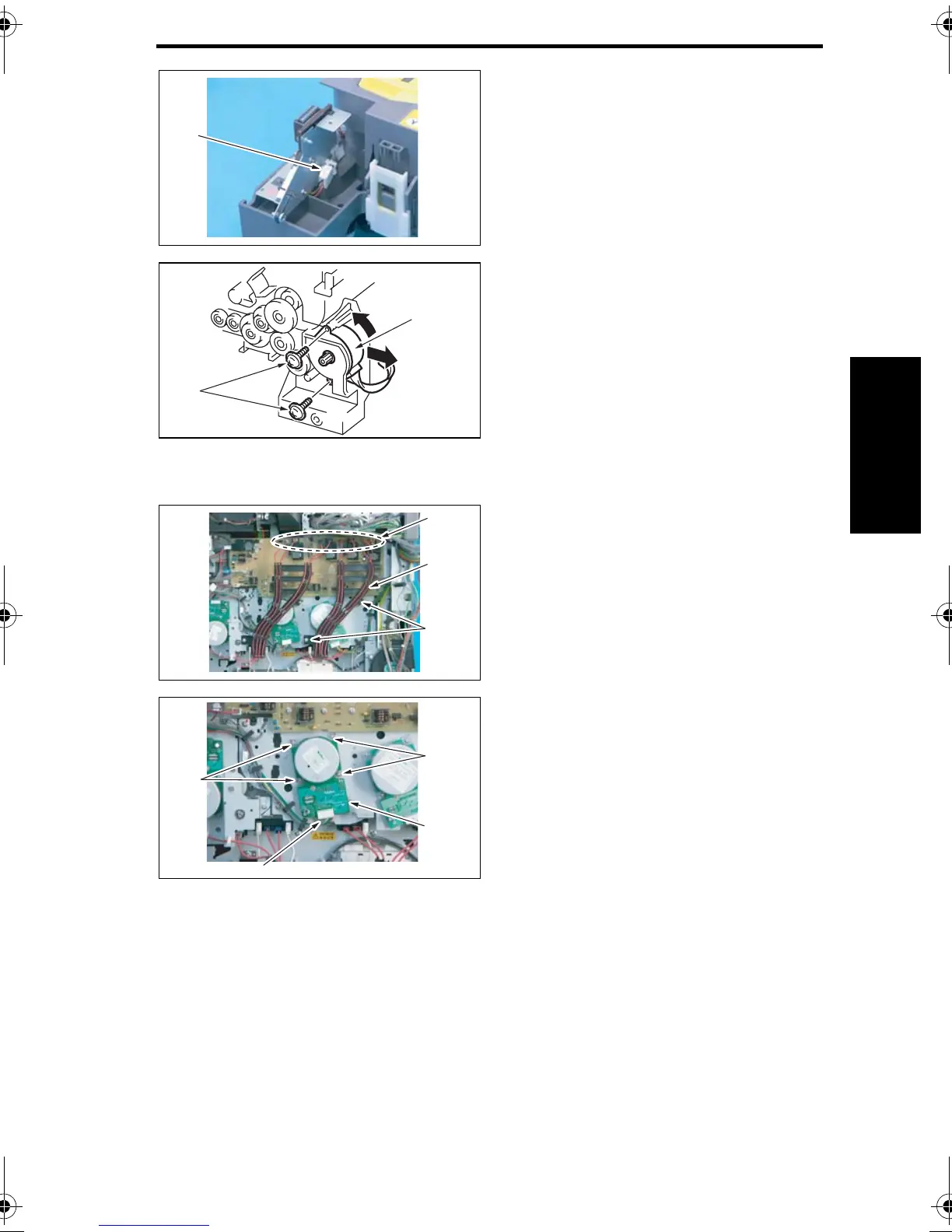

3. Remove the Connector [3].
4. Remove two screws [4]. Then, turn
the Toner Replenishing Motor Y/M
[5] counterclockwise and take it off
the machine.
4.3.39 Color PC Drum Motor
1. Remove the PWB Box.
☞ 2-76
2. Remove eight Connectors [1] on the
High Voltage Unit/1.
3. Remove two Screws [2], and remove
the Harness Holder [3].
4. Remove four Screws (Red-painted)
[4] and Connector [5], and remove
the Color PC Drum Motor [6].
4036fs2105c0
[3]
4036fs2530c1
[5]
[4]
4036fs2107c1
[3]
[1]
[2]
4036fs2106c2
[4]
[4]
[5]
[6]
FS2.fm Page 79 Tuesday, April 27, 2004 3:14 PM
