Mechanical adjustment bizhub C350 Field Service Ver.1.0 Mar. 2004
3-4
III Adjusting/Setting
3. Mechanical adjustment
3.1 Adjustment of the stapling position
• The stapling position is adjusted by aligning the stapling position to the folding position.
• This adjustment is made in the Tech. Rep. Mode of the main unit. Since the adjustment is
made in increments of 1 mm, this adjustment is useful for eliminating a displacement of
1mm or more.
• For the effective adjustment of a minimal displacement smaller than 1 mm, refer to
“Board switch”.
Adjustable range: - 7 to + 7 mm (Increment: 1 mm)
3.1.1 DF-601-equipped machine
1. Set A3 or 11 x 17 to the Feed Tray.
2. Select the functions as follows: Orig Copy
→4in1/Booklet→Booklet→Bind.
3. Set five sheets of A3 or 11 x 17 original (blank paper acceptable) in the Original Tray.
• These five sheets are used for adjustment to minimize variation.
4. Press the “Start” Key.

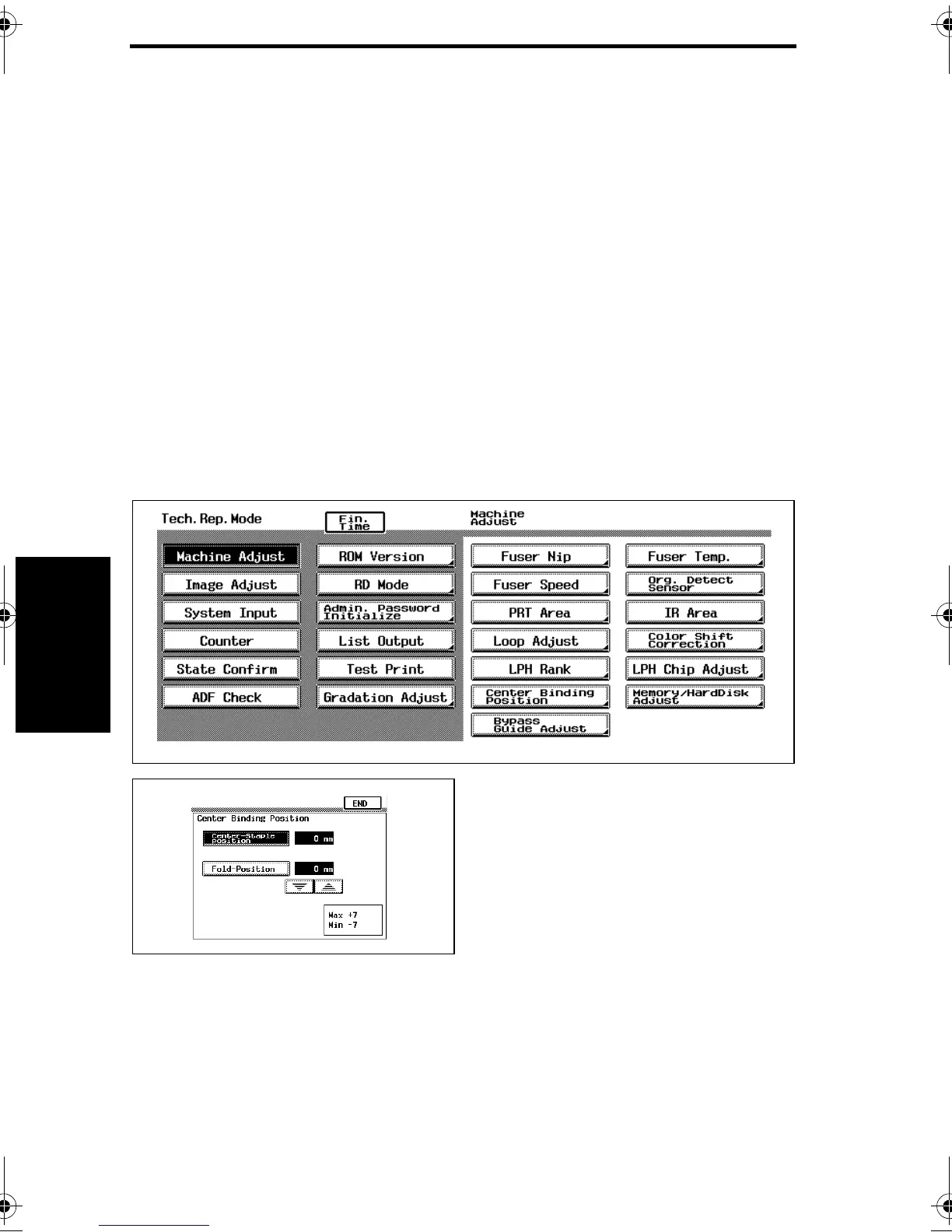

5. Set the mode to the Tech. Rep. Mode.
6. Touch “Machine Adjust”.
7. Touch “Center Binding Position”.
8. Touch “Center-Staple Position”.
9. Renew the center folding of the finished copies.
Take the top surface of the finished copies as “A”, and the under surface as “B”.
10. Check the deviation of the stapling position from the newly folded position.
NOTE
• In checking the deviation, refer not to the folded position by the Finisher but to the
newly folded position.
▲
4583fs3523e0
4583fs3524e0
