bizhub C350 Field Service Ver.2.0 April 2004 Other
2-85
II Maintenance

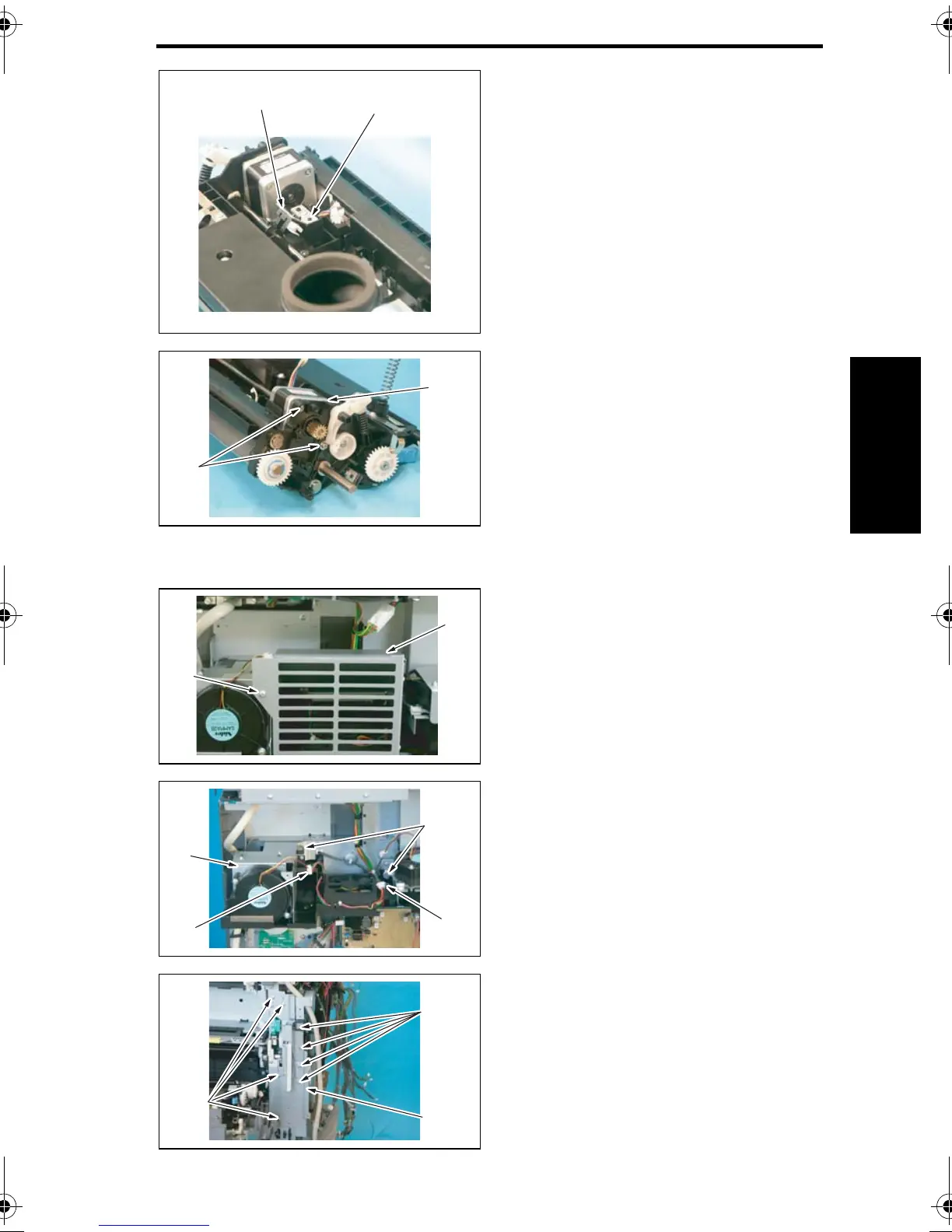

9. Remove the Screw [16], and remove
the Sensor Assy [17].
10. Remove two Screws [18], and
remove the Intermediate Transport
Motor [19].
NOTES
• Remove the Intermediate Transport
Motor while its Harness is well fit
with the groove.
• Use care on the harness not to be
bitten.
4.3.45 Fusing Pressure Roller Pressure/Retraction Motor
1. Remove the PWB Box.
☞ 2-76
2. Remove the Screw [1], and remove
the Fan Assy Protective Cover [2].
3. Remove two Shoulder screws [3]
and two Connectors [4], and remove
the Fan Assy [5].
4. Open the Right Door.
5. Remove the Fusing Unit.
☞ 2-29
6. Remove the Wiring Cover.
☞ See the procedure 2 of 2-11
“Replacing of Paper Take-up Roller”.
7. Remove eight Screws [6], and
remove the Rear Handle Assy [7].
4036fs2119c1
[16]
[17]
4036fs2120c0
[19]
[18]
[1]
[2]
4036fs2102c2
[3]
[4]
[4]
[5]
4036fs2121c1
[6]
[6]
[7]
FS2.fm Page 85 Tuesday, April 27, 2004 3:14 PM
