bizhub C350 Field Service Ver.2.0 April 2004 Periodical check
2-15
II Maintenance

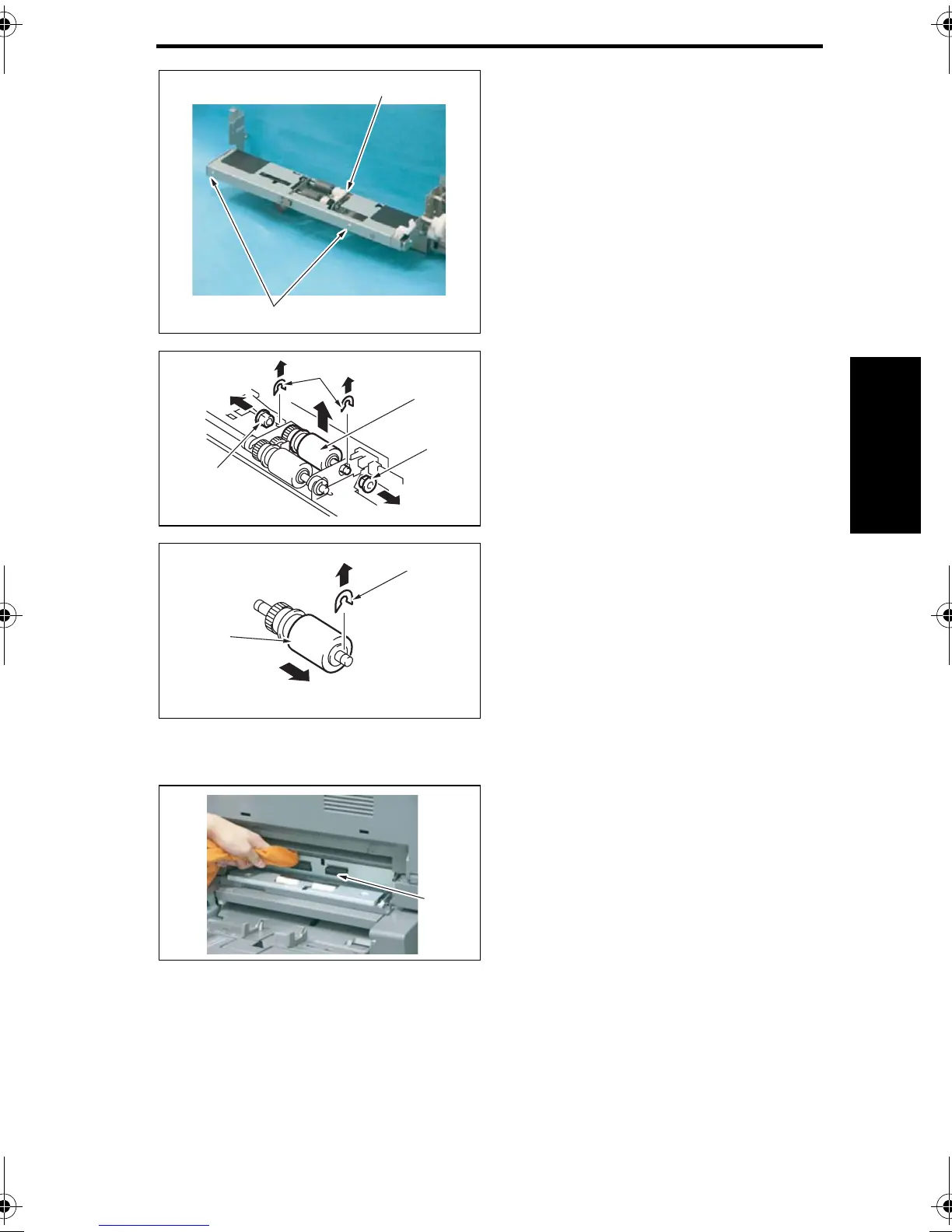

5. Remove two Screws [8] and Paper
Take-up Roller cover [9].
6. Remove two C-rings [10] and two
Bushings [11], and remove the Pick-
up Roller Assy [12].
7. Snap off the C-ring [13], and remove
the Pick-up Roller [14].
1.5.6 Transport Roller
A. Cleaning Procedure
1. Open the Vertical transport door.
2. Using a soft cloth dampened with
alcohol, wipe the Transport Roller
[1].
4036fs2026c1
[8]
[9]
4036fs2597c1
[10]
[11]
[11]
[12]
4036fs2598c0
[13]
[14]
4036fs2033c1
[1]
