I/O check bizhub C350 Field Service Ver.1.0 Mar. 2004
3-2
III Adjusting/Setting
2.2 I/O check list

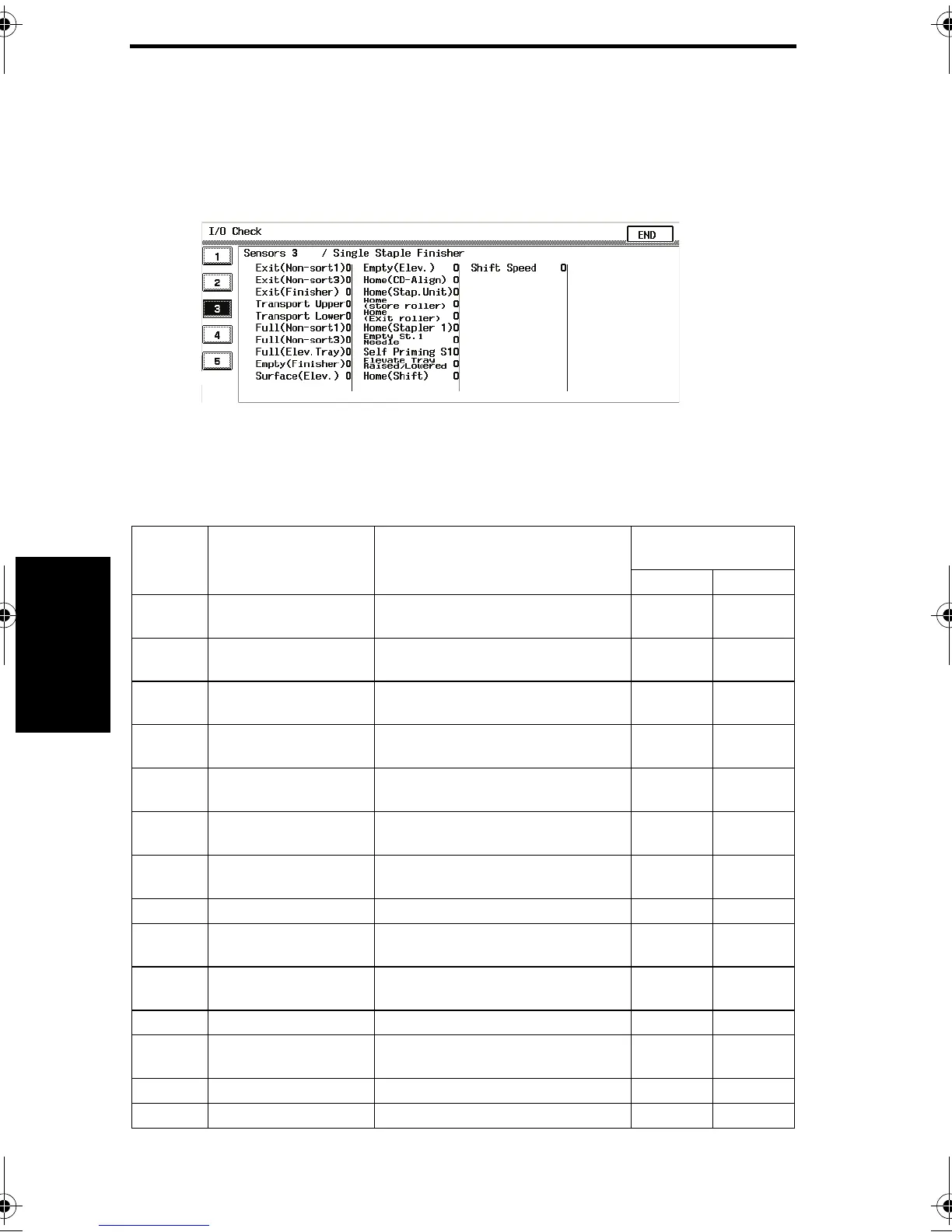

2.2.1 I/O check screen
• This is only typical screen which may be different from what are shown on each individ-
ual main unit.
2.2.2 I/O check list
A. Sensor monitor 3
4036fs3028e0
Symbol Panel display Part/Signal name
Operation characteris-
tics/Panel display
10
PC1-FN Exit
(Non-sort1)
1st Tray Exit Sensor Paper
present
Paper not
present
PC19-FN Exit
(Non-sort3)
Job Tray Exit Sensor Paper
present
Paper not
present
PC3-FN Exit
(Finisher)
Storage Sensor Paper
present
Paper not
present
PC4-FN Transport Upper Upper Entrance Sensor Paper
present
Paper not
present
PC2-FN Transport Lower Lower Entrance Sensor Paper
present
Paper not
present
PC6-FN Full
(Non-sort1)
1st Tray Full Sensor
Blocked Unblocked
PC20-FN Full
(Non-sort3)
job Tray Full Sensor Paper
present
Paper not
present
PC7-FN Full (Elev. Tray) Elevator Tray Full Sensor Blocked Unblocked
PC5-FN Empty
(Finisher)
Finisher Tray Paper Sensor Paper
present
Paper not
present
PWB-D
FN
Surface (Elev.) Elevator Tray Upper Limit Sensor PQ Paper
present
Paper not
present
PC8-FN Empty (Elev.) Elevator Tray Paper Sensor Blocked Unblocked
PC9-FN Home
(CD-Align)
CD Aligning Home Position Sensor
Blocked Unblocked
PC14-FN Home (Stap. Unit) Staple Home Position Sensor Blocked Unblocked
PC12-FN Home (store roller) Storage Roller Home Position Sensor Blocked Unblocked
