bizhub C350 Field Service Ver.1.0 Mar. 2004 Mechanical adjustment
3-3
III Adjusting/Setting
3. Mechanical adjustment
3.1 Adjusting the paper reference position
NOTE
• Make this adjustment after any of the following procedures has been performed.
When the PH Unit has been replaced.
When the image on the print is offset in the FD direction.
When a faint image occurs on the leading edge of the image.

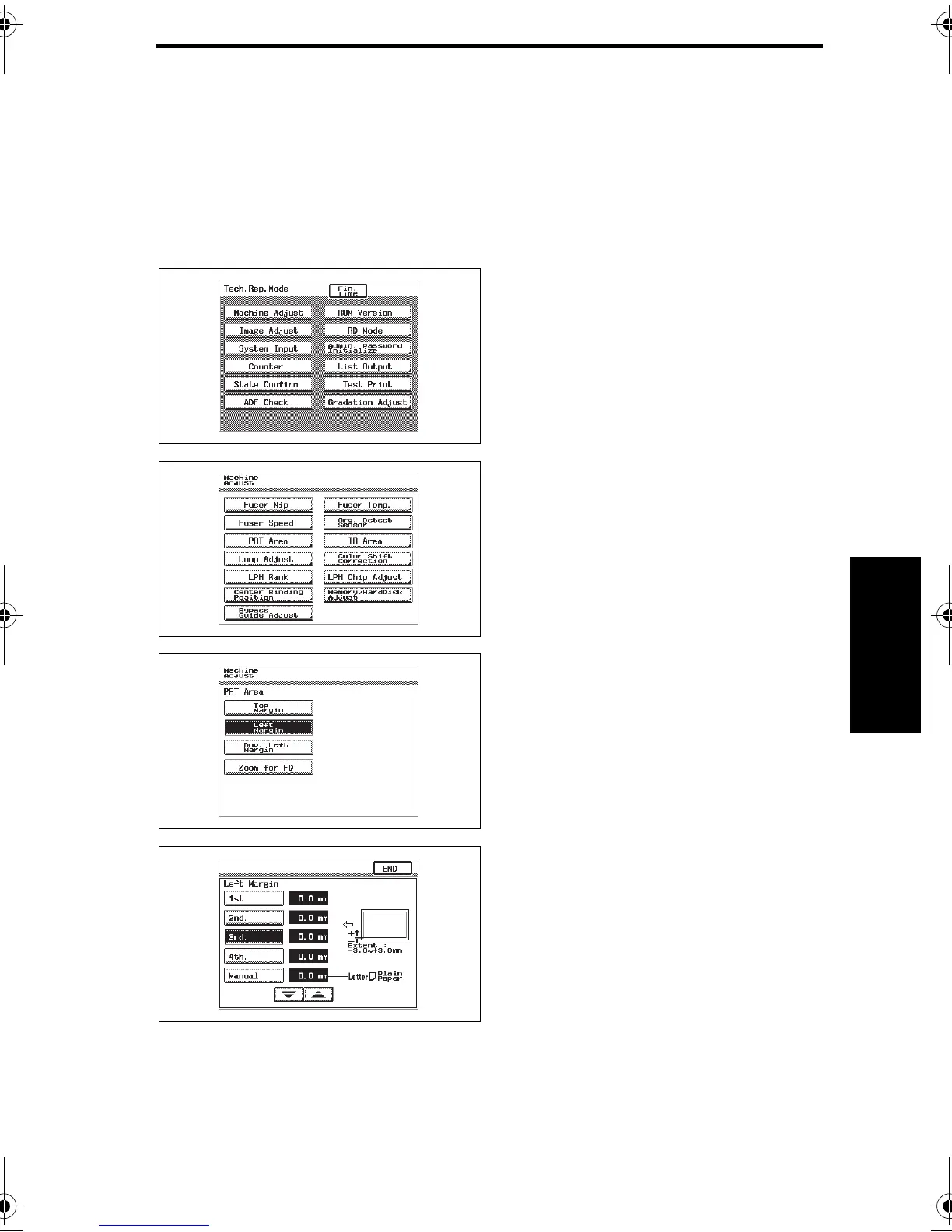

1. Display Tech. Rep. Mode.
☞ For details of how to display the
Tech. Rep. Mode screen, see the
Adjustment/Setting of the main unit
service manual.
2. Touch “Machine Adjust”.
3. Touch “PRT Area”.
4. Touch “Left Margin”.
5. Touch “3rd” and then press the
“Start” key.
6. A test print will be produced.
4348fs3603e0
4348fs3604e0
4348fs3605e0
4348fs3510e0
C350_FS_E.book 3 ページ ２００４年３月１１日 木曜日 午後５時６分
To Next Page
