Konica Minolta bizhub C350 Service Manual

Other bizhub C350 Field Service Ver. 2.0 April 2004
2-88
II Maintenance

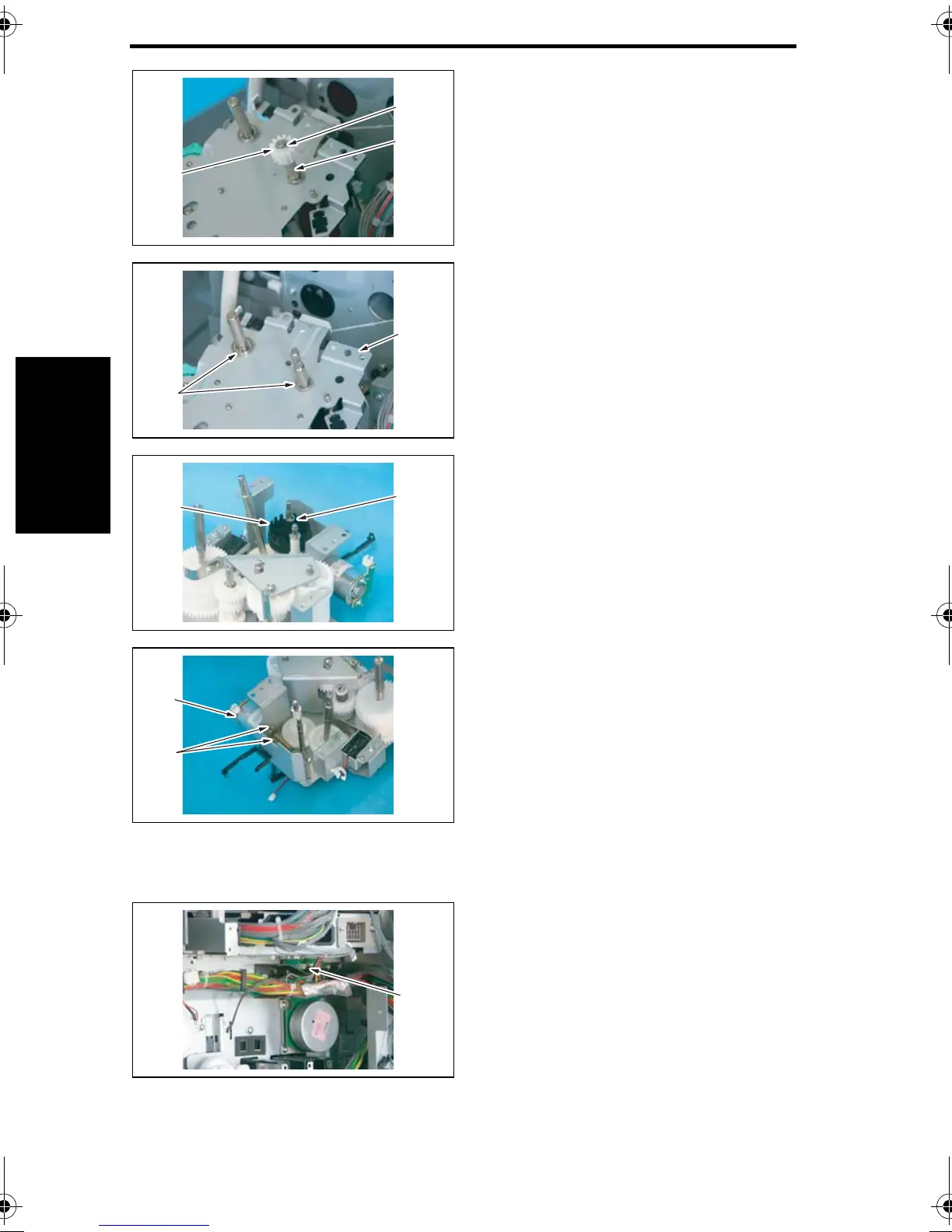

16. Remove the E-ring [19] and Shaft
[20], and remove the Gear [21].
17. Remove two E-rings [22], and
remove the Cover [23].
18. Remove the E-ring [24], and remove
the Gear [25].
19. Remove the two Screws [26], and
remove the Fusing Pressure Roller
Pressure/Retraction Motor [27].
4.3.46 Cleaning Brush Motor
1. Remove the High Voltage Unit/1
mounting plate.
☞ See the procedures 1 to 4 of 2-82
“1st Image Transfer Pressure/
Retraction Motor”.
2. Remove the Connector [1].
4036fs2130c1
[19]
[20]
[21]
4036fs2131c1
[22]
[23]
4036fs2132c1
[24]
[25]
4036fs2133c1
[26]
[27]
4036fs2134c0
[1]
FS2.fm Page 88 Tuesday, April 27, 2004 3:14 PM
