Periodical check bizhub C350 Field Service Ver.1.0 Mar. 2004
2-2
II Maintenance

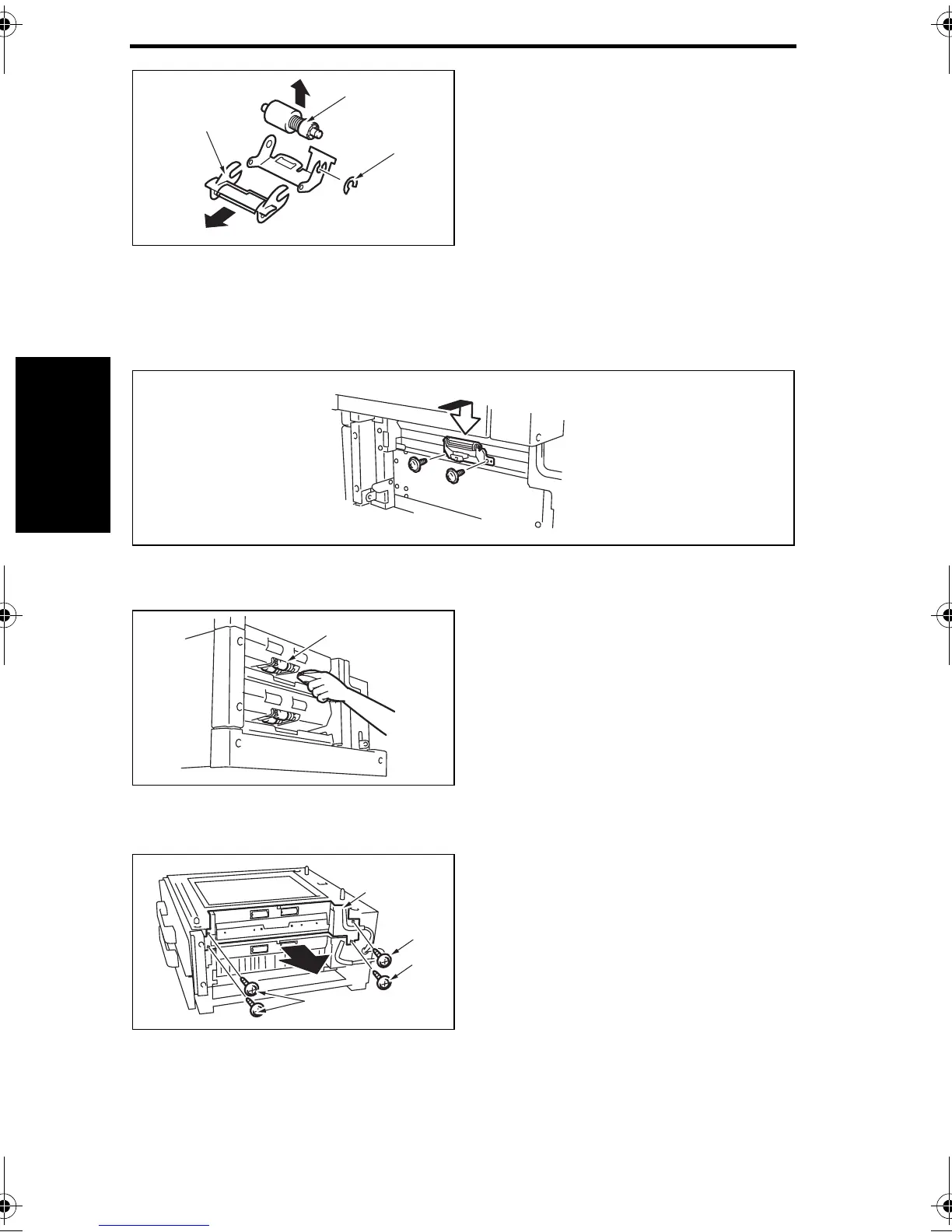

3. Remove the C-ring [9], the Guide
[10], and remove the Separation
Roller Assy [11].
4. Repeat steps 1 to 3 similarly for the
4th Drawer.
NOTES
• Install the Separation Roller Assy while pressing the holder down so that it aligns
to the metal bracket of the copier.
• Make sure that the Separation Roller Assy is not tilted to the right or left when
installed.
1.1.2 Paper Take-up Roller
A. Cleaning procedure
1. Remove the Tray3.(Remove the
Tray4 from 4th row.)
2. Remove the Paper Separation Roller
Mounting Bracket Assy.
☞ 2-1
3. Using a soft cloth dampened with
alcohol, wipe the Paper Take-up
Roller [1] clean of dirt.
4. Repeat steps 1 to 3 similarly for the
4th Drawer.
B. Replacing procedure
1. Remove the Rear Right Cover.
(Remove the Right Lower Cover for
4th row.)
☞ 2-8
2. Remove the Tray3.(Remove the
Tray4 from 4th row.)
3. Remove the Paper Separation Roller
Mounting Bracket Assy.
☞ 2-1
4. Remove four screws [2] and remove
the Paper Take-up Unit [3].
4348fs2615c0
[9]
[10]
[11]
4348fs2623c0
4348fs2601c0
[1]
4348fs2603c0
[2]
[3]
[2]
[2]
C350_FS_E.book 2 ページ ２００４年３月１１日 木曜日 午後５時６分
