bizhub C350 Field Service Ver.2.0 April 2004 Periodical check
2-9
II Maintenance

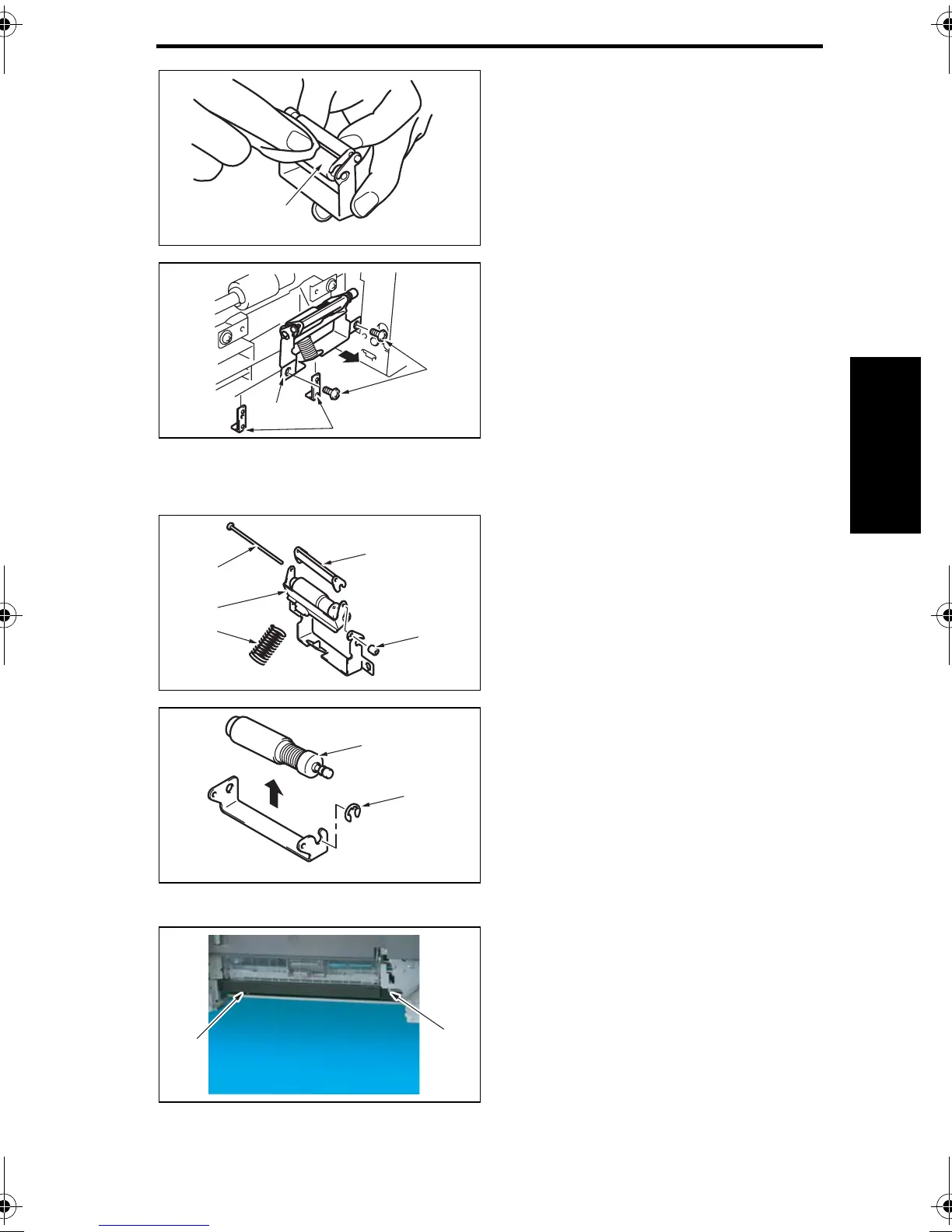

3. Using a soft cloth dampened with
alcohol, wipe the Separation Roller
[3] clean of dirt.
B. Replacing Procedure
1. Slide out the Tray 1.
2. Remove two screws [1] and the Sep-
aration Roller mounting bracket Assy
[2] and two reinforcement plates [3].
NOTES
• Receive by hand the reinforcement
plate that will come off position when
the screws are removed.
• When reinstalling the reinforcement
plate, make sure that it is doweled into
position.
3. Take off the rubber stopper [4], shaft
[5], spring [6], and guide plate [7] to
remove the Paper Separation Roller
fixing bracket Assy [8].
4. Snap off the E-ring [9] and the Paper
Separation Roller Assy [10].
5. To reinstall, reverse the order of
removal.
6. Select “Tech. Rep. Mode”
→
“Counter”
→ “Life” and clear the
count of “1st.”
1.5.3 Separation Roller 2
A. Cleaning Procedure
1. Slide out the Tray 2.
☞ 2-59
2. Remove the Multi Bypass unit.
3. Remove the Screw [1], and the Rein-
forcement plate [2].
4036fs2014c1
[3]
4036fs2015c1
[3]
[2]
[1]
4036fs2016c1
[4]
[8]
[7]
[5]
[6]
4036fs2017c0
[9]
[10]
4036fs2018c0
[1]
[2]
FS2.fm Page 9 Tuesday, April 27, 2004 3:14 PM
