Periodical check bizhub C350 Field Service Ver.1.0 Mar. 2004
2-2
II Maintenance

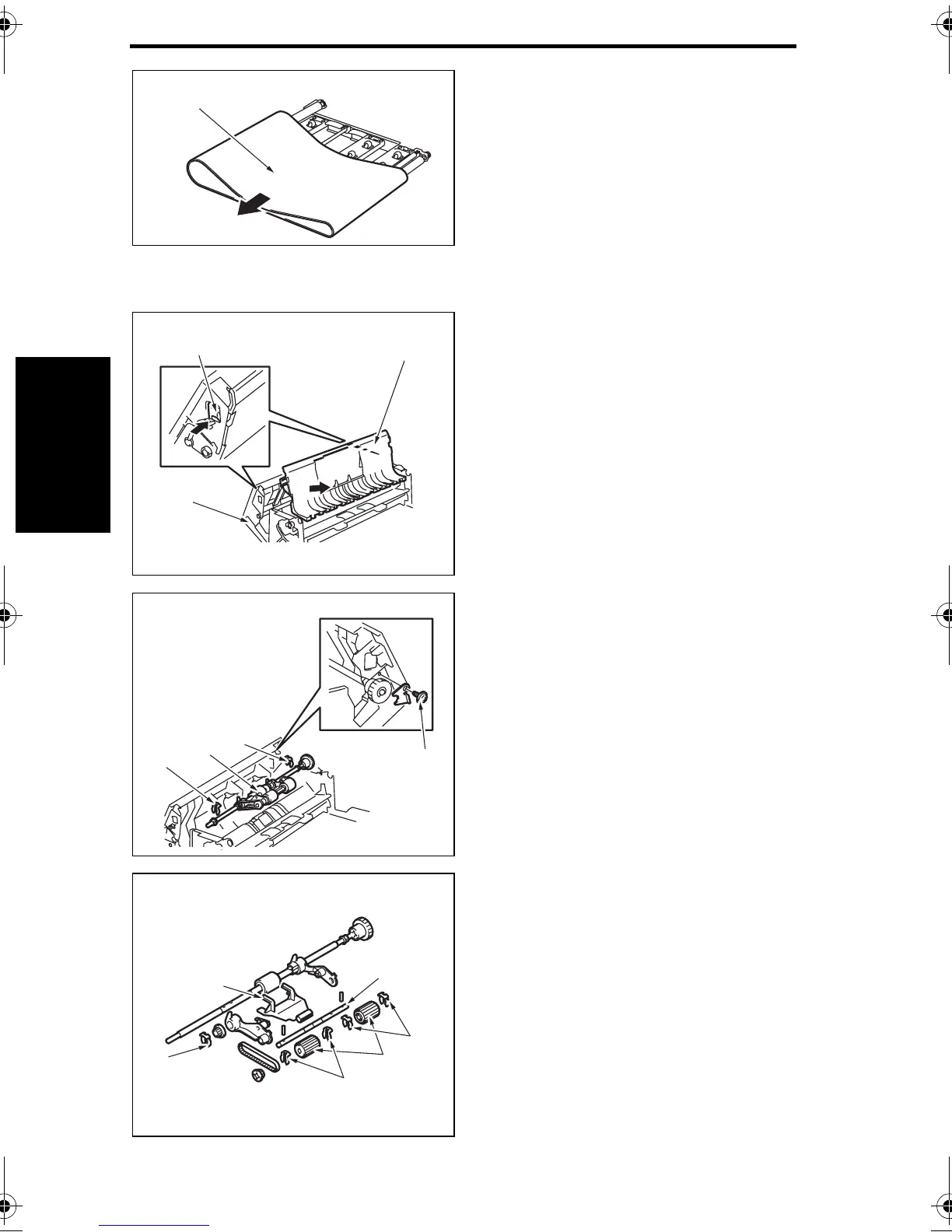

5. Remove the Transport Belt [7].
1.1.2 Pick-up Roller / Paper Take-up Roller
A. Replacing procedure
1. Open the Paper Take-up Section
Cover [1], press inward and unlock
the locking claws [2] at both ends of
the Paper Take-up Section Guide
(the Inner Cover), and remove the
Paper Take-up Section Guide [3].
2. Remove the screw [4] (on the rear
side) of the Pick-up/Paper Take-up
Roller Assy shaft positioning plate
and two C-clips [5] (at both ends) of
the Pick-up/Paper Take-up Roller
Assy shaft, and remove the Pick-up/
Paper Take-up Roller Assy [6].
3. Remove four C-clips [7] of the Pick-
up Roller and the gear-fixing C-clip
[8] (black) of the Pick-up/Paper Take-
up Roller connected Timing Belt, and
remove the Pick-up/Paper Take-up
Roller connecting section [9] from
the shaft [10].
4. Remove the Pick-up Roller [11].
4582fs2505c0
[7]
4582fs2506c0
[3]
[2]
[1]
4582fs2507c0
[4]
[5]
[5]
[6]
4582fs2508c0
[11]
[9]
[10]
[8]
[7]
[7]
C350_FS_E.book 2 ページ ２００４年３月１１日 木曜日 午後５時６分
