Mechanical adjustment bizhub C350 Field Service Ver.1.0 Mar. 2004
3-6
III Adjusting/Setting
14. Repeat the adjustment until the reference line falls within the specified range.
15. Tighten the adjustment screw.

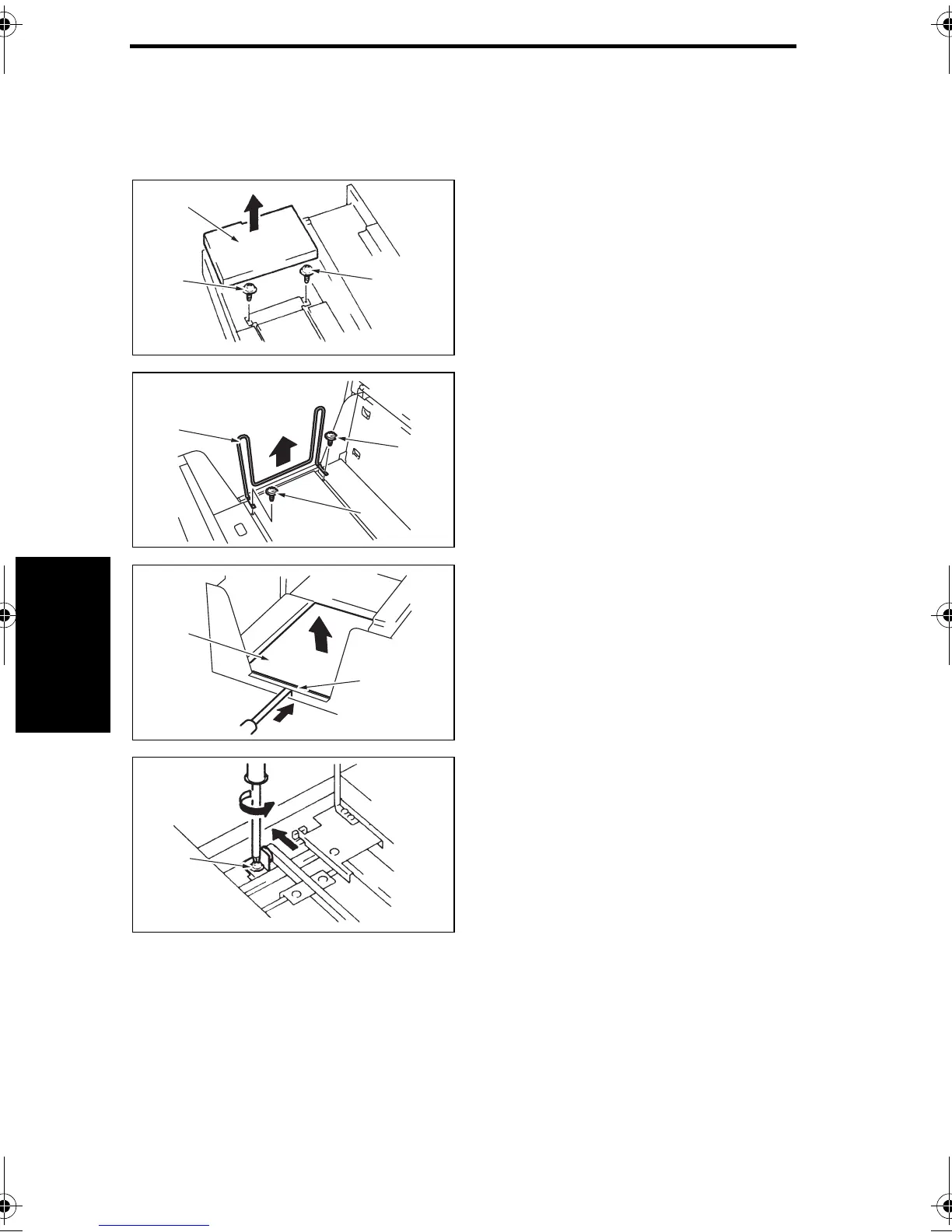

3.2 Shifter movement timing belt adjustment
1. Slide out the Drawer and remove it.
2. Lift the Main Drawer [1], and remove
two screws [2] fixing the Shift Tray.
NOTE
• When reinstalling, use caution
because the wire of the Main
Drawer comes off easily.
3. Remove two screws [3] and remove
the Shifter [4].
4. Push the tab [6] of the Shift Tray [5]
as shown on the left and release the
lock.
5. Remove the Shift Tray [5].
6. Loosen the screw [7] fixing the Ten-
sion Pulley Assy as shown to the left
and move it in the direction of the
arrow.
7. After moving the Shifter, tighten the
fixing screw [7].
4348fs3501c0
[1]
[2]
[2]
4348fs3502c0
[3]
[4]
[3]
4348fs3503c0
[6]
[5]
4348fs3504c0
[7]
C350_FS_E.book 6 ページ ２００４年３月１１日 木曜日 午後５時６分
To Next Page
