Other bizhub C350 Field Service Ver.1.0 Mar. 2004
2-4
II Maintenance

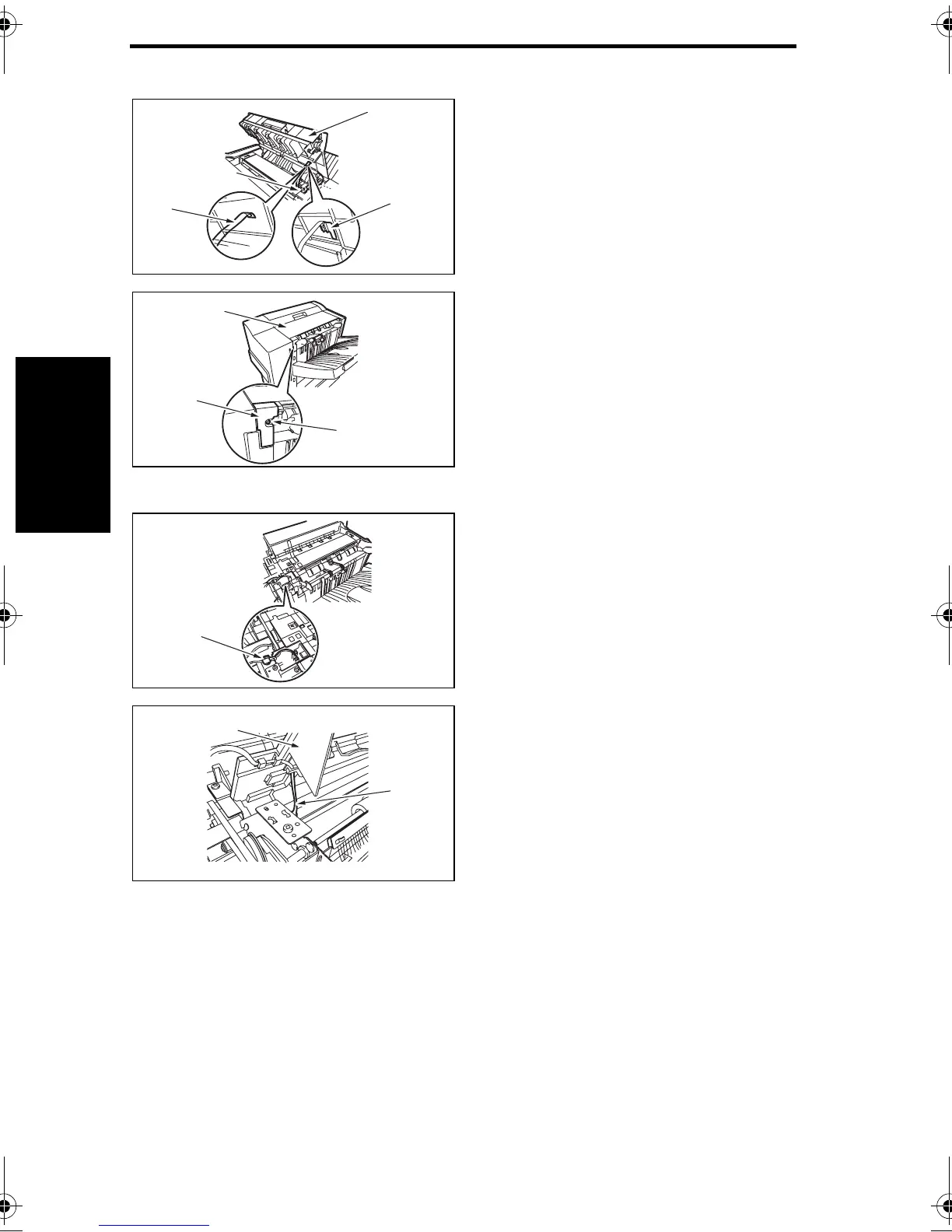

1.3.4 Upper Door
1. Open the Upper Door [1], and
remove the Door Band Holder [2] by
turning it clockwise.
2. Remove the Door Band [3].
3. Remove the screw [4], and remove
the grounding wire.
4. Remove the screw [5], remove the
Finisher Tray Rear Cover [6], and
remove the Upper Door [7].
1.3.5 Finisher Tray Upper Cover
1. Remove the Front Cover.
☞ 2-3
2. Remove the Rear Cover.
☞ 2-3
3. Remove the Upper Door.
☞ 2-4
4. Unplug the connector [1].
5. Unplug the connector [3] while hold-
ing up the Finisher Tray Upper Cover
[2], and remove the Finisher Tray
Upper Cover [2].
[1]
[4]
4583fs2531c0
[2]
[3]
[5]
[6]
4583fs2532c0
[7]
[1]
4583fs2533c0
[2]
[3]
4583fs2534c0
C350_FS_E.book 4 ページ ２００４年３月１１日 木曜日 午後５時６分
