bizhub C350 Field Service Ver. 2.0 April 2004 Jam Display
4-3
IV
Troubleshooting

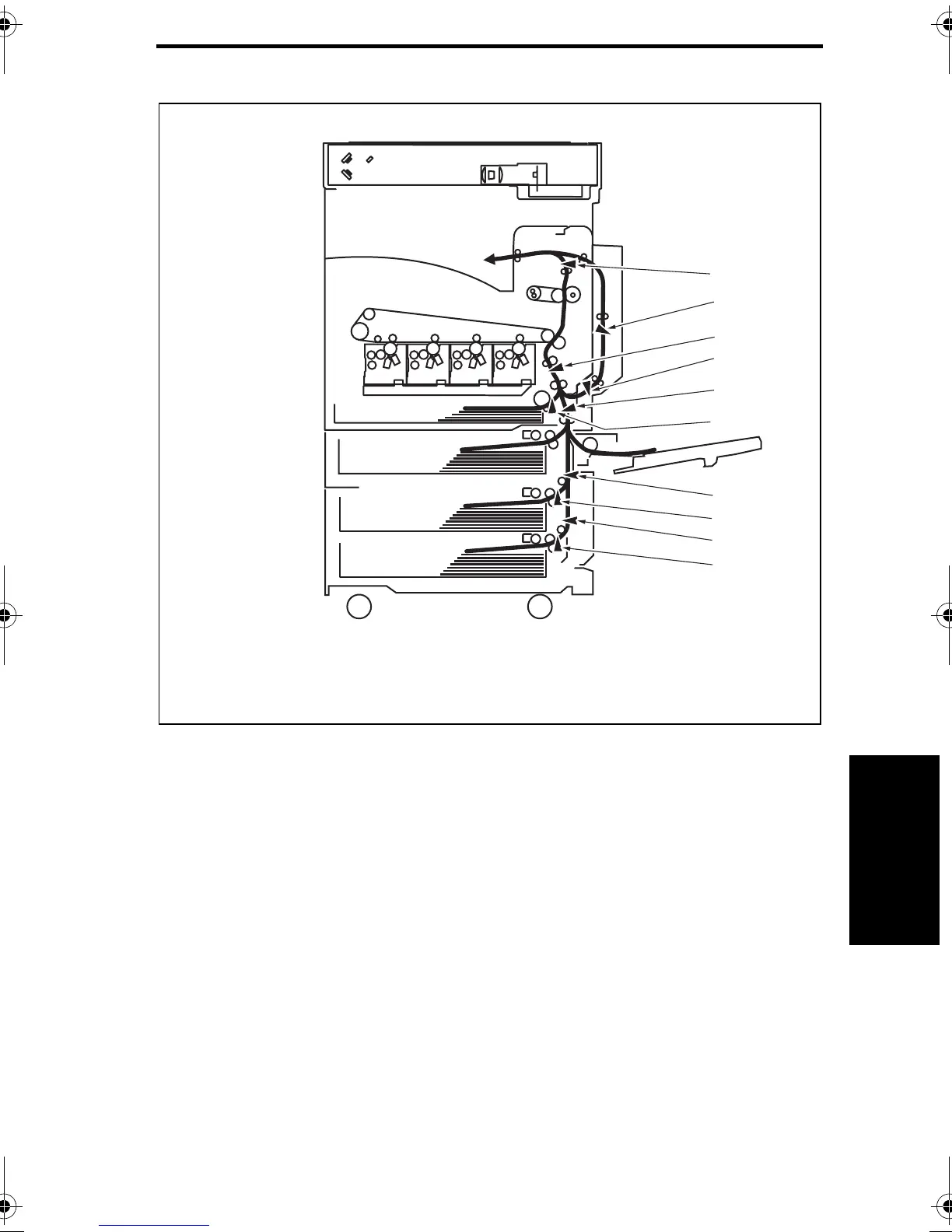

1.2.2 System Mounted with AD-501 and PC-201.
*1: Two different types of sensors are located in the area near [3].
[1] Exit Sensor PC30 [6] Tray1 Double Feed Sensor PC1
[2] Duplex Unit Transport Sensor 1 PI1-DU [7] Tray3 Vertical Transport Sensor PC117-PF
[3]*1 Synchronizing Roller Sensor PC28 [8] Tray3 Paper Take-Up Sensor PC116-PF
[3]*1 OHP Sensor PC27 [9] Tray4 Vertical Transport Sensor PC126-PF
[4] Duplex Unit Transport Sensor 2 PC1-DU [10] Tray4 Paper Take-Up Sensor PC125-PF
[5] Tray2 Vertical Transport Sensor PC108
[1]
[6]
[5]
[4]
[2]
[3]
[7]
4036fs4003c0
[9]
[10]
[8]
FS4.fm Page 3 Tuesday, April 27, 2004 4:01 PM
To Next Page
