bizhub C350 Field Service Ver. 2.0 April 2004 Jam Display
4-1
IV
Troubleshooting
IV Troubleshooting

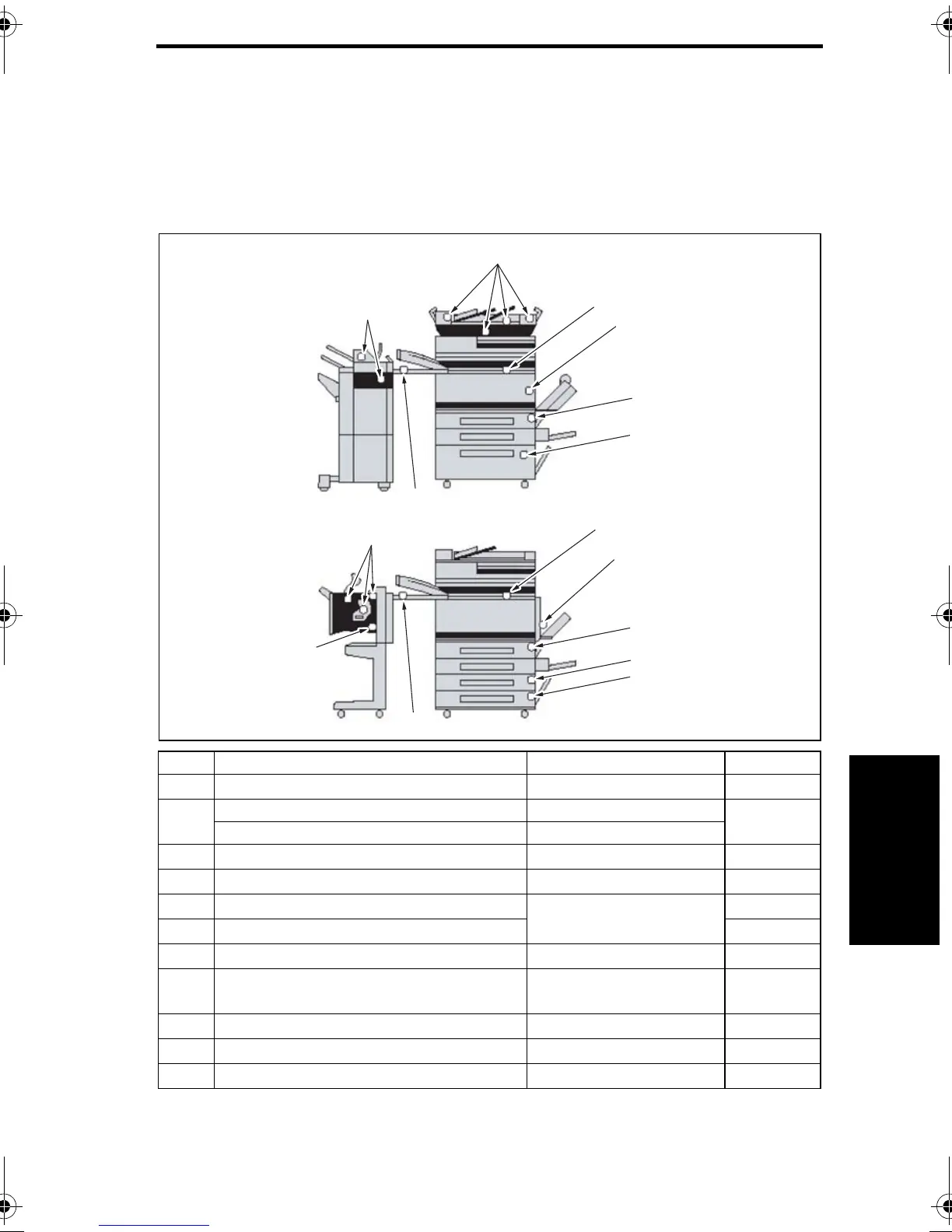

1. Jam Display
1.1 Misfeed Display
• When a paper misfeed occurs, the misfeed message, misfeed location, and paper loca-
tion are displayed on the Touch Panel of the copier.
1.1.1 Misfeed Display Resetting Procedure
• Open the corresponding door, clear the sheet of paper misfeed, and close the door.
Display Misfeed Location misfeed processing location Action
[1]
1st Drawer take-up, 2nd Image Transfer, Fusing
Right Door
☞ 4-5
[2] 2nd Drawer take-up, Vertical Transport 2nd Drawer Right Door
☞ 4-6
Manual Bypass take-up Manual Bypass Slide Board
[3] LCT take-up, Vertical Transport LCT Right Door
☞ 4-8
[4] Duplex Unit transport Duplex Unit Right Door
☞ 4-11
[5] 3rd Drawer take-up, Vertical Transport Paper Feed Unit Right Door
☞ 4-9
[6] 4th Drawer take-up, Vertical Transport
☞ 4-10
[7] Exit Right Door
☞ 4-12
[8] Horizontal transport Horizontal transport cover
☞ FS-501
☞ FS-601
[9] Finisher FS-601 Finisher Door
☞ FS-601
[10] Finisher FS-501 Finisher Door
☞ FS-501
[11] Document Feeder DF-601 Document Feeder Door
☞ DF-601
[1]
[8]
[8]
[6]
[5]
[4]
[2]
[2]
[3]
4036fs4002c0
[7]
[7]
[9]
[11]
[10]
[9]
