bizhub C350 Field Service Ver.2.0 April 2004 Other
2-95
II Maintenance

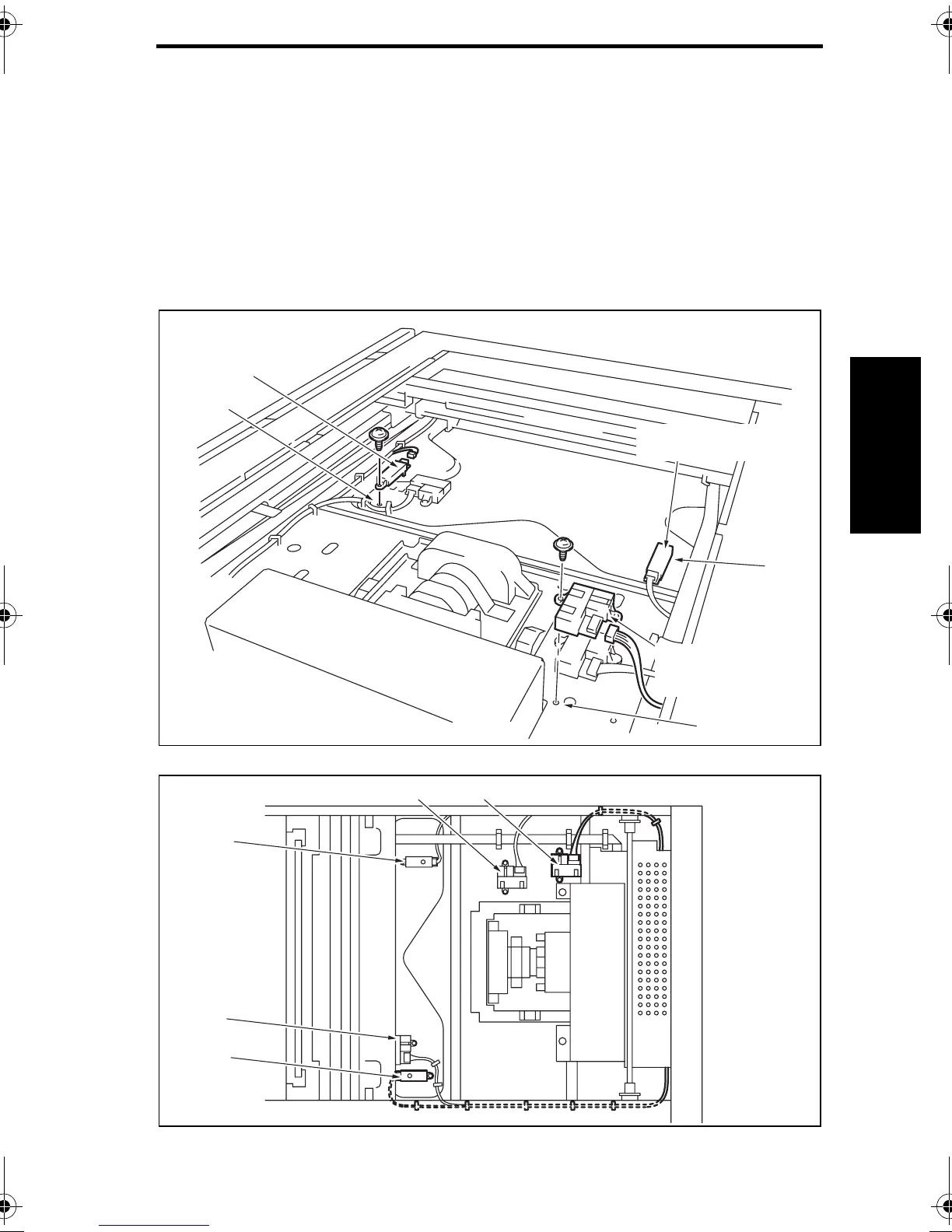

4.4 Mount the optional original size detecting sensors
NOTE
• When an Original Size Detecting Sensor has been added, select “SET” in “Org.
Detect Option Sensor” of “System Input” available from the “Tech. Rep. Mode”
and run “Org. Detect Sensor” of “Machine Adjust.”
1. Remove the PWB Cover.
☞ See the procedures 1 to 4 of 2-48 “Image Processing Board”.
2. Connect the connector of the Original Size Detecting Sensor to be added to the Image
Processing Board.
3. Replacing the PWB Cover.
4. Mount the Original Size Detecting Sensor (option).
<How the Harness should be Placed>
4036fs2619e0
CD2
Optional for the
Europe, U.S.A., Taiwan
FD3
Optional for the
Europe, U.S.A., Taiwan
FD1
Optional for the U.S.A.
A
E
G
4036fs2172c1
CD2
CD1
FD1
FD2
FD3
FS2.fm Page 95 Tuesday, April 27, 2004 3:14 PM
To Next Page
