Other bizhub C350 Field Service Ver. 2.0 April 2004
2-54
II Maintenance

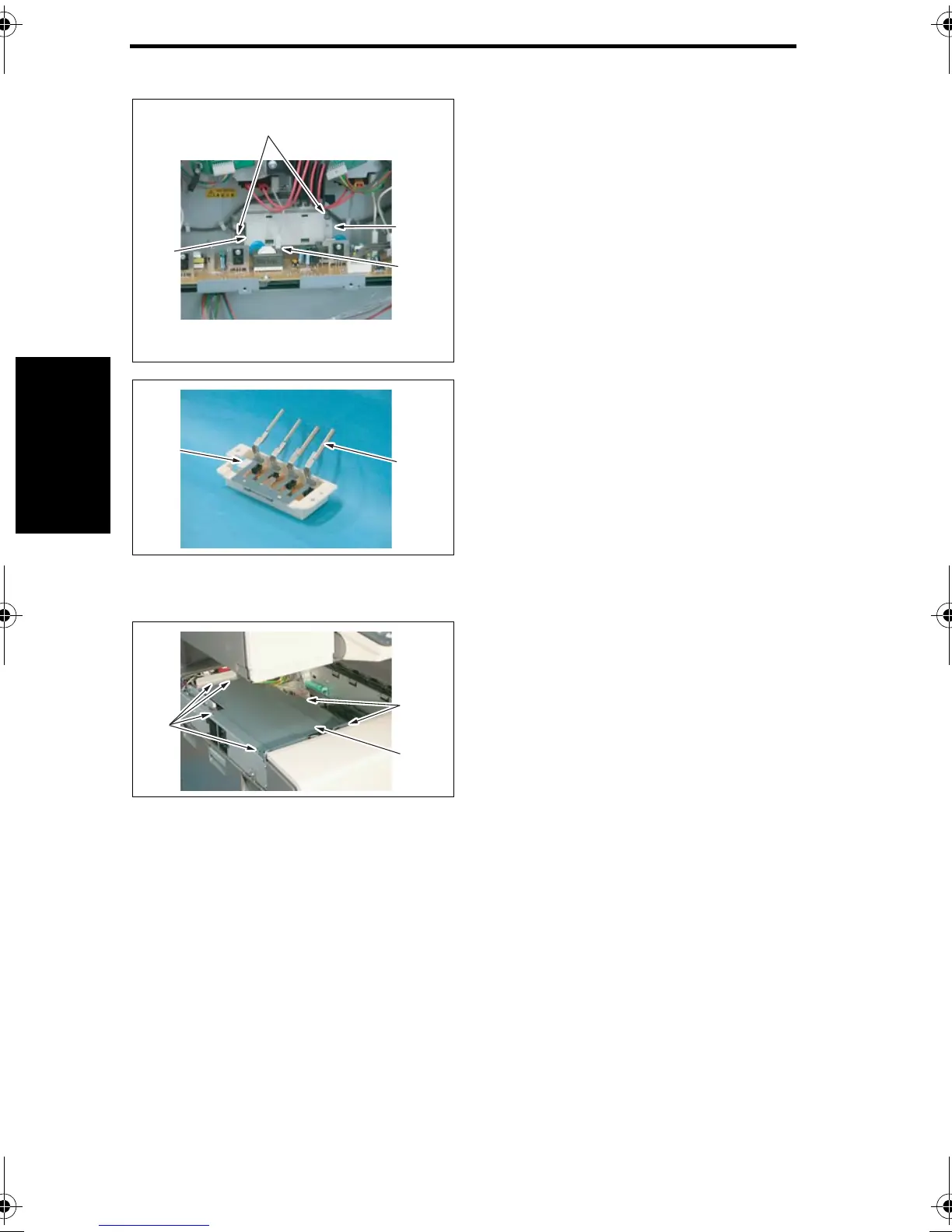

4.3.17 Tray 1 Paper Size Board
1. Slide out the Tray 1.
2. Remove the PWB Box.
☞ 2-76
3. Remove the Connector [1] on the
High Voltage Unit/2.
4. Remove two Screws [2] and Connec-
tor [3], and remove the Tray1 Paper
Size Board Assy [4].
5. Remove the Lever [5].
6. Remove the Tray 1 Paper Size Board
[6].
4.3.18 DC Power Supply
1. Remove the Exit Tray.
☞ 2-41
2. Remove six Screws [1], and remove
the Board Cover [2].
4036fs2071c1
[1]
[2]
[3]
[4]
4036fs2072c1
[5]
[6]
4036fs2073c0
[1]
[1]
[2]
FS2.fm Page 54 Tuesday, April 27, 2004 3:14 PM
To Next Page
