bizhub C350 Field Service Ver.2.0 April 2004 Other
2-83
II Maintenance

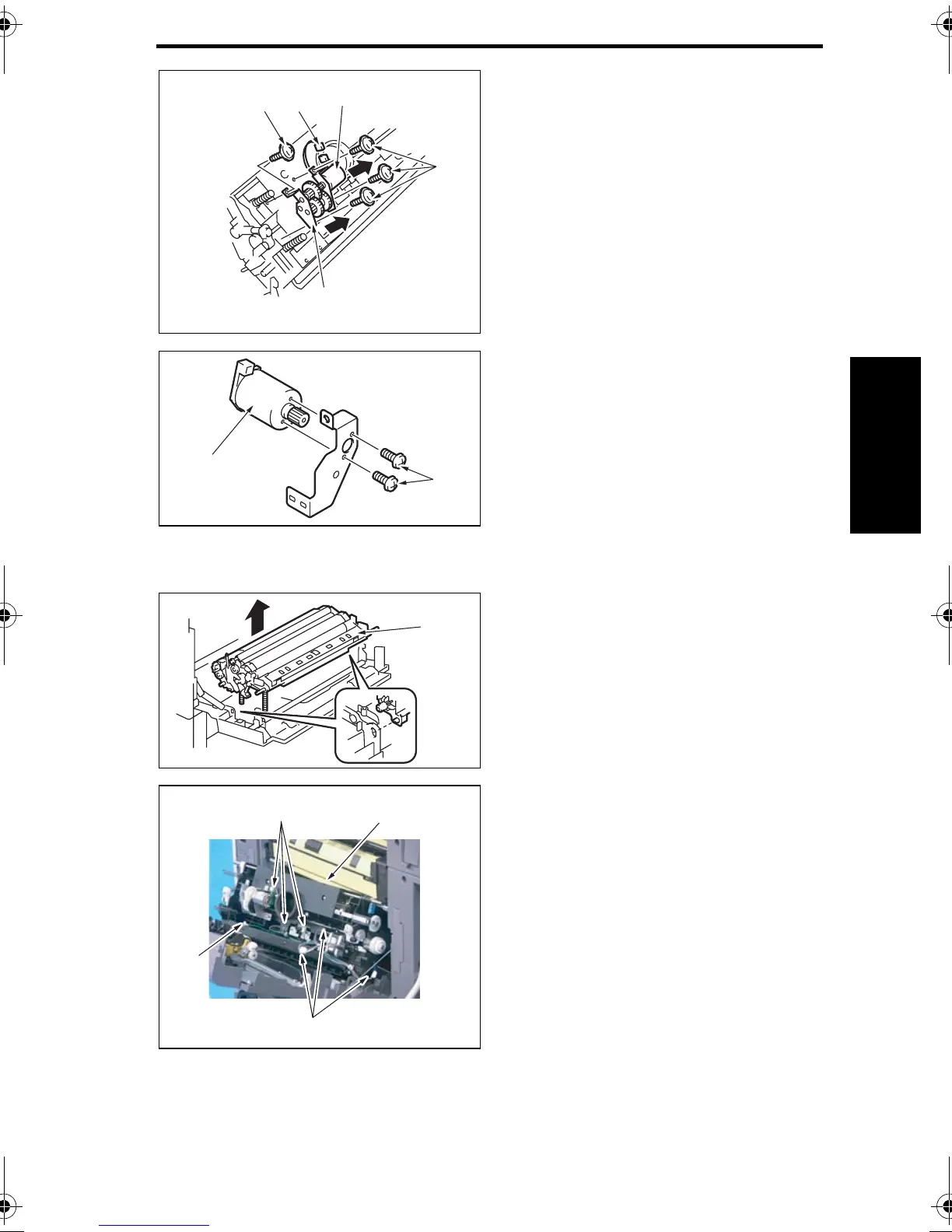

3. Remove four screws [2], unplug the
connector [3], and remove the gear
Assy [4] and motor Assy [5].
4. Remove two screws [6] and the 2nd
Image Transfer Pressure/Retraction
Motor [7].
4.3.44 Intermediate Transport Motor
1. Open the Right Door.
2. Remove the Lock claw to make free
conditions of Transport section Assy
[1].
3. Remove six Connectors [3] and
Earth [4], and remove the Transport
section Assy [5].
4036fs2531c0
[5]
[4]
[2]
[2]
[3]
4036fs2532c0
[7]
[6]
4036fs2528c0
[1]
4036fs2113c1
[3]
[3]
[4]
[5]
FS2.fm Page 83 Tuesday, April 27, 2004 3:14 PM
