Periodical check bizhub C350 Field Service Ver. 2.0 April 2004
2-26
II Maintenance

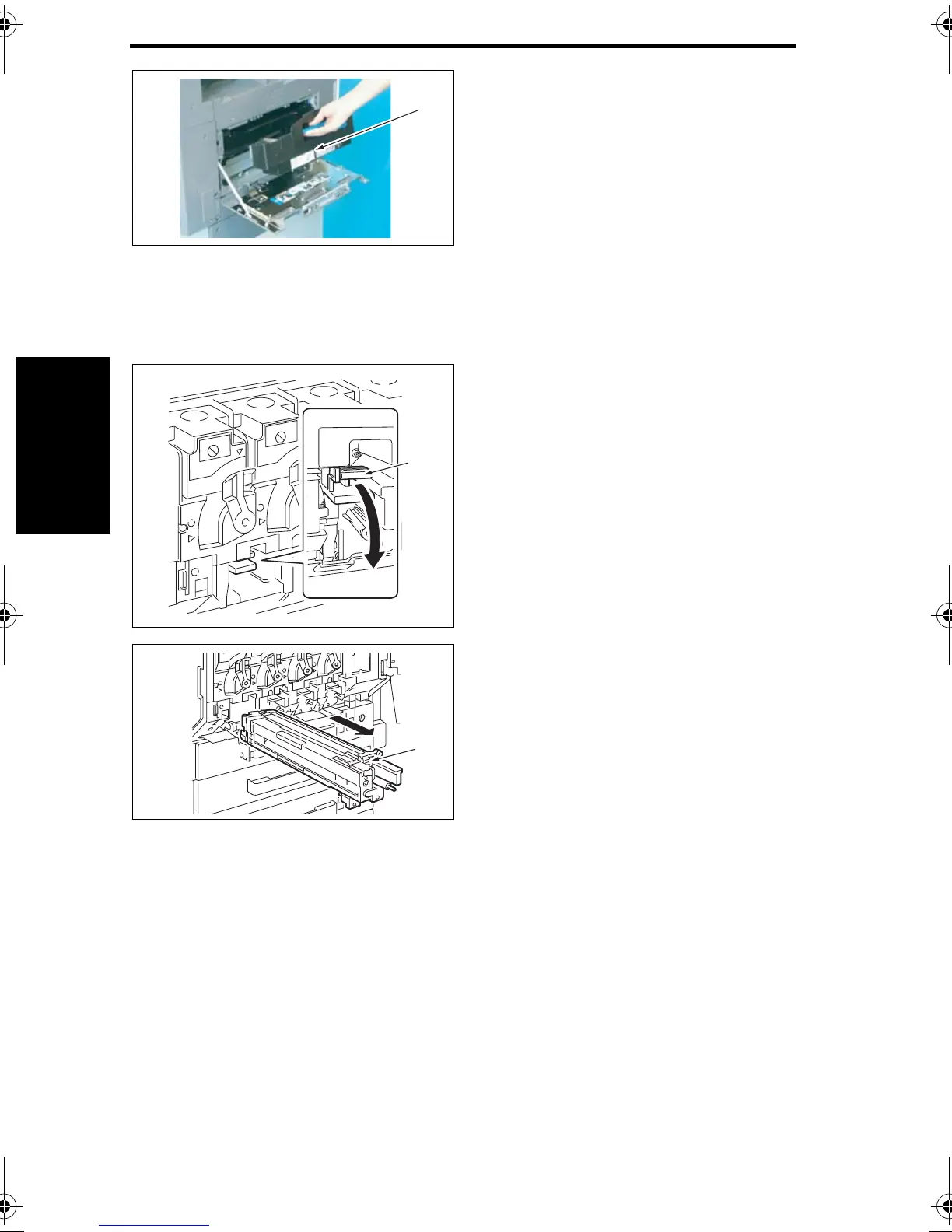

3. Hold the handle and install the
Waste Toner Bottle [3] in position.
4. Close the Left Door.
5. Close the Right Door.
NOTE
• Make sure that the door is locked in
position both at front and rear.
6. Turn ON the Power Switch.
7. Select “Tech. Rep. Mode”
→ “Gra-
dation Adjust” and carry out Grada-
tion Adjust.
1.5.24 Replacing the Imaging Unit (C, M, Y, Bk)
A. Removal Procedure
1. Turn OFF the Power Switch.
2. Unplug the power cord.
3. Open the Front Door.
4. Release the lock lever [1] of the
Imaging Unit.
5. Pull out the IU [2], and remove it from
main body.
6. Clean the LPH Assy.
☞ 2-22
4036fs2616c0
[3]
4036fs2578c0
[1]
4036fs2579c0
[2]
