Konica Minolta bizhub C350 Service Manual

bizhub C350 Field Service Ver.2.0 April 2004 Periodical check
2-11
II Maintenance

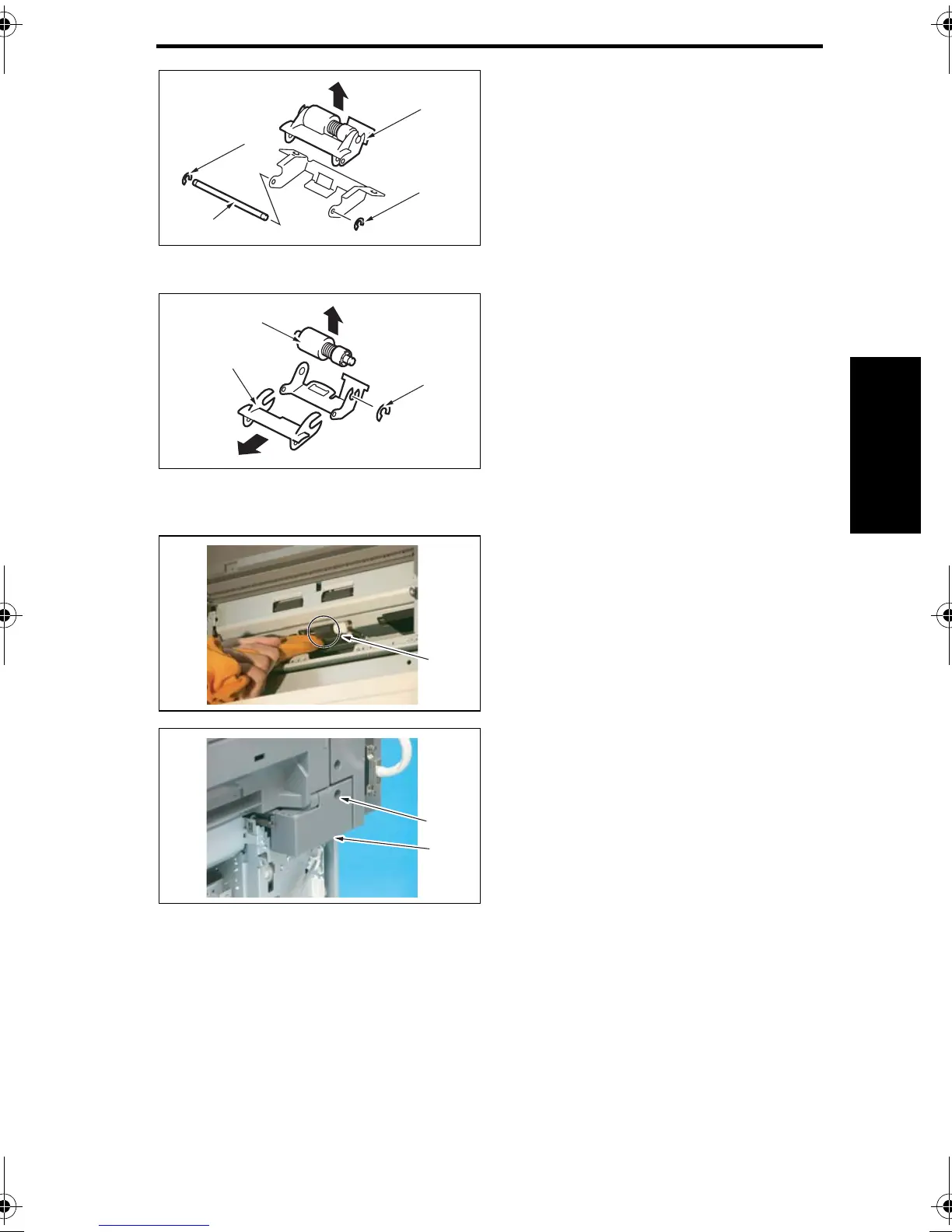

B. Replacing Procedure
1. Remove the Separation Roller 2
installation plate Assy.
☞ See the procedures 1 to 7 in 2-9
“Cleaning of Separation Roller”.
2. Remove two C-rings [1] and the
Shaft [2], and remove the Separation
Roller fixing plate Assy [3].
NOTE
• Use care not to miss the Spring.
3. Remove the C-ring [4] and Guide [5],
and remove the Separation Roller
Assy 2 [6].
1.5.4 Paper Take-up Roller
A. Cleaning Procedure
1. Remove the Separation Roller 2
installation plate Assy.
☞ See the procedures 1 to 7 in 2-9
“Cleaning of Separation Roller”.
2. Using a soft cloth dampened with
alcohol, wipe the Paper Take-up
Roller [1].
B. Replacing Procedure
1. Remove the Separation Roller 2
installation plate Assy.
☞ See the procedures 1 to 7 in 2-9
“Cleaning of Separation Roller”.
2. Remove the Screw [1] and Wiring
cover [2].
4036fs2593c0
[1]
[3]
[1]
[2]
4036fs2594c0
[4]
[5]
[6]
4036fs2022c1
[1]
4036fs2023c0
[1]
[2]
FS2.fm Page 11 Tuesday, April 27, 2004 3:14 PM
