bizhub C350 Field Service Ver. 2.0 April 2004 Timing chart
5-23
V Appendix

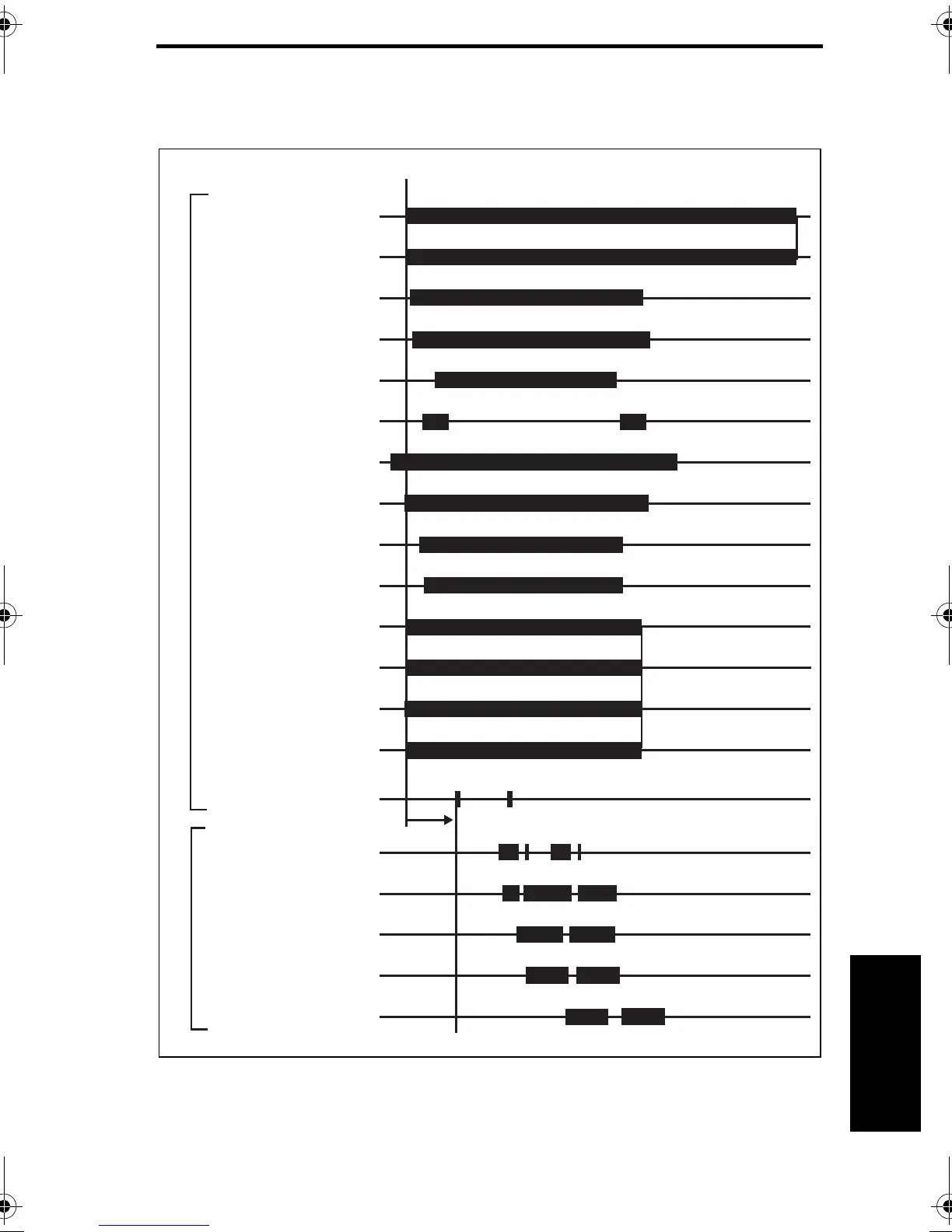

3. Timing chart
3.1 Main unit
Tray1 Paper Feed Clutch
(CL1)
Intermediate Transport
Motor (M14)
Synchronizing Roller
Clutch (CL3)
Synchronizing Roller
Sensor (PC28)
Exit Sensor (PC30)
Main Motor (M1)
Color PC Drum Motor (M5)
Color Developing Motor (M6)
2nd Image Transfer
Pressure/Retraction Motor
(M13)
Bk PC Motor (M7)
Fusing Drive Motor (M2)
TOD Signal
Cleaning Brush Motor (M22)
Main Erase Lamp/C (LA3)
Main Erase Lamp/Y (LA1)
Main Erase Lamp/M (LA2)
Main Erase Lamp/Bk (LA4)
Drum Charge Corona Bias
Y, M, C
Drum Charge Corona Bias
Bk
Print request received
With reference to print requestWith reference to TOD
4036fs5545j0
1st
Original
2nd
Original
Developing Bias DC
(Y/M/C/Bk)
