Konica Minolta bizhub C350 Service Manual

Other bizhub C350 Field Service Ver. 2.0 April 2004
2-56
II Maintenance

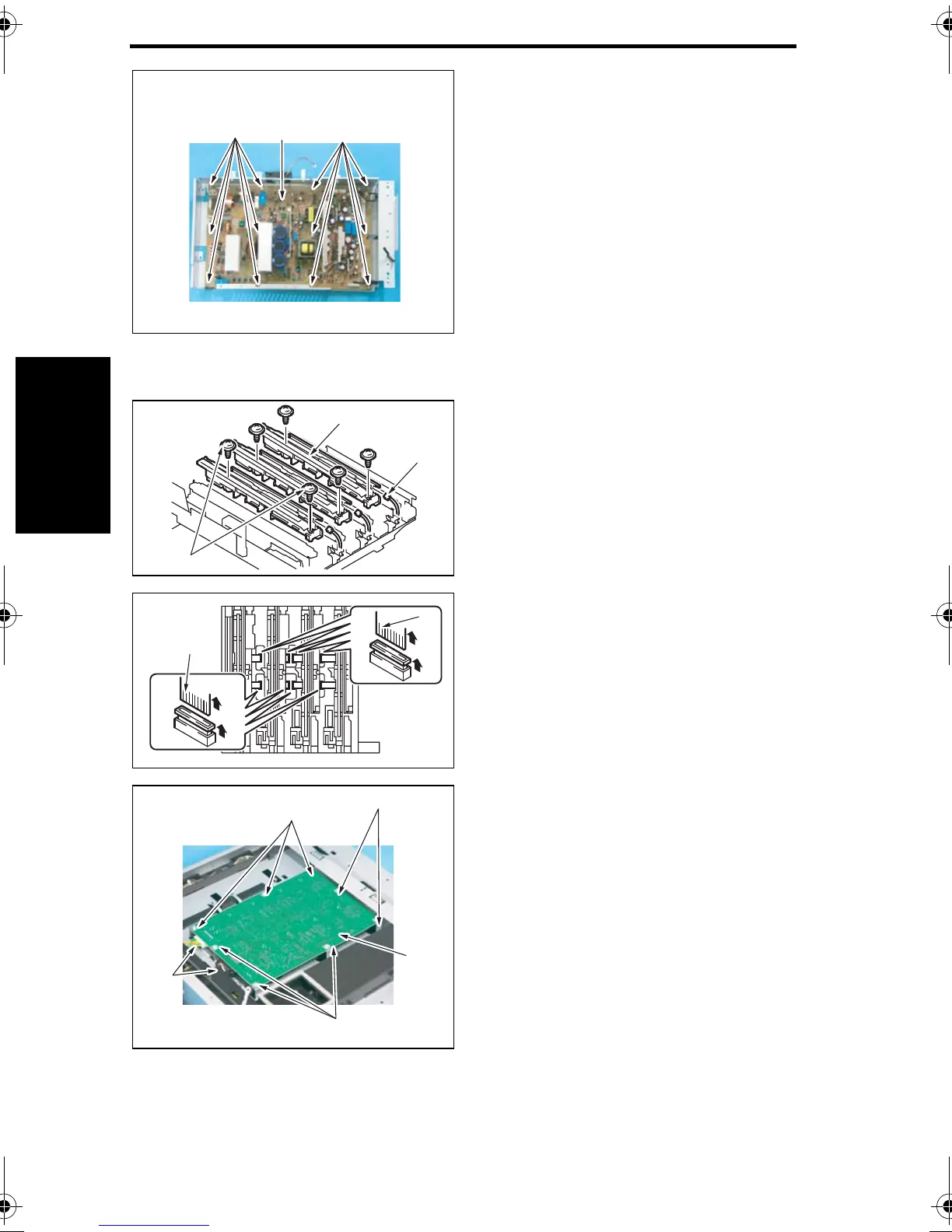

6. Remove 12 Screws [7], and remove
the DC power Supply [8].
4.3.19 LED Drive Board
1. Remove the LPH Unit.
☞ 2-64
2. Remove two screws [1], unplug the
connector [2] each, and remove
each guide Assy.
3. Remove the flat cables [4] (eight).
4. Remove eight screws [5], unplug two
connectors [6], and remove the LED
Drive Board [7].
4036fs2077c1
[7]
[7]
[8]
4036fs2545c0
[3]
[1]
[2]
4036fs2546c1
[4]
[4]
4036fs2143c1
[5]
[5]
[5]
[6]
[7]
FS2.fm Page 56 Tuesday, April 27, 2004 3:14 PM
