Effect
145
Use “7.2: Ed–InsertFX ( or Insert FX)” in Program, Combina-
tion, or Multi mode to set up the Insert Effects. You can
apply 2-in/6-out effects to the incoming signal from Inputs 1
and 2. You may also combine these signals with the internal
sound.
For example, in Program mode or Combination mode, you
can route the incoming signal from AUDIO INPUTs 1 and 2
and the oscillator sound to “Insert Effect 093: Vocoder” in
order to set up a vocoder effect in which the internal sound
is controlled by the mic inputs (
☞p.197 “093: Vocoder”).
3. Mixer
For each mode, use 7.2: Ed-InsertFX (or Insert FX) Setup
page parameters “Pan (CC#8),” “BUS Select,”“S1 (Send 1
(MFX1)),” and “S2 (Send 2 (MFX2))” to specify the pan, bus
select, and the send levels to master effects MFX1 and MFX2
for the signals that have passed through the insert effects. If
you have set “Chain” to to connect insert effects in series,
the parameters listed above will be applied after the signal
has passed through the last insert effect.
In Sampling mode, you cannot use the Master Effects or
route signals to INDIVIDUAL 1, 2, 3, and 4. You can set
only the pan setting for the post-IFX signals.

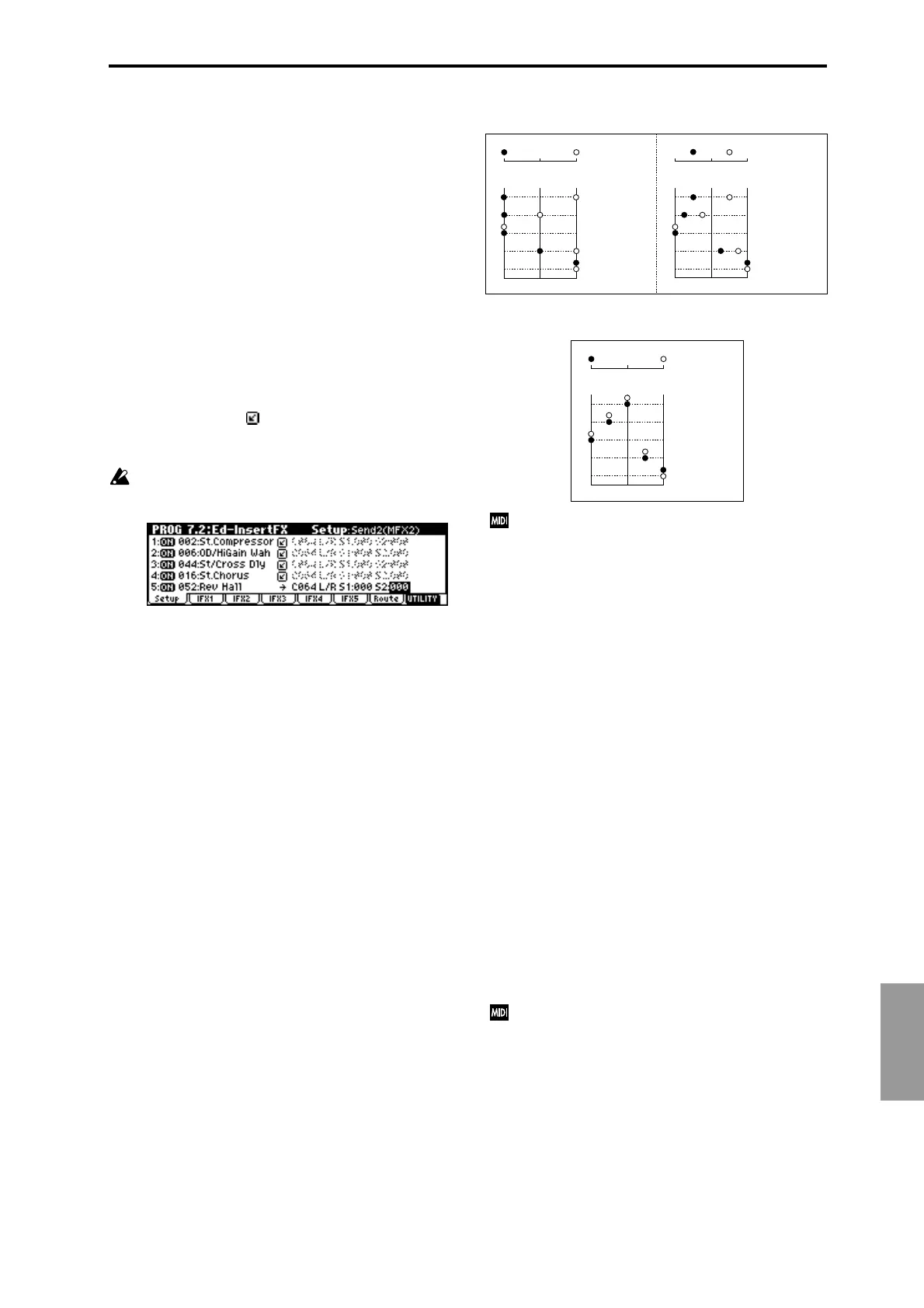

3–1. Pan (CC#8)
Specifies the pan after passing through the insert effect.
If the insert effect is a Stereo In–Stereo Out type (
☞”In/
Out”), setting this parameter to C064 will allow the “Pan”
settings of the oscillator (PROG 5.1–1, PROG 5.2–1), timbre
(COMBI 1.1–3, 2.1–2), track (MULTI 1.1–4/5) or audio input
(SMPL 1.1–3, GLOBAL 1.1–3) to be used.
If the insert effect is a Mono In-Stereo Out or Mono In-
Mono Out type (
☞“In/Out”), the “Pan” of the oscillator,
timbre, track, or audio input (see above) will be ignored, and
the sound will always be panned to the center. In this case,
the “Pan (CC#8)” (7.2–1) that follows the insert effect will
determine the final panning. L001 is far left and R127 is far
right.
You can control these parameters via MIDI Control
Change CC#8.
3–2. BUS Select
This parameter enables you to specify the destination bus
for the post-IFX signals.
“L/R” is a common setting to send signals to the Master EQ
before they are routed to the OUTPUT L/R outputs.
Select 1, 2, 3, 4, 1/2, or 3/4 to route the signals to AUDIO
OUTPUT (INDIVIDUAL) 1, 2, 3, or 4 (
☞“Individual Out-
put”). Select “Off” so that no signals will be output to L/
MONO, R, 1, 2, 3, or 4. In this case, the signals are routed
from the Master Effects to AUDIO OUTPUT (MAIN). This
setting is used when you are connecting the Insert Effects
with the Master Effects in series using “S1 (Send1(MFX1))”
and S2 (Send2(MFX2)).”
3–3. Send level
These parameters enable you to set the send level of the sig-
nals routed to Master Effects MFX1 and MFX2. These set-
tings are effective only when “BUS Select” is set to L/R or
Off.
If you are not using insert effects, set the PROG 7.1–1 MFX
Send “Send 1” and “Send 2” parameters, the COMBI 7.1–1
“S1 (Send 1 (MFX1))” and “S2 (Send 2 (MFX2))” parameters,
or the Multi mode MULTI 7.1–1/2 “S1 (Send 1 (MFX1))” and
“S2 (Send 2 (MFX2))” to set the send levels to master effects
MFX1 and MFX2. (Send levels of the audio input are set in
GLOBAL 1.1–3a/b.)
Send Level 1 can be controlled by MIDI Control Change
CC#93 and Send Level 2 can be controlled by MIDI
Control Change CC#91
OSC1: Amp1 Pan=L001
OSC2: Amp2 Pan=R127
Left
Center
Right
Post IFX Pan(CC#8)
C064
Left
Center
Right
L032
L000
R096
R127
Insert Effect = Stereo In - Stereo Out
Left
Center
Right
Left
Center
Right
OSC1
OSC2
OSC1: Amp1 Pan=L032
OSC2: Amp2 Pan=R096
Post IFX Pan(CC#8)
C064
L032
L000
R096
R127
OSC1: Amp1 Pan=L001
OSC2: Amp2 Pan=R127
Left
Center
Right
Post IFX Pan(CC#8)
C064
Left
Center
Right
L032
L000
R096
R127
Insert Effect = Mono In - Stereo Out
OSC1
OSC2
Mono In - Mono Out
