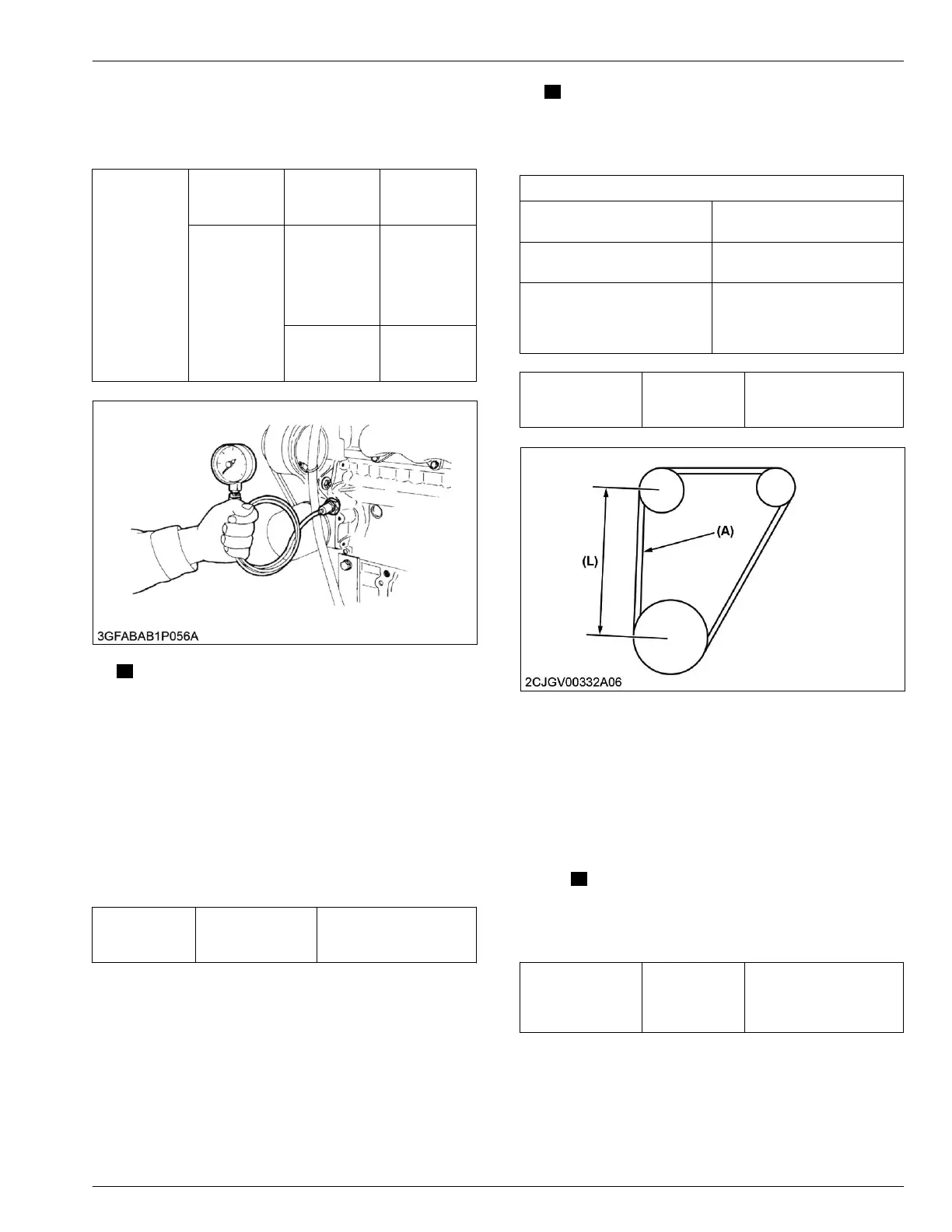

2. Set the oil pressure tester.
3.
Operate the engine for warming-up.
4.
Measure
the oil pressure at the idle speed and
rated speed.
Engine oil
pressure
At idle speed
Service speci-
fication
49 kPa
0.50 kgf/cm
2
7.1 psi
At rated
speed
Service speci-
fication
197 to
441 kPa
2.00 to
4.50 kgf/cm
2
28.5 to
64.0 psi
Service limit
147 kPa
1.50 kgf/cm
2
21.3 psi
NOTE
• If the oil
pressure is less than the service
limit, do a check below.
– Engine oil level
– Oil pump
– Oil strainer
– Oil filter cartridge
– Oil passage
– Oil clearance
– Relief valve
5. After checking the engine oil pressure, tighten its oil
pressure switch to the specified torque.
Tightening tor-
que
Oil pressure switch
15 to 19 N⋅m
1.5 to 2.0 kgf⋅m
11 to 14 lbf⋅ft
4.4 Checking fan belt tension
Tools required
•
Sonic belt tension meter
1.
Check
the tension of fan belt at the position (A)
between the fan drive pulley and alternator pulley
with sonic belt tension meter.
NOTE
• If the measurement
is out of the service
specifications, loosen the alternator
mounting screws and adjust its position.
Sonic belt tension meter setting value
Mass
(Mass per 1 rib 1 m of belt)
75 g/rib/m
Width
(Number of ribs)
1
Span L
Measure at location (A) in the
figure with (L) as the distance
between the fan drive pulley
and alternator pulley.
Belt tension
Service specifi-
cation
200 to 300 N
20.4 to 30.5 kgf
45.0 to 67.4 lbf
(A) Fan belt halfway
(Reference)
• If you can
not prepare the sonic belt tension
meter, check the fan belt tension by next
procedure.
a. Push the belt halfway between the fan drive
pulley and alternator pulley at a specified force
to measure the deflection (1).
NOTE
• If
the
measurement
is out of the service
specifications, loosen the alternator
mounting screws and adjust its position.
Deflection (B)
Service specifi-
cation
10.0 mm
0.39 in.
(Under load of 98 N
(10 kgf, 22 lbf))
SERVICING
4. Checking and adjusting 4. ENGINE
05-E4B SERIES,05-E4BG SERIES
