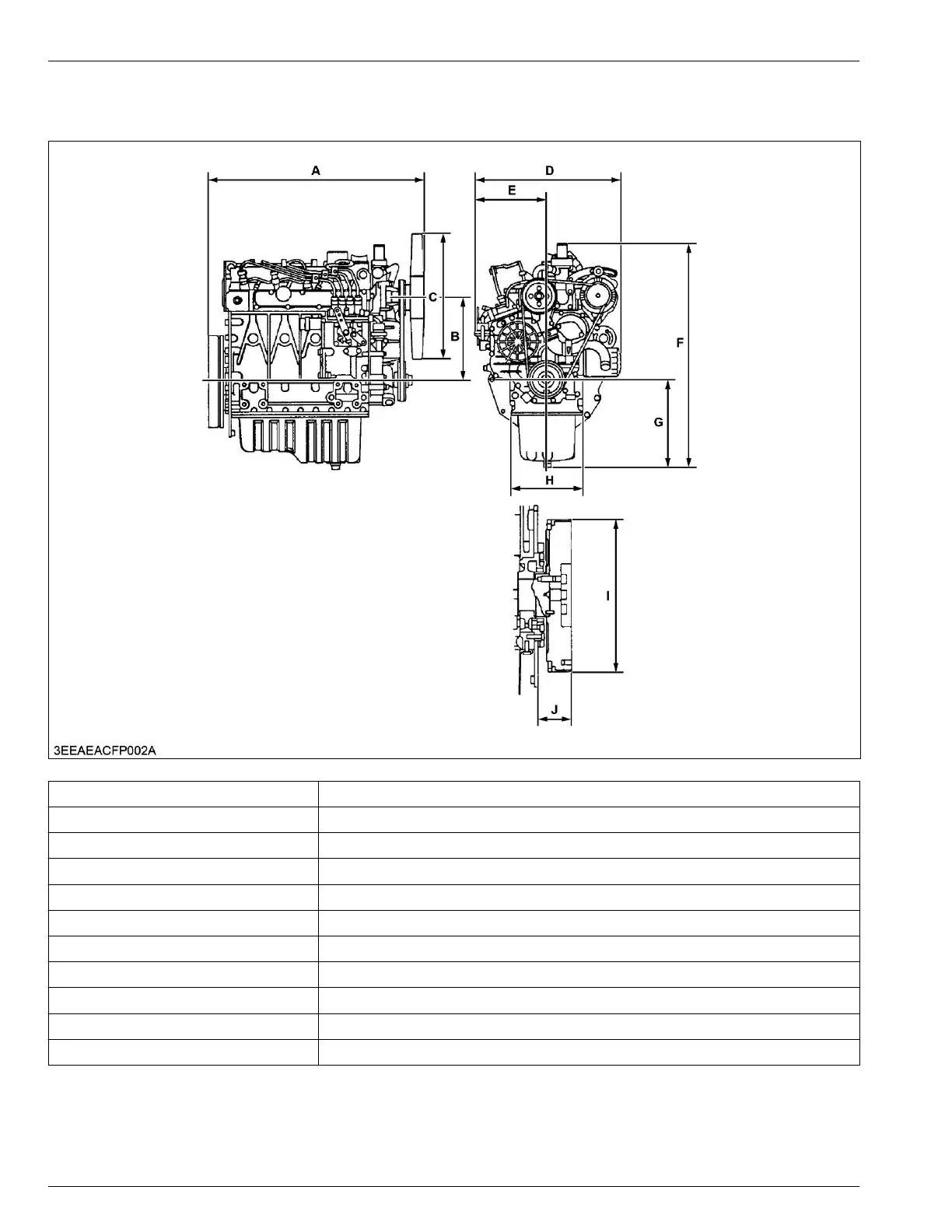

3.3 Dimension for V1505-E4B
V1505-E4B
V1505-E4B
A 591.3 mm (23.28 in.)
B 230 mm (9.06 in.)
C 370 mm dia. (14.6 in. dia.)
D 396 mm (15.6 in.)
E 194 mm (7.64 in.)
F 607.0 mm (23.90 in.)
G 238.5 mm (9.390 in.)
H 200 mm (7.87 in.)
I 250.81 to 251.12 mm dia. (9.8744 to 9.8866 in. dia.)
J 56 mm (2.2 in.)
