11. Remove the plunger (11).

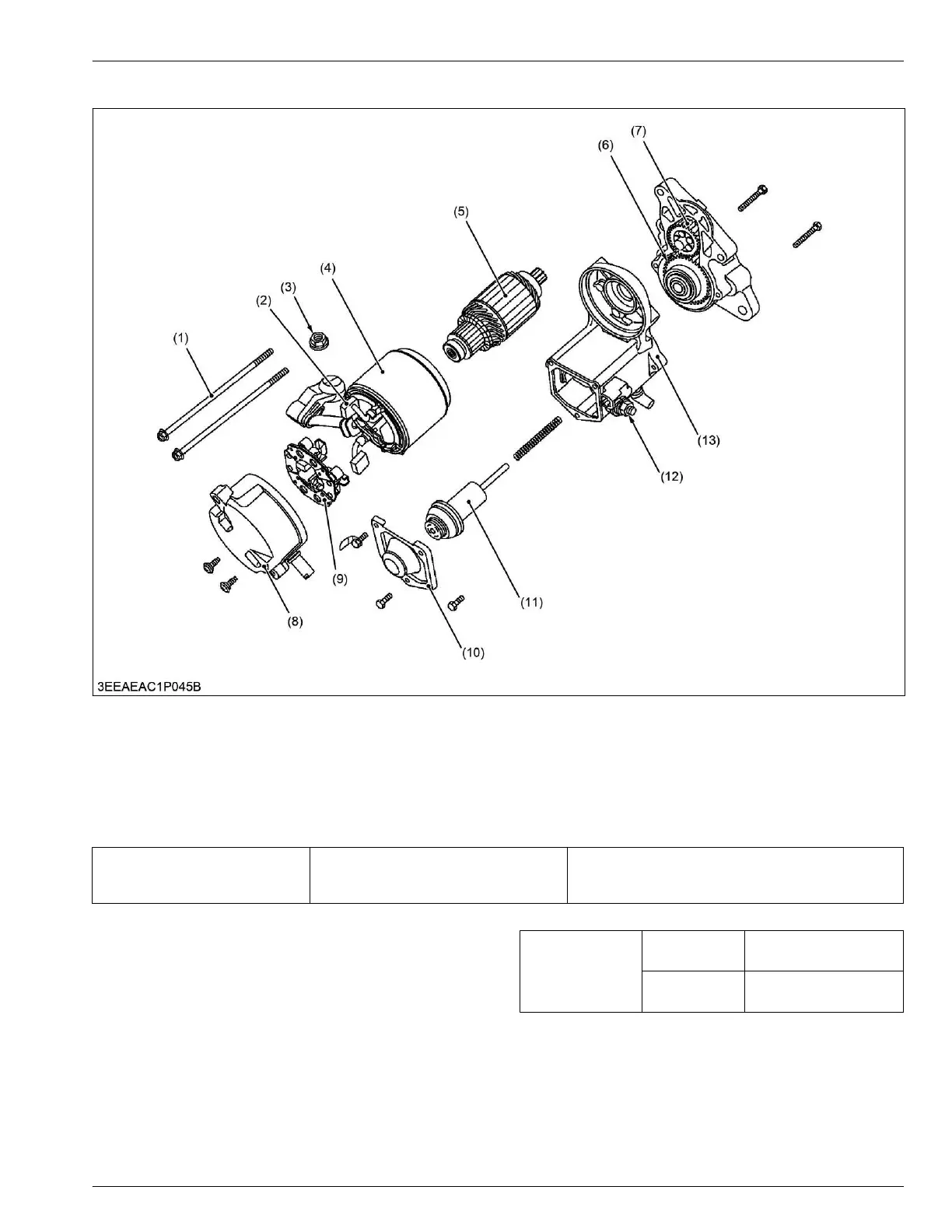

(1) Through bolt
(2) Brush
(3) C terminal nut
(4)
Yoke
(5) Armature
(6) Overrunning clutch
(7) Idle gear
(8) End frame
(9) Brush holder
(10) Magnet switch cover
(11) Plunger
(12) B terminal nut
(13) Housing
(When reassembling)
• Apply grease (DENSO No. 50 or equivalent) to the idle gear and overrunning clutch portions.
• T
ighten to the specified tightening torque.
Tightening torque B terminal nut
5.88 to 11.8 N⋅m
0.600 to 1.20 kgf⋅m
4.34 to 8.70 lbf⋅ft
6. Servicing
6.1 Checking cylinder head top
clearance
Tools required
• Plastigauge
1. Remove the cylinder head.
2.
With the piston at T.D.C., use grease to affix three
or four plastigauges (1) to the crown of the piston;
keep the gauges away from the intake valve and
combustion chamber fittings.
Plastigauge (1) cut
size
Diameter
1.5 mm
0.059 in.
Length
5.0 to 7.0 mm
0.20 to 0.27 in.
SERVICING
6. Servicing 4. ENGINE
05-E4B SERIES,05-E4BG SERIES
4-49
KiSC issued 03, 2023 A
