3. Dimensions

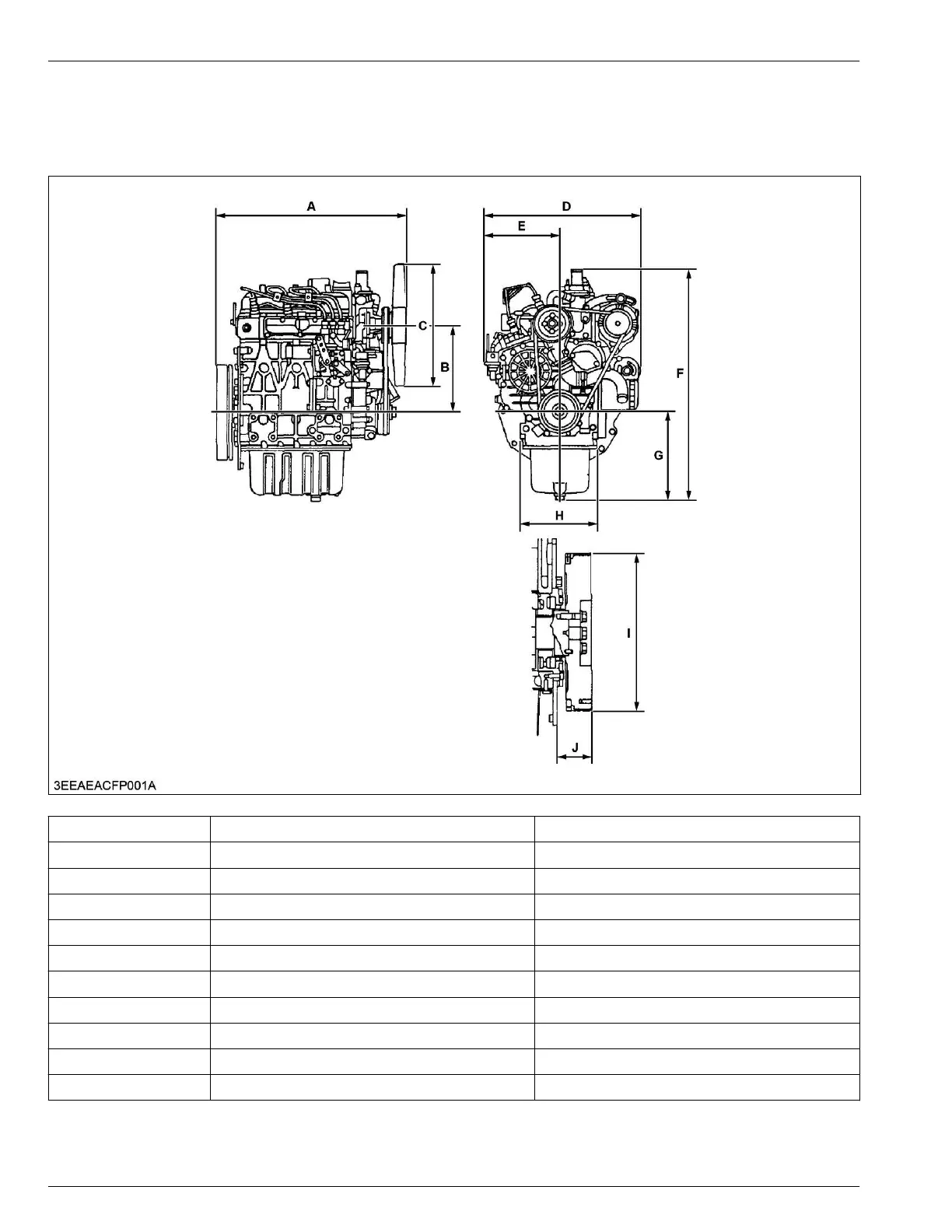

3.1 Dimension for D1005-E4B, D1105-E4B
D1005-E4B, D1105-E4B
D1005-E4B D1105-E4B
A 497.8 mm (19.60 in.) 497.8 mm (19.60 in.)
B 230 mm (9.06 in.) 230 mm (9.06 in.)
C 330 mm dia. (13.0 in. dia.) 330 mm dia. (13.0 in. dia.)
D 396 mm (15.6 in.) 396 mm (15.6 in.)
E 194 mm (7.64 in.) 194 mm (7.64 in.)
F 602.0 mm (23.70 in.) 602.0 mm (23.70 in.)
G 233.5 mm (9.193 in.) 233.5 mm (9.193 in.)
H 200 mm (7.87 in.) 200 mm (7.87 in.)
I 250.81 to 251.12 mm dia. (9.8744 to 9.8866 in. dia.) 250.81 to 251.12 mm dia. (9.8744 to 9.8866 in. dia.)
J 56 mm (2.2 in.) 56 mm (2.2 in.)
