J 8.0 mm dia. (0.31 in. dia.)
K 1.0 mm (0.039 in.)
L 17 mm dia. (0.67 in. dia.)
M
6.10 to 6.20 mm dia. (0.241 to 0.244 in.
dia.)
N 8.0 mm (0.31 in.)
O 4.0 mm (0.16 in.)
P
11.97 to 11.99 mm dia. (0.4713 to
0.4720 in. dia.)
Q PF 1/2
R 23 mm (0.91 in.)
S 17 mm (0.67 in.)
T 4.0 mm (0.16 in.)
U
12.00 to 12.02 mm dia. (0.472 to 0.4732 in.
dia.)
V 100 mm (3.94 in.)
W M12 × P1.5
X 5.0 mm (0.20 in.)

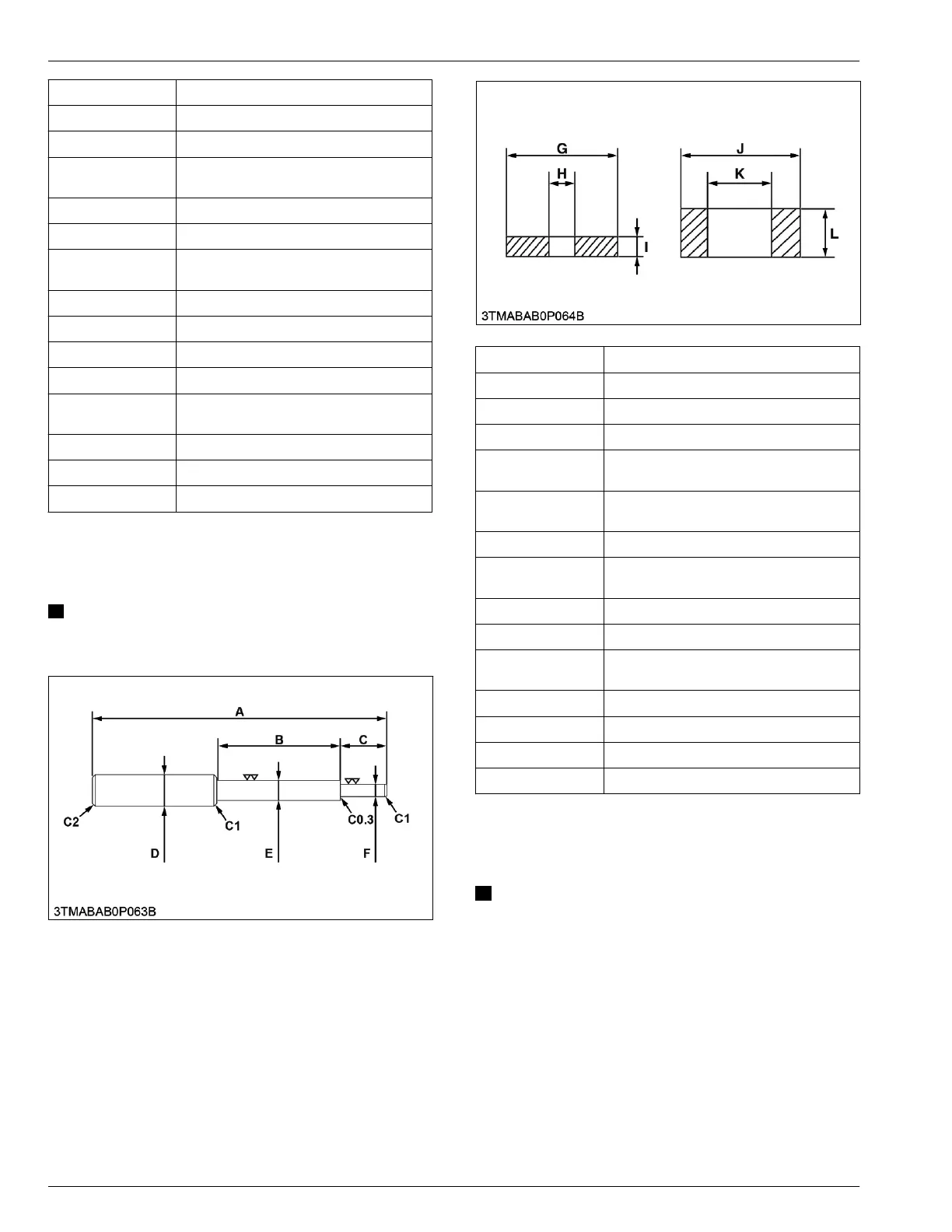

3. Valve guide replacing tool
Use to press out and press fit the valve guide.
NOTE
• The special tools
are not provided, so make
them referring to the figure.
A 225 mm (8.86 in.)
B 70 mm (2.8 in.)
C 45 mm (1.8 in.)
D 20 mm dia. (0.79 in. dia.)
E
11.7 to 11.9 mm dia. (0.461 to 0.468 in.
dia.)
F
6.50 to 6.60 mm dia. (0.256 to 0.259 in.
dia.)
G 25 mm dia. (0.98 in. dia.)
H
6.70 to 7.00 mm dia. (0.264 to 0.275 in.
dia.)
I 5.0 mm (0.20 in.)
J 20 mm dia. (0.79 in. dia.)
K
12.5 to 12.8 mm dia. (0.493 to 0.503 in.
dia.)
L 8.90 to 9.10 mm (0.351 to 0.358 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.30 mm (0.012 in.)
4. Bushing replacing tool
Use to press out and press fit the bushing.
NOTE
• The special tools
are not provided, so make
them referring to the figure.
2. GENERAL
SPECIAL TOOLS
3. Valve guide replacing tool
2-32
05-E4B SERIES,05-E4BG SERIES
KiSC issued 03, 2023 A
