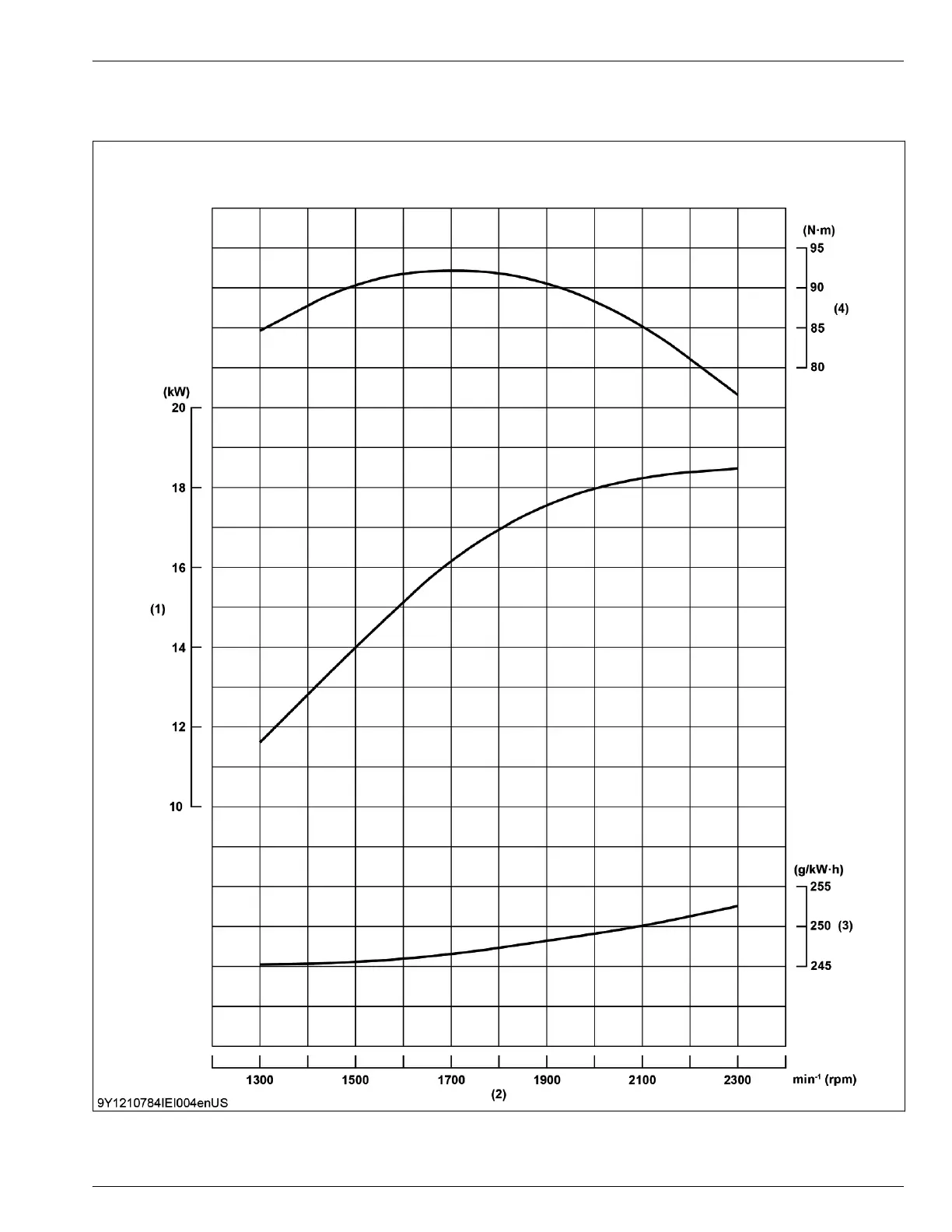

2.5 Performance curve for V1505-E4B

V1505-E4B

(1) Brake horsepower

(2) Engine speed

(3) B.S.F

.C. (Brake specific fuel

consumption)

(4) Torque

INFORMATION

2. Performance curves 2. GENERAL

05-E4B SERIES,05-E4BG SERIES

2-23

KiSC issued 03, 2023 A
