6. Check

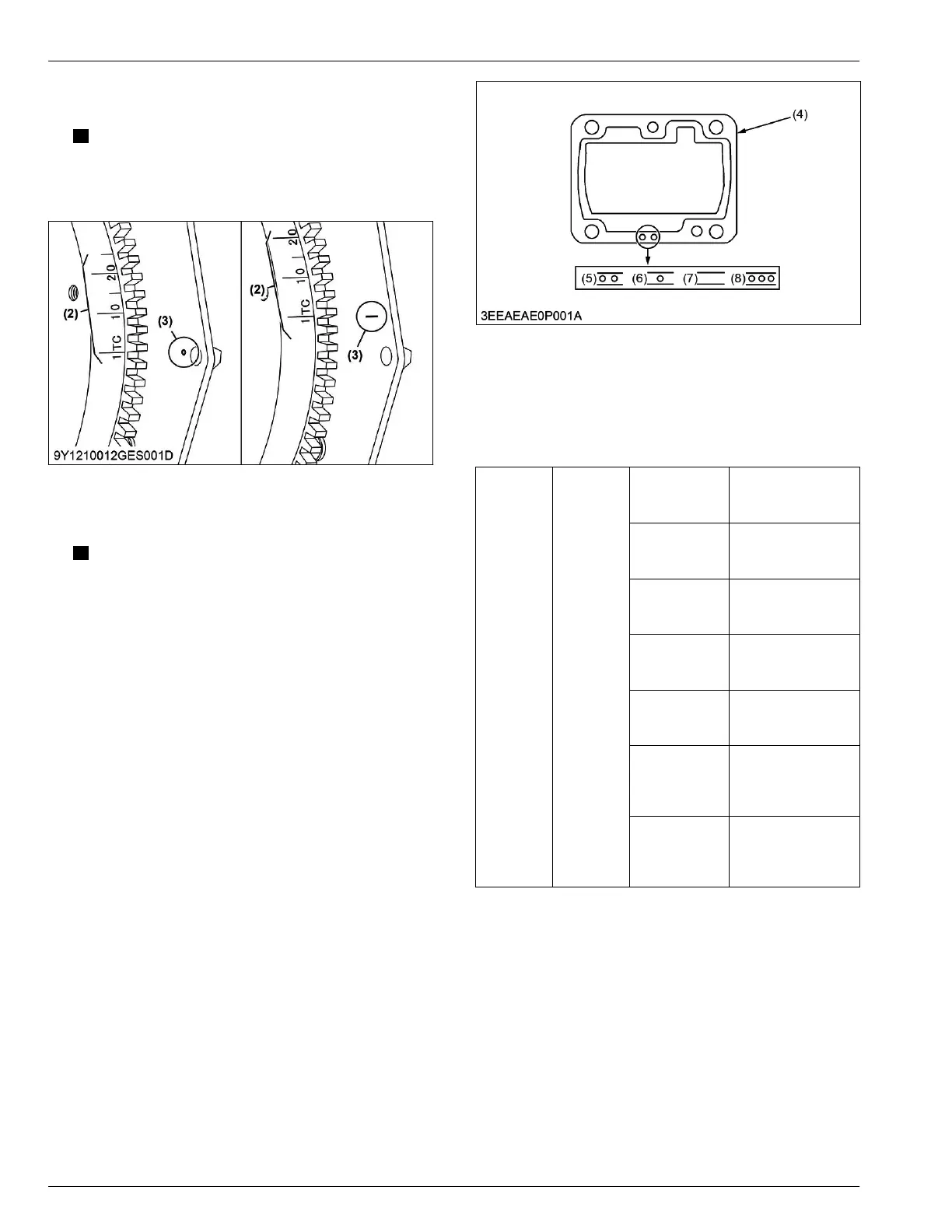

and read the timing line (2) of flywheel that
matches the alignment mark (3).
NOTE
• The flywheel has
mark "[1TC]", "[10]" and
"[20]" for the crank angle before the top
dead center of No. 1 cylinder.
(2) Timing line (3) Alignment mark
7. If injection timing is out of adjustment, readjust the
timing with shims.
NOTE
• The liquid gasket
is not required for
assembling.
• Shims are available in thickness of 0.20 mm
(0.0079 in.), 0.25 mm (0.0098 in.), 0.30 mm
(0.012 in.), 0.35 mm (0.014 in.) and 0.175 mm
(0.00689 in.).
Combine these shims for adjustments.
• Addition or reduction of a shim (0.050 mm,
0.0020 in.) delays or advances the injection
timing by approx. 0.0087 rad (0.5°).
• During disassembling and replacing the
injection pump, be sure to use the same
number of new shims with the same
thickness.
• The 0.175 mm (0.00689 in.) thick shim is
coated only on the lower face.
Therefore, do not use the 0.175 mm
(0.00689 in.) thick shim as the top shim of
the combination (injection pump side),
because this can cause oil leakage.
• Refer to the figure of the shim to check the
thicknesses of the shims.
• The injection timing might be changed by
the application.
(4) Shim (soft metal gasket
shim)
(5) Two-holes: 0.20 mm
(0.0079 in.)
T
wo-holes: 0.175 mm
(0.00689 in.)
(6) One-hole: 0.25 mm
(0.0098 in.)
(7) Without hole: 0.30 mm
(0.012 in.)
(8) Three-holes: 0.35 mm
(0.014 in.)
Injection
timing
Service
specifica-
tion
D1005-E4B
(3000 min
-1
(rpm))
0.3011 to 0.3272 rad
(17.25 to 18.75°)
before T.D.C
D1005-E4B
(3200 min
-1
(rpm))
0.3360 to
0.3621 rad (19.25 to
20.75°) before T.D.C
D1105-E4B
(3000 min
-1
(rpm))
0.301
1 to 0.3272 rad
(17.25 to 18.75°)
before T.D.C
D1305-E4B
(2600 min
-1
(rpm))
0.2662 to
0.2923 rad (17.25 to
18.75°) before T.D.C
V1505-E4B
(2300 min
-1
(rpm))
0.2313 to
0.2574 rad (13.25 to
14.75°) before T.D.C
D1005-E4BG
D1105-E4BG
(1800 min
-1
(rpm))
0.2575 to
0.2836 rad (14.75 to
16.25°) before T.D.C
D1305-E4B
V1505-E4B
(1800 min
-1
(rpm))
0.2487 to
0.2748 rad (14.25 to
15.75°) before T.D.C
4.10 Checking fuel tightness of
pump element
Tools required
• Injection pump pressure tester
1. Remove the injection pipes and glow plugs.
2.
Install the injection pump pressure tester (1) to the
injection pump.
4. ENGINE
SERVICING
4. Checking and adjusting
4-22
05-E4B SERIES,05-E4BG SERIES
KiSC issued 03, 2023 A
