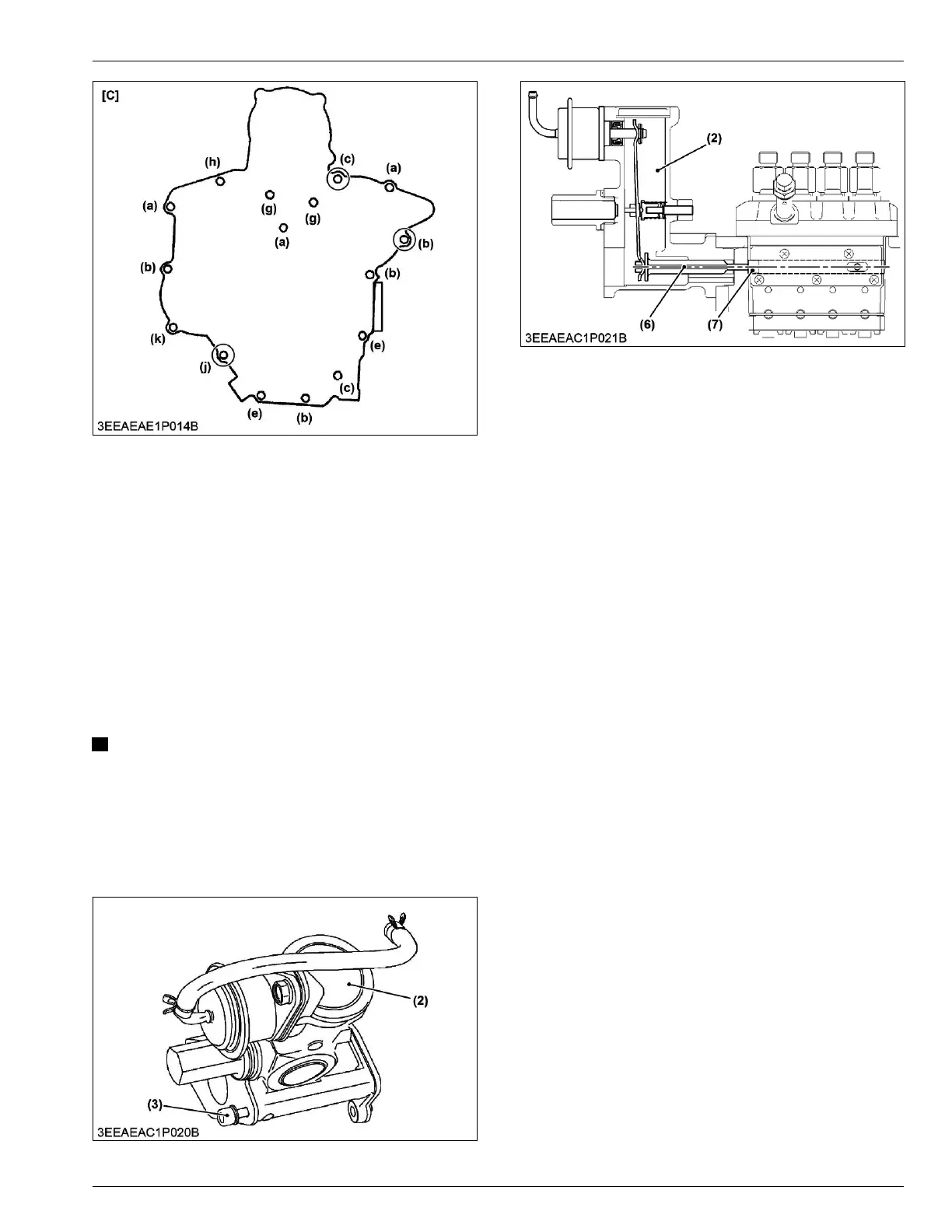

(1) Gear case
[A] Gear case for standard oil
pan
[B] Gear case for extended oil
pan
[C]
Gear case for BG type (Ex-
cept D1305-E4BG)
(a) Bolt length = 45 mm (1.8 in.)
(b) Bolt length = 50 mm (2.0 in.)
(c) Bolt length = 55 mm (2.2 in.)
(d) Bolt length = 65 mm (2.6 in.)
(e) Bolt length = 68 mm (2.7 in.)
(f) Bolt length = 70 mm (2.8 in.)
(g) Bolt length = 85 mm (3.3 in.)
(h) Nut
(j) Bolt length = 59 mm (2.3 in.)
(k) Bolt length = 82 mm (3.2 in.)
(When reassembling)
• Grease thinly to
the oil seal, and install it, ensuring
the lip does not come off.
5.16 Removing boost compensator
(equipped with R24 model)
IMPORTANT
• Use the stop
solenoid mounting bolt (3) for the
dropout prevention of boost compensator (2)
and the damage prevention of the guide (6)
when remove the boost compensator.
• The guide (6) of boost compensator and the
control rack (7) should be made the level when
you install boost compensator assembly.
(2) Boost compensator assem-
bly
(3) Stop solenoid mounting bolt
(6) Guide
(7) Control rack
1. Disconnect the hose (4).
2. Remove the stop
solenoid mounting bolt (M6 ×
87 mm) (3).
3. Remove the stop solenoid (1).
4. Install the stop solenoid mounting bolt (3) in an
original position again.
5. Remove the boost compensator mounting bolt (5).
6. Remove the boost compensator assembly (2).
SERVICING
5. Disassembling and assembling 4. ENGINE
05-E4B SERIES,05-E4BG SERIES
4-37
KiSC issued 03, 2023 A
