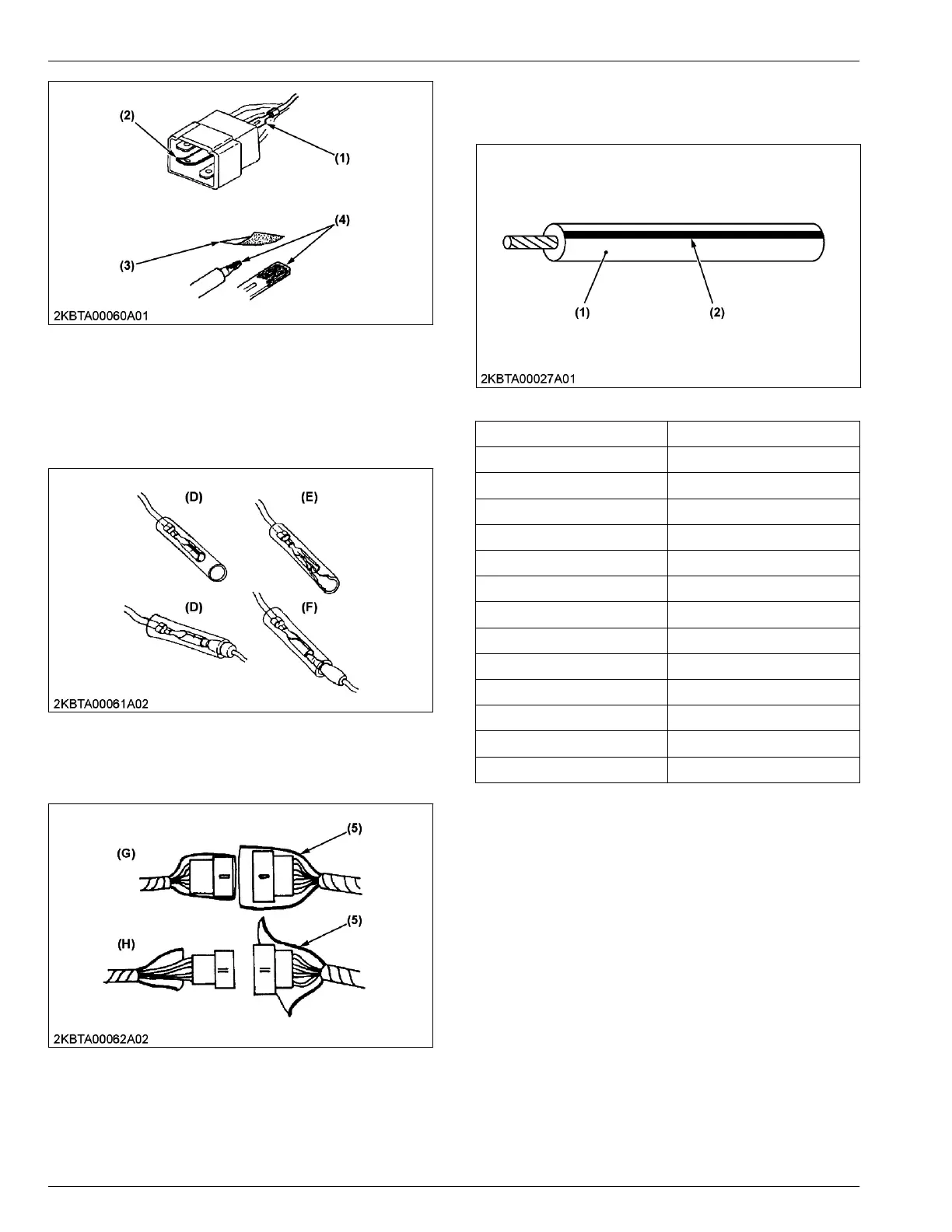

Kubota WSM 05-E4B Series User Manual

(1) Missing terminal
(2) Bent terminal
(3) Sandpaper
(4)
Rust
• Cover
the female bullet terminals and male bullet
terminals securely with the plastic covers.
•
Make
sure that the bullet terminals are secure and
connected securely to the tip.
(D) Good
(E) Bad: damaged cover
(F) Bad: poor connection
•
Cover the female connectors and male connectors
securely with the plastic covers.
(5) Cover
(G) Good
(H) Bad: damaged cover
1
1. Wiring color
• Wire colors are specified in the color codes.
(1) Wire color (2) Stripe
Wiring Colors Color code
Black B
Brown BR, Br
Green G
Gray GY, GR, Gr
Blue L
Light green LG, Lg
Orange OR, Or
Pink P
Purple PU, Pu, V
Red R
Sky blue SB, Sb
White W
Yellow Y
• This symbol of "/" shows color with stripe(s).
(An example)
W/R:
White with red stripe
12. Dispose fluids correctly
• Do
not dispose fluids on the ground, down the
drain, into
a stream, pond, or lake. Obey related
environmental protection regulations when you
dispose of oil, fuel, coolant, electrolyte, and other
dangerous materials.
2. GENERAL
GENERAL WORKING PRECAUTIONS
11. Wiring color
2-6
05-E4B SERIES,05-E4BG SERIES
KiSC issued 03, 2023 A
