B 72 mm (2.8 in.)
C 40 mm radius (1.6 in. radius)
D 10 mm (0.39 in.)
E 24 mm (0.94 in.)
F 20 mm dia. (0.79 in. dia.)
G
51.20 to 51.40 mm dia. (2.016 to 2.023 in.
dia.)
H
47.30 to 47.50 mm dia. (1.863 to 1.870 in.
dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.30 mm (0.012 in.)
[Press fit]
A 135 mm (5.31 in.)
B 72 mm (2.8 in.)
C 40 mm radius (1.6 in. radius)
D 10 mm (0.39 in.)
E 24 mm (0.94 in.)
F 20 mm dia. (0.79 in. dia.)
G 68 mm dia. (2.7 in. dia.)
H
47.30 to 47.50 mm dia. (1.863 to 1.870 in.
dia.)
C1 Chamfer 1.0 mm (0.039 in.)
C2 Chamfer 2.0 mm (0.079 in.)
C0.3 Chamfer 0.30 mm (0.012 in.)

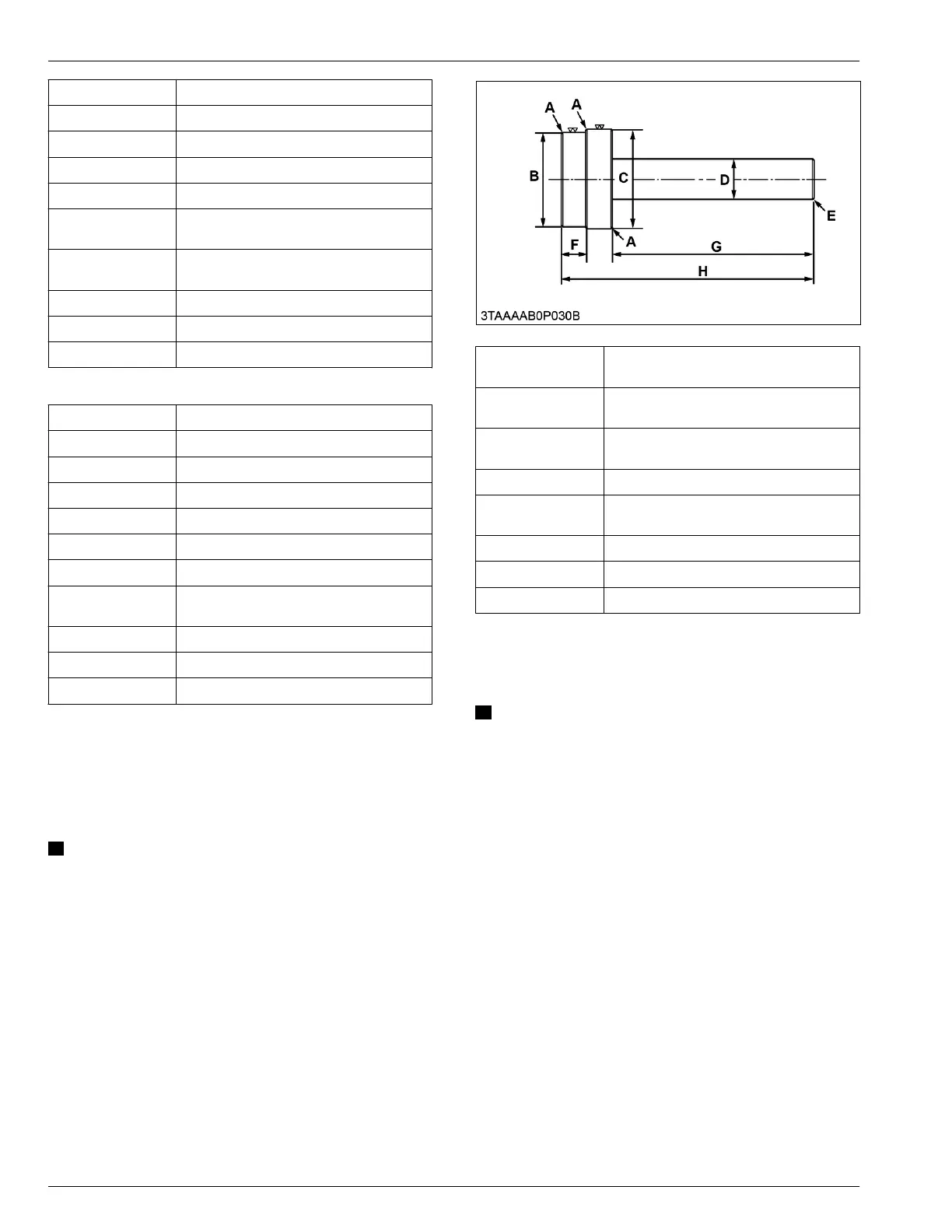

7. Governor gear holder
bushing replacing tool
Use to press out and to press fit the governor gear
holder bushing.
NOTE
• The special tools
are not provided, so make
them referring to the figure.
A
C1:
Chamfer 1.0 mm (0.039 in.)
B
73.90 to 74.00 mm dia. (2.910 to 2.913 in.
dia.)
C
69.80 to 69.90 mm dia. (2.748 to 2.751 in.
dia.)
D 30 mm dia. (1.2 in. dia.)
E
C2:
Chamfer 2.0 mm (0.079 in.)
F 18 mm (0.71 in.)
G 150 mm (5.91 in.)
H 188 mm (7.40 in.)
8. Crank sleeve setter
Use to fix the crankshaft sleeve.
NOTE
• The special tools
are not provided, so make
them referring to the figure.
2. GENERAL
SPECIAL TOOLS
7. Governor gear holder bushing replacing tool
2-34
05-E4B SERIES,05-E4BG SERIES
KiSC issued 03, 2023 A
