Kubota WSM 05-E4B Series User Manual

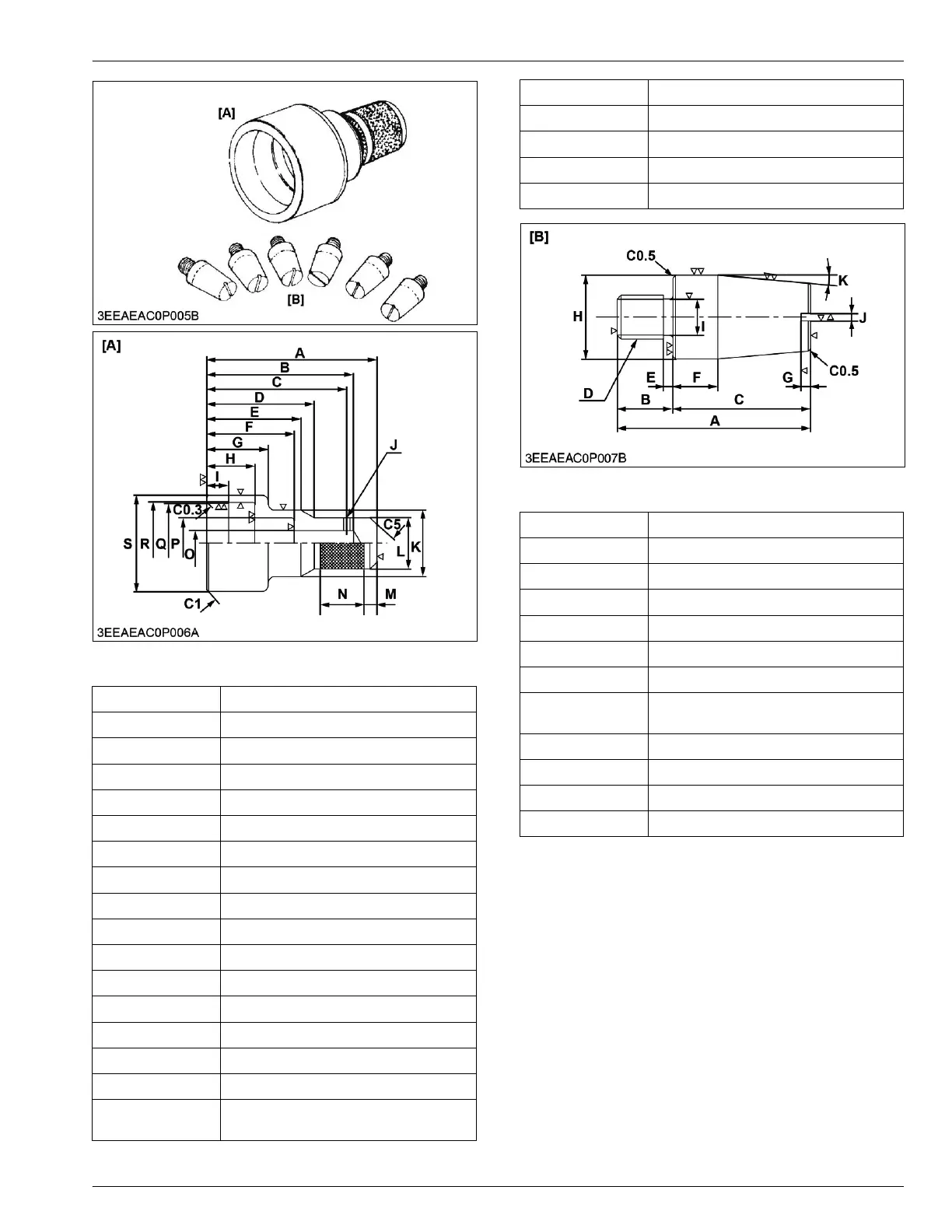

[A] Auxiliary socket for pushing
A 130 mm (5.12 in.)
B 112 mm (4.41 in.)
C 107 mm (4.21 in.)
D 82 mm (3.2 in.)
E 72 mm (2.8 in.)
F 67 mm (2.6 in.)
G 47 mm (1.8 in.)
H 36.00 to 36.20 mm (1.418 to 1.425 in.)
I 17 mm (0.67 in.)
J 5.0 mm dia. (0.20 in. dia.)
K 52 mm dia. (2.0 in. dia.)
L 40 mm dia. (1.6 in. dia.)
M 10 mm (0.39 in.)
N 33 mm (1.3 in.)
O 20 mm dia. (0.79 in. dia.)
P 40 mm dia. (1.6 in. dia.)
Q
72.10 to 72.15 mm dia. (2.839 to 2.840 in.
dia.)
(Continued)
R 73 mm dia. (2.9 in. dia.)
S 83 mm dia. (3.3 in. dia.)
C0.3 Chamfer 0.30 mm (0.012 in.)
C1 Chamfer 1.0 mm (0.039 in.)
C5 Chamfer 5.0 mm (0.20 in.)
[B] Sleeve guide
A 42 mm (1.7 in.)
B 12 mm (0.47 in.)
C 30 mm (1.2 in.)
D M10 × Pitch 1.25
E 2.0 mm (0.079 in.)
F 10 mm (0.39 in.)
G 2.0 mm (0.079 in.)
H
17.90 to 17.95 mm dia. (0.7048 to
0.7066 in. dia.)
I 8.0 mm dia. (0.31 in. dia.)
J 1.8 mm (0.071 in.)
K 0.09 rad (5°)
C0.5 Chamfer 0.5 mm (0.02 in.)
SPECIAL TOOLS
2. GENERAL
05-E4B SERIES,05-E4BG SERIES
2-35
KiSC issued 03, 2023 A
