1.4 Boost compensator
1.4.1 Function of boost compensator
Boost compensator is the device that reduces black smoke during the engine startup and acceleration.
The rod of
actuator (2) is pushed out by the rise of boost pressure, and the plate (3) moves in the direction of the fuel
increase around the fulcrum "A".

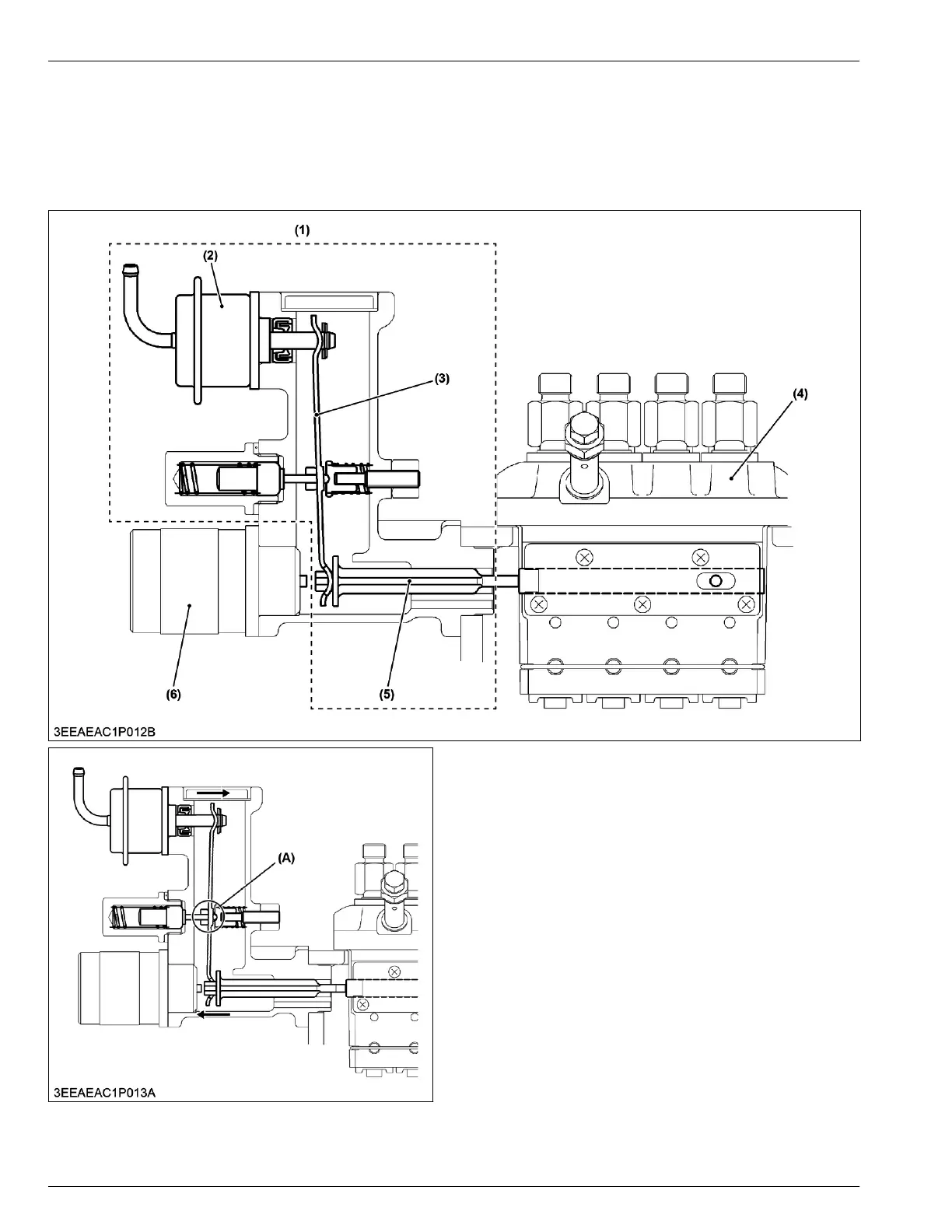

(1) Boost compensator assembly
(2) Actuator
(3) Plate
(4) Injection pump assembly
(5) Guide
(6) Stop solenoid
(A) Fulcrum
