2KL/2KK
1-3-64
U991
Checking the scanner count
Description
Displays the scanner operation count.
Purpose
To check the status of use of the scanner.
Method
1. Press the start key.
2. Select the item using the exposure adjustment keys.
Completion
Press the stop/clear key. The screen for selecting a maintenance item No. is displayed.
U993
Outputting a VTC-PG pattern
Description
Selects and outputs a VTC-PG pattern created in the machine.
Purpose
When performing respective image printing adjustments, used to check the machine status apart from that of
the scanner with a non-scanned output VTC-PG pattern.
Method
1. Press the start key.
2. Select the VTC-PG pattern to be output using the exposure adjustment keys.
3. Press the interrupt key.
4. Press the start key. A VTC-PG pattern is output.
Completion
Press the stop/clear key. The screen for selecting a maintenance item No. is displayed.
Maintenance
item No.
Description
Exposure indicator Copy quantity display (count value)
Exp. 1 First 3 digits of the scanner count
Exp. 2 Last 3 digits of the scanner count

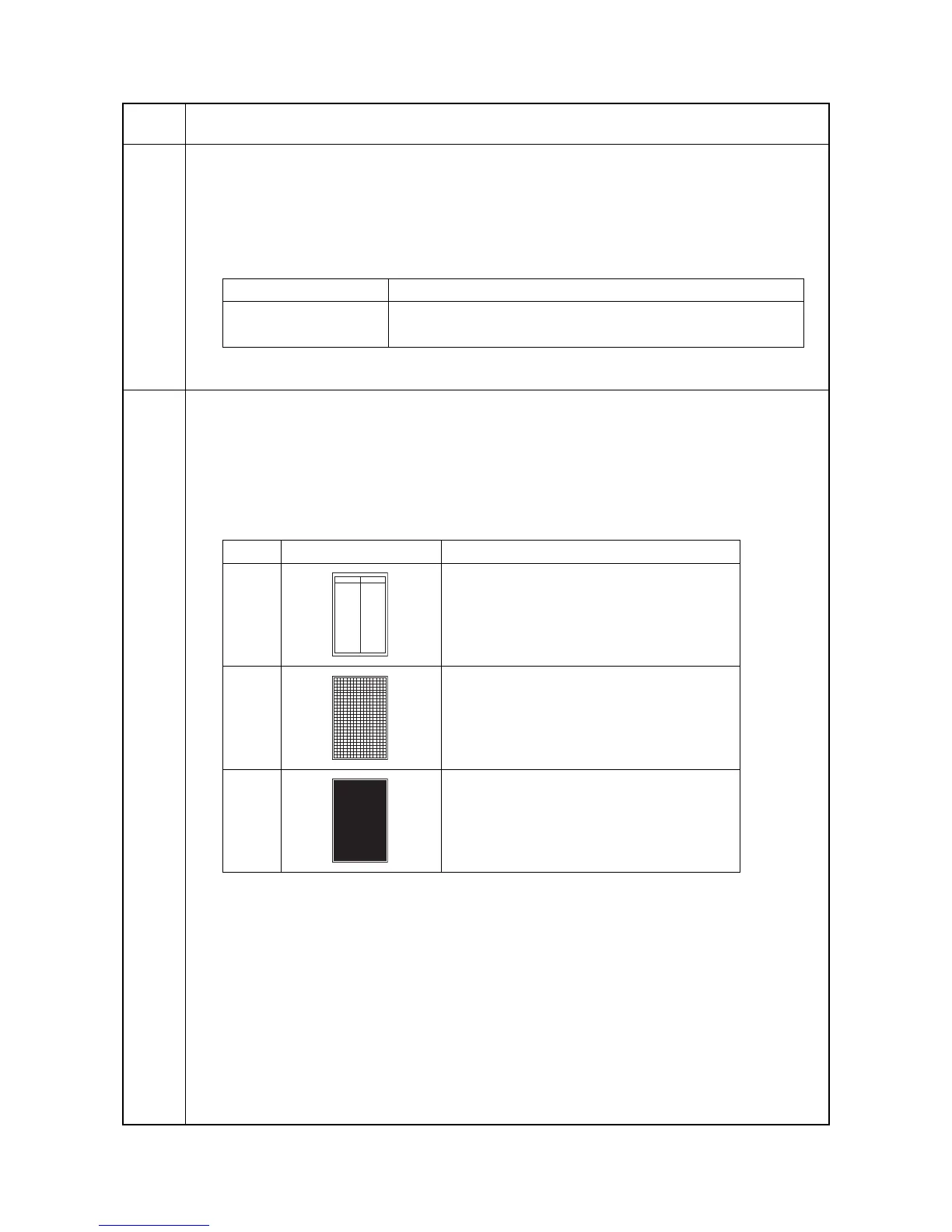

Display PG pattern to be output Purpose
0 Leading edge registration adjustment
Center line adjustment
Margin adjustment
1 Lateral squareness adjustment
Magnification adjustment
2 Checking the fuser performance (fuser pressure)
To Next Page
