2KL/2KK
1-5-53
1-5-8 Others

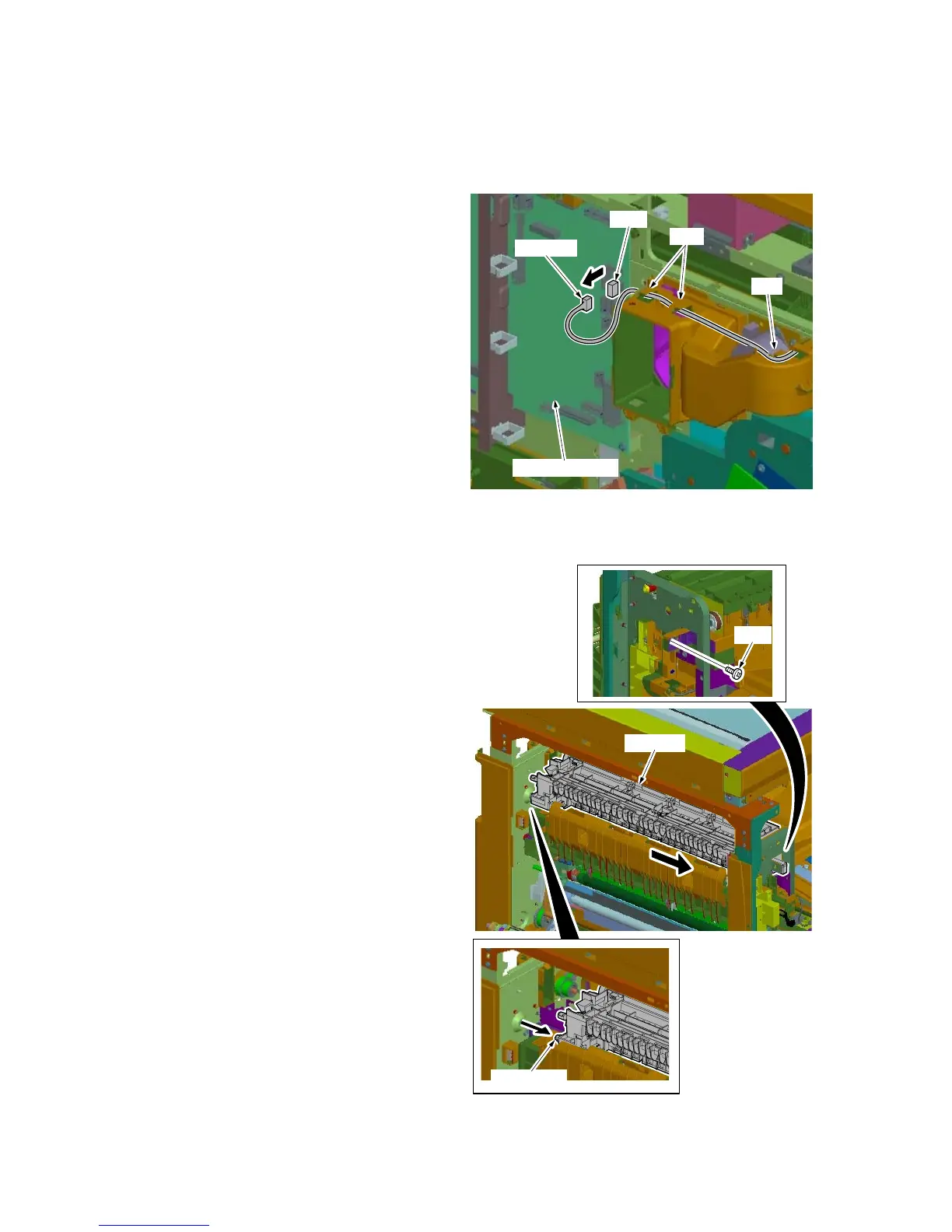

(1) Detaching and refitting the eject unit
Follow the procedure below to replace the eject unit.
Procedure
1. Remove the rear cover (see page 1-5-6).
2. Remove YC14 connector of the main/engine
PWB.
3. Remove the wire of the connector from the
ribs.
Figure 1-5-88
4. Remove the front left cover (see page 1-5-
40).
5. Remove the left middle cover (see page 1-5-
19).
6. Remove the eject cover (see page 1-5-30).
7. Remove the screw. Slide the eject unit
toward the front side and pull out the
inserted part section.
Figure 1-5-89
Main/engine PWB
YC14
Ribs
Rib
Connector
Screw
Eject unit
Inserted part
To Next Page
