(3) Detaching and refitting the main charger unit
Follow the procedure below to replace the main charger unit.
Procedure
1. Open the front cover and remove the waste
toner box.
2. While lifting the main charger unit toward the
upper right, remove the unit.
3. While pressing the main charger release
lever in the direction indicated by the arrow
at the removal stopper position to release
the removal stopper, remove the main
charger unit from the machine.
4. Replace the main charger unit and refit all
the removed parts.

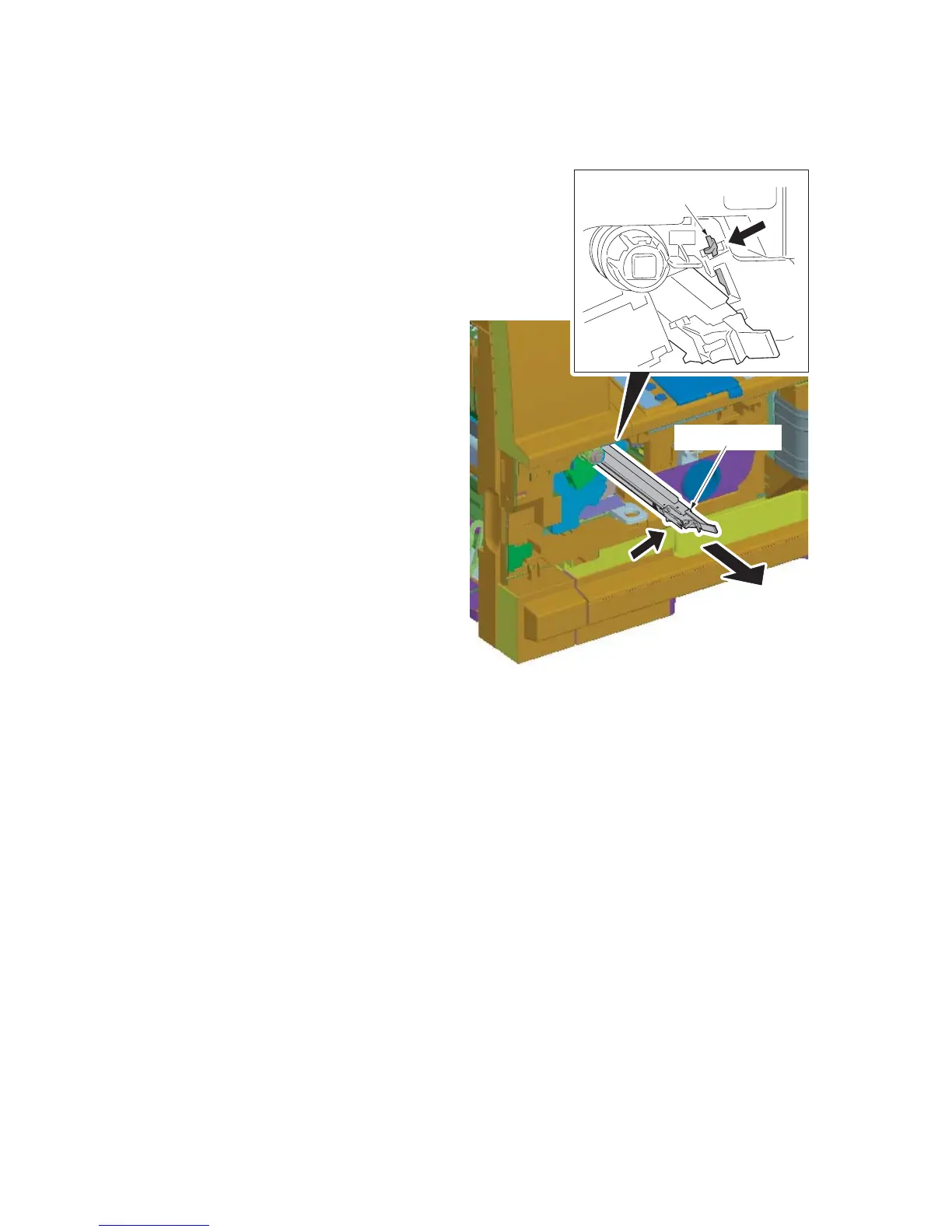

Figure 1-5-61
Main charger unit
Main charger
release lever
