Kyocera TASKalfa 220 - Fitting the Scanner Wires

2KL/2KK
1-5-22
(2-2) Fitting the scanner wires
NOTE
When fitting the wires, be sure to use those specified below.
Machine front: (P/N: 2C91236), gray
Machine rear: (P/N: 2C91235), black
Fitting requires the following tools
Two frame securing tools (P/N 302C968310)
Two scanner wire stoppers (P/N 3596811)
Procedure
1. Remove the rear cover.

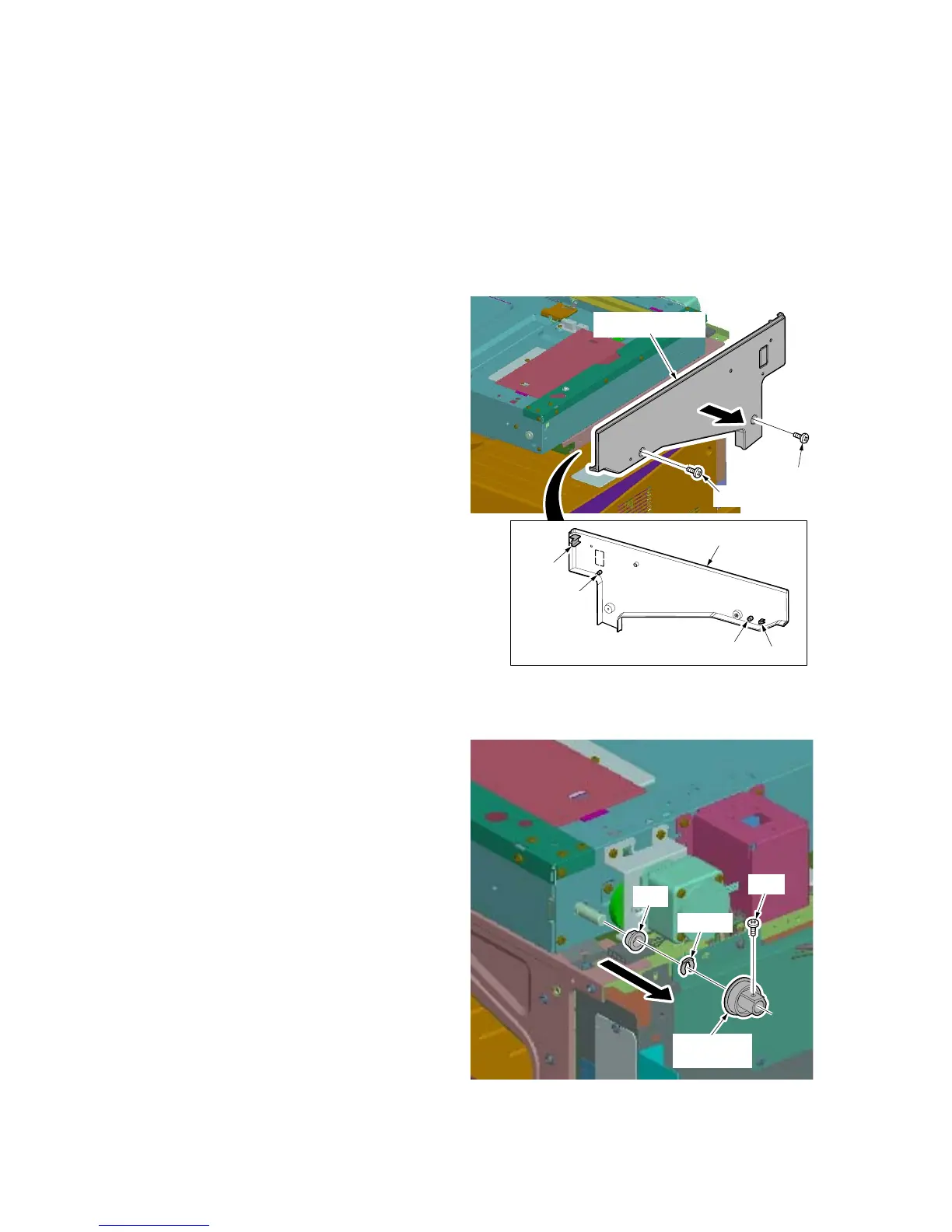

Figure 1-5-38
2. Remove the screw and remove the scanner
wire drum gear from the rear side of the
machine.
3. Remove the stop ring and bush.
Figure 1-5-39
Right middle cover
Right middle cover
Screw
Screw
Hook
Hook
Both
Both
Bush
Stop ring
Screw
Scanner wire
drum gear
