(6) Detaching and refitting the right registration roller
Follow the procedure below to replace the right registration roller.
Procedure
1. Remove the drum unit (see page 1-5-34).
2. Remove the rear cover (see page 1-5-6).
3. Remove the connector and remove the reg-
istration clutch.

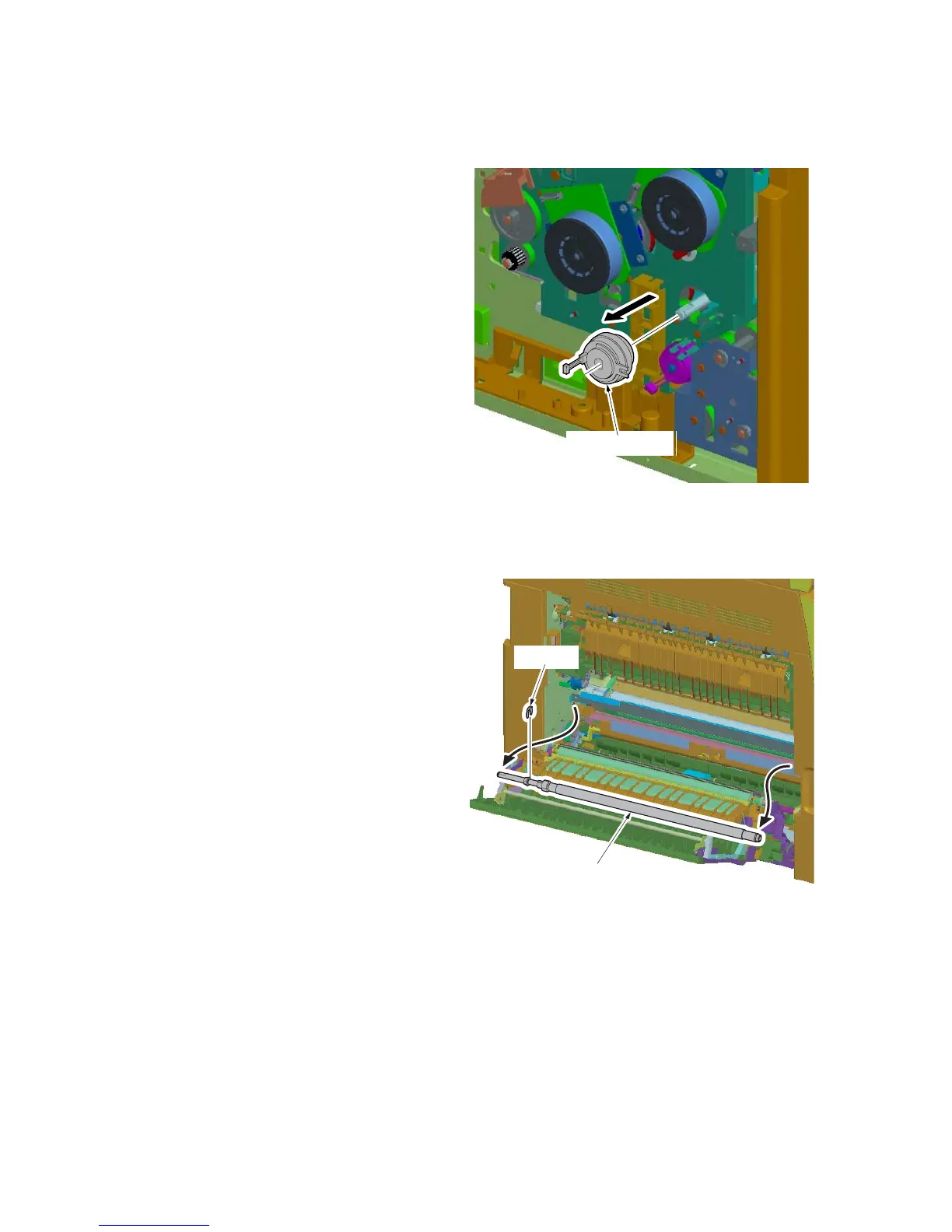

Figure 1-5-24
4. Remove the stop ring.
5. Remove the right registration roller from the
machine.
Figure 1-5-25
Registration clutch
Right registration roller
Stop ring
