2KL/2KK
2-2-5
(4) Others

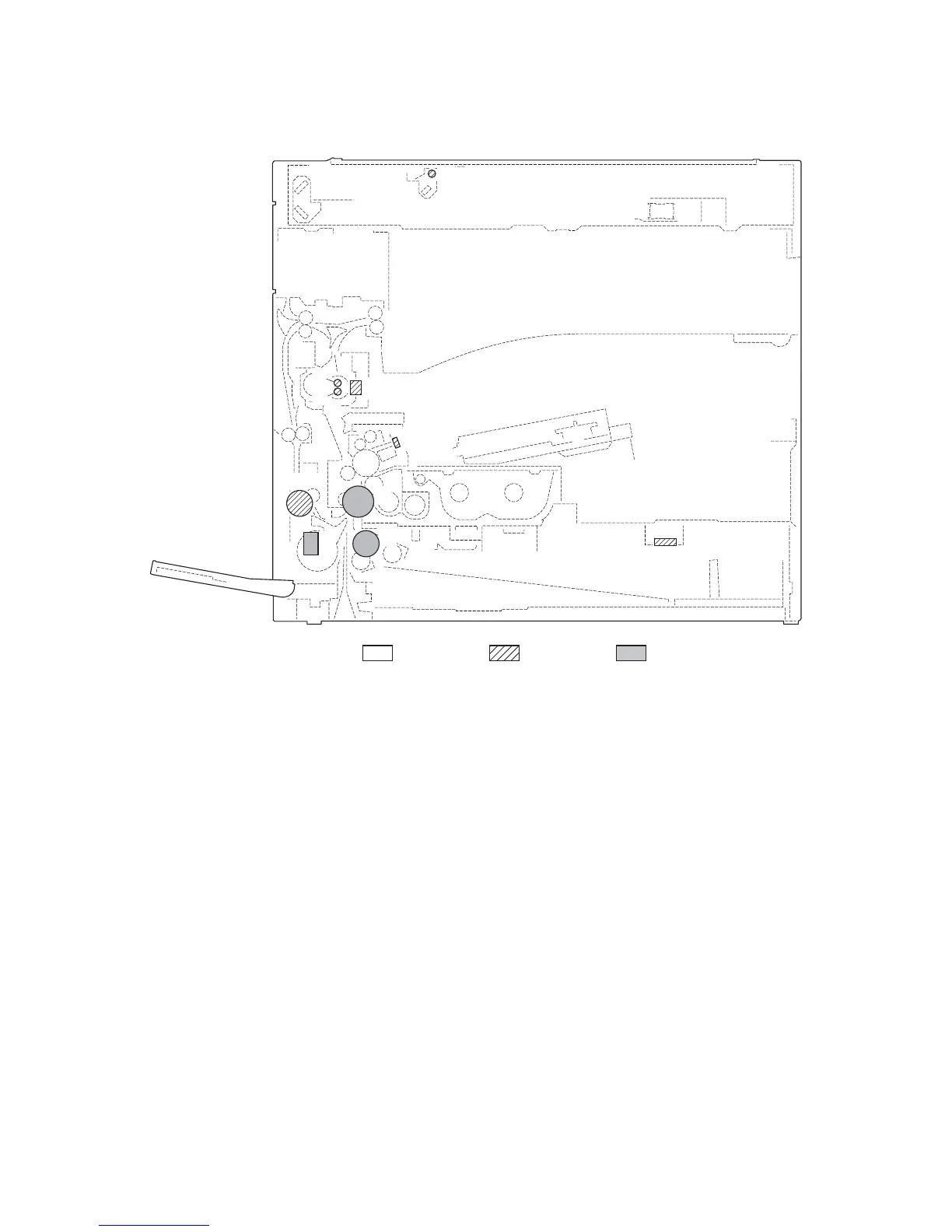

Figure 2-2-4 Other electrical components
1. Paper feed clutch (PFCL) ............................ Primary paper feed from the cassette.
2. Registration clutch (RCL)............................. Secondary paper feed.
3. MP solenoid (MPSOL) ................................. Primary paper feed from the MP tray.
4. Exposure lamp (EL) ..................................... Exposes originals.
5. Cleaning lamp (CL) ...................................... Removes residual charge from the drum surface.
6. Fuser heater M (FH-M) ................................ Heats the heat roller.
7. Fuser heater S (FH-S) ................................. Heats the heat roller.
8. Fuser thermostat 1 (FTS1)........................... Prevents overheating in the fuser section.
9. Fuser thermostat 2 (FTS2)........................... Prevents overheating in the fuser section.
10. Cassette heater (CH) ................................... Dehumidifies the cassette section.
11. Duplex feed clutch (DUPFCL)...................... Controls the drive of the duplex feed roller.
*: Option
1
5
4
2
3
6
7
8, 9
10
11
Machine front
Machine inside
Machine rear
