2KL/2KK
2-1-7
2-1-3 Drum section
The drum section consists of the drum, main charger section, cleaning section and cleaning lamp.
The main charger section consists of main charger wire and main charger grid, and the drum is charged by a high voltage
applied to the main charger wire.
The cleaning section consists of the cleaning blade and cleaning roller that removes residual toner from the drum surface
after the transfer process, and the cleaning spiral that carries the residual toner back to the waste toner box.
The cleaning lamp (CL) consists of LEDs which remove residual charge from the drum surface.

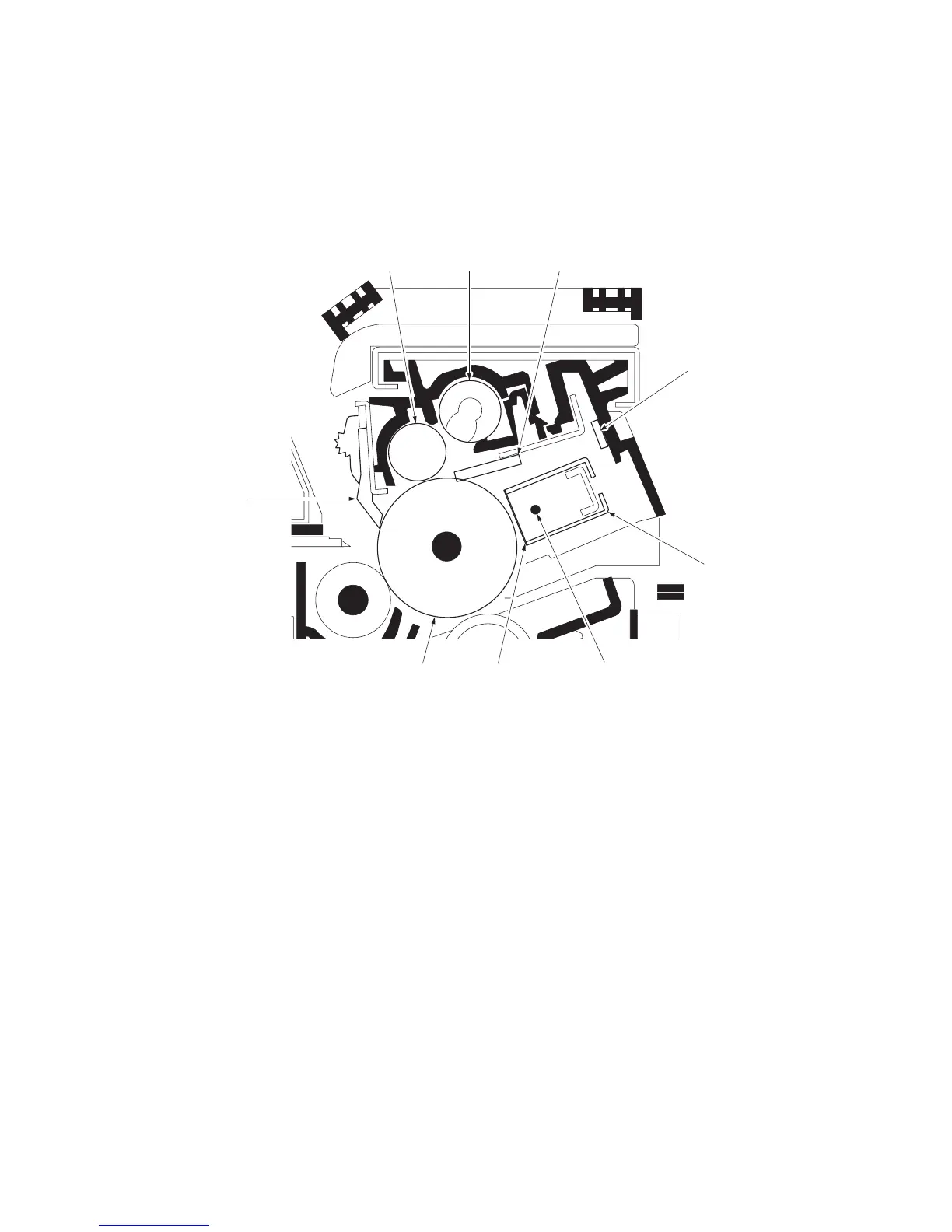

Figure 2-1-7 Drum section
2
6
7 8
9
3
1
5
4
(1) Drum
(2) Drum separation claws
(3) Main charger unit
(4) Main charger wire
(5) Main charger grid
(6) Cleaning roller
(7) Cleaning spiral
(8) Cleaning blade
(9) Cleaning lamp (CL)
