2KL/2KK
2-1-9
2-1-4 Developing section
The developing section consists of the developing unit and the toner container.
The developing unit consists of the developing sleeve where a magnetic brush is formed, the magnetic toner blade and
the developing spirals that agitate the toner.
Also, the toner container sensor (TCS) checks whether or not toner remains in the toner container.

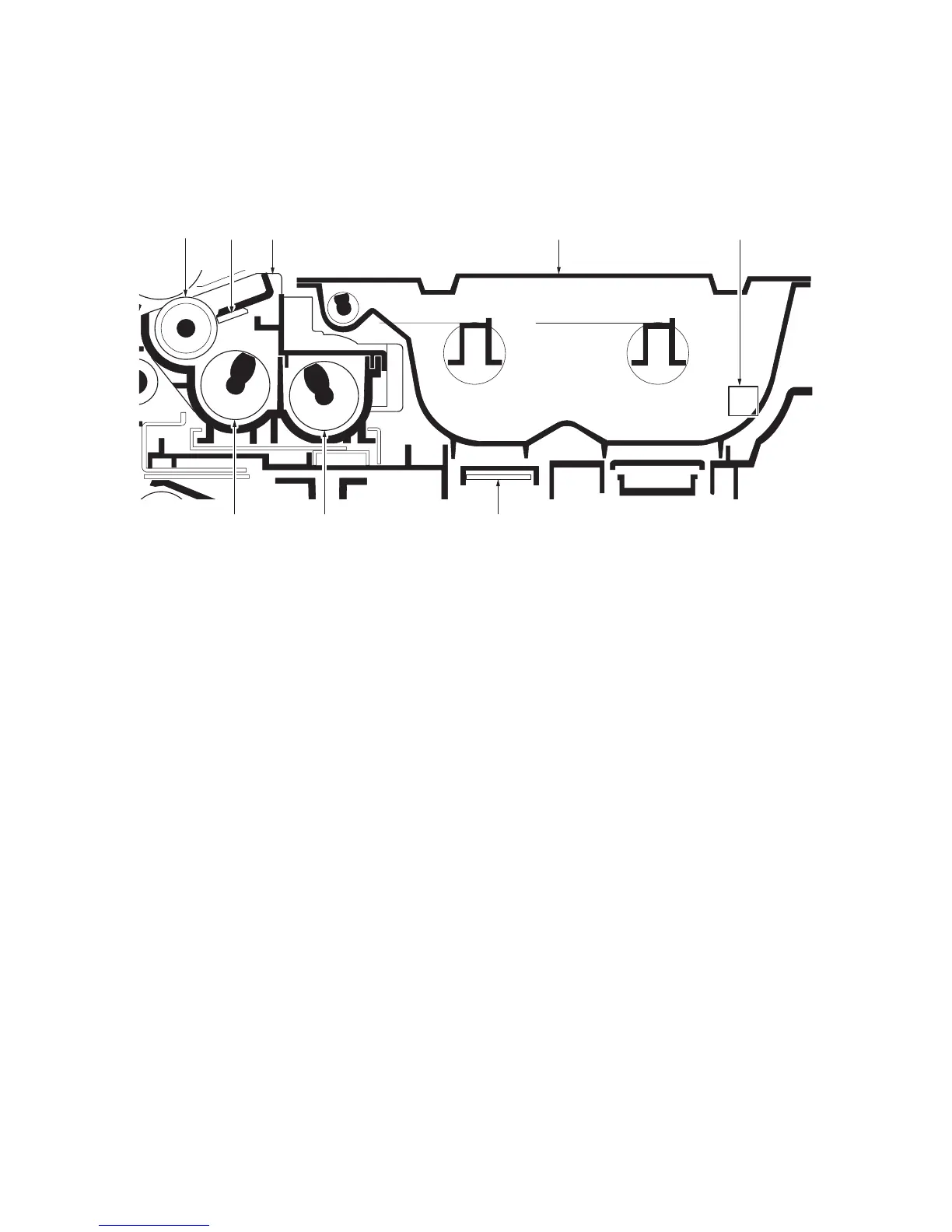

Figure 2-1-9 Developing section
2
4
5 7
3 1 6 8
(1) Developing unit
(2) Developing sleeve
(3) Magnetic toner blade
(4) Left developing spiral
(5) Right developing spiral
(6) Toner container
(7) Toner container sensor (TCS)
(8) Toner container detection switch (TCDSW)
