2KL/2KK
1-5-42
(2) Detaching and refitting the press roller
Follow the procedure below to replace the press roller.
Procedure
1. Remove the fuser unit (see page 1-5-40).
2. Remove two screws and open the fuser unit.
3. Separate the right and left fuser unit.

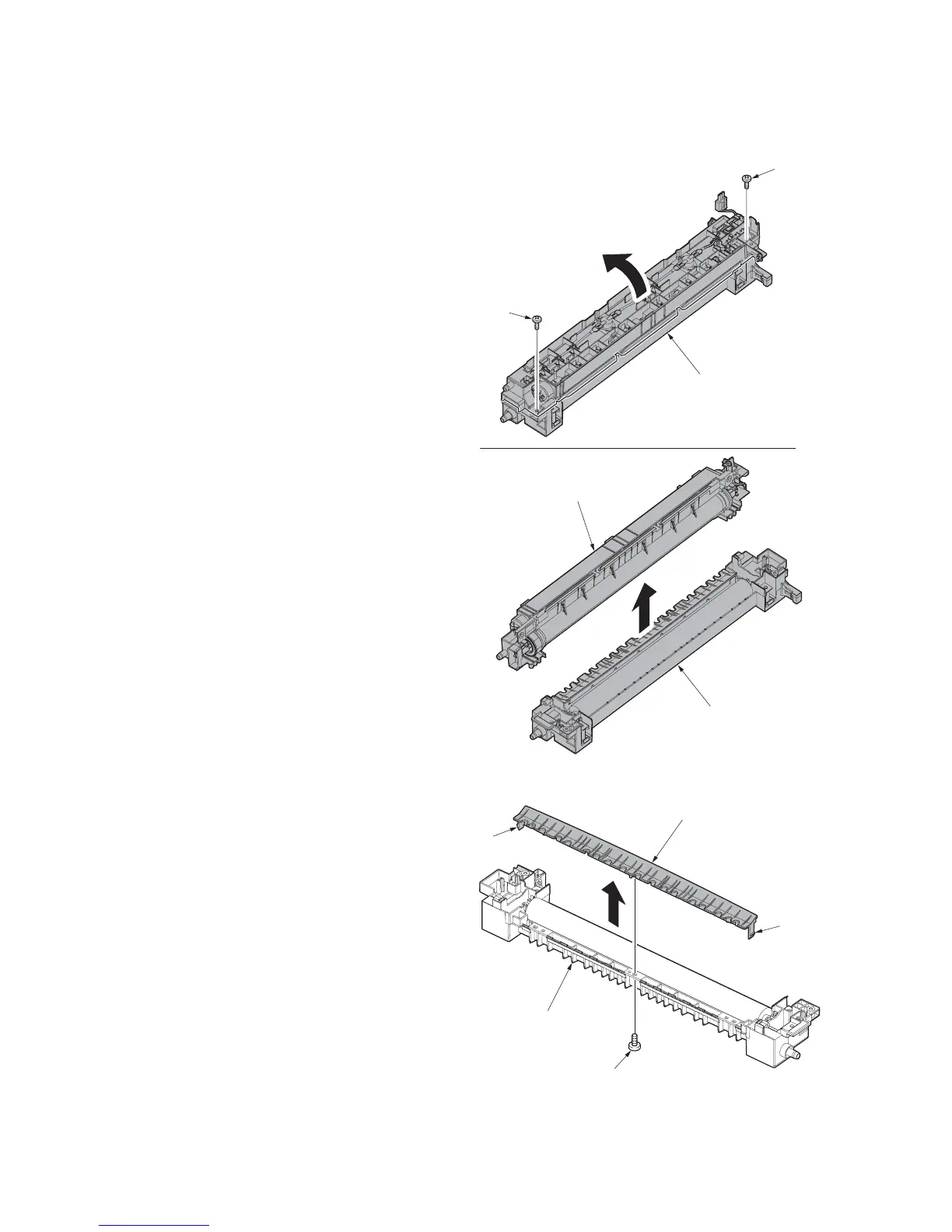

Figure 1-5-69
4. Remove the screw and release two hooks
and then remove the press roller guide from
the left fuser unit.
Figure 1-5-70
Right fuser unit
Left fuser unit
Fuser unit
Screw
Screw
Press roller guide
Hook
Hook
Screw
Left fuser unit
To Next Page
